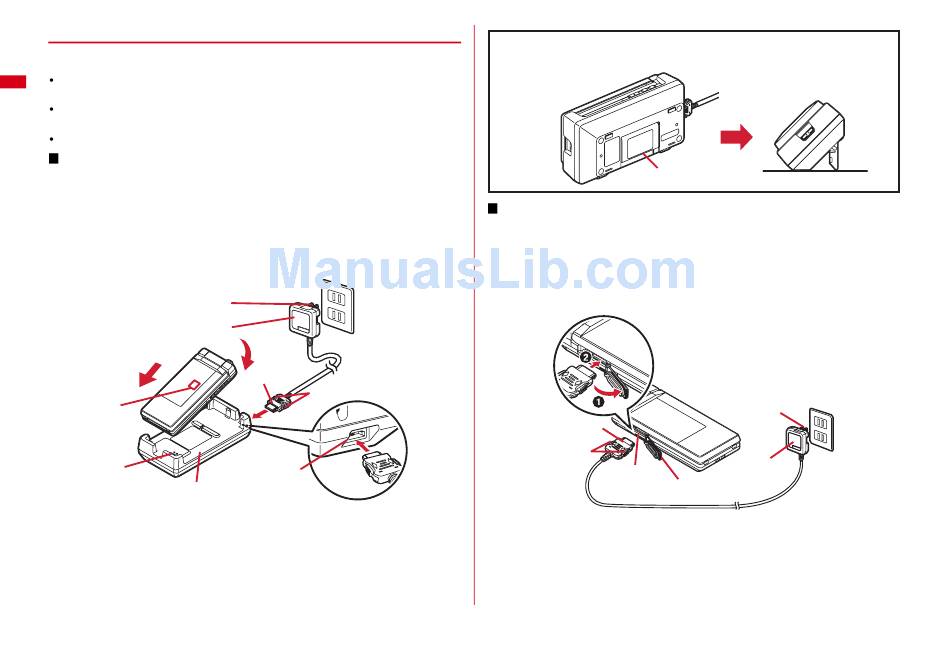

Charging using AC adapter or Desktop holder
Read the respective instruction manual when using the optional FOMA AC adapter,
DC adapter or Desktop Holder.
It is recommended that Desktop Holder be used for charging to prevent water
seepage through external connection jack.
The battery pack cannot be charged without FOMA terminal. When charging the
battery pack, install it to FOMA terminal.
FOMA terminal can be charged under any usage style.
Using desktop holder and AC adapter in combination for charging
a Insert the AC adapter to the desktop holder, with the arrow on the AC adapter's
connector upward.
b Unfold the AC adapter's power plug and insert it into a 100V AC outlet.
c With FOMA terminal folded or in flip style, connect the charging terminal of
FOMA terminal with the charging jack of Desktop Holder (a), and set FOMA
terminal in the direction of the arrow (b) until it clicks.
d After charging is completed, hold Desktop Holder and remove FOMA terminal.
Power plug
AC adapter
a
Light
Charging jack
Desktop holder
52
Before Using the Handset
100V AC outlet
b
Connector
Release button
Insert at the
back side
Using desktop holder standing vertically
When pulling out the stand at the back side of desktop holder, you can use desktop
holder standing vertically.
Stand
Charging the battery using AC adapter only
a Open jack cap (a) of FOMA terminal, hold the connector horizontally with the
arrow side upward and insert it to the jack. (b)
b Unfold the power plug and insert it into a 100V AC outlet.
c When charging is over, pull out the power plug from the outlet, and pull out from
FOMA terminal horizontally while pressing the release buttons on both sides of
the connector.
Connector
Release
button
External
connection
jack
100V AC
outlet
Power plug
AC adapter
Jack cap
