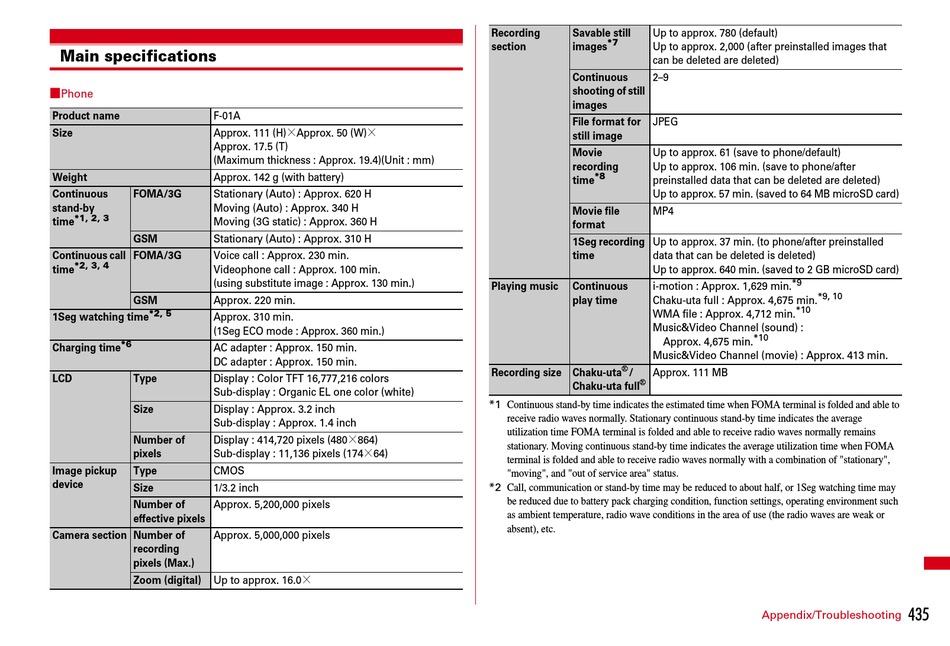

Main specifications

Phone
Product name F-01A
Size Approx. 111 (H)
Approx. 17.5 (T)
(Maximum thickness : Approx. 19.4)(Unit : mm)
Weight Approx. 142 g (with battery)
Continuous FOMA/3G Stationary (Auto) : Approx. 620 H
stand-by Moving (Auto) : Approx. 340 H
*1, 2, 3
time Moving (3G static) : Approx. 360 H
GSM Stationary (Auto) : Approx. 310 H
Continuous call FOMA/3G Voice call : Approx. 230 min.
*2, 3, 4
time Videophone call : Approx. 100 min.
(using substitute image : Approx. 130 min.)
GSM Approx. 220 min.
*2, 5
1Seg watching time Approx. 310 min.
(1Seg ECO mode : Approx. 360 min.)
*6
Charging time AC adapter : Approx. 150 min.
DC adapter : Approx. 150 min.
LCD Type Display : Color TFT 16,777,216 colors
Sub-display : Organic EL one color (white)
Size Display : Approx. 3.2 inch
Sub-display : Approx. 1.4 inch
Number of Display : 414,720 pixels (480
pixels Sub-display : 11,136 pixels (174
Image pickup Type CMOS
device
Size 1/3.2 inch
Number of Approx. 5,200,000 pixels
effective pixels
Camera section Number of Approx. 5,000,000 pixels
recording
pixels (Max.)
Zoom (digital) Up to approx. 16.0
× ×
Approx. 50 (W)
×
864)
×
64)
×
Recording Savable still Up to approx. 780 (default)
*7
section images Up to approx. 2,000 (after preinstalled images that
can be deleted are deleted)
Continuous 2–9
shooting of still
images
File format for JPEG
still image
Movie Up to approx. 61 (save to phone/default)
recording Up to approx. 106 min. (save to phone/after
*8
time preinstalled data that can be deleted are deleted)
Up to approx. 57 min. (saved to 64 MB microSD card)
Movie file MP4
format
1Seg recording Up to approx. 37 min. (to phone/after preinstalled
time data that can be deleted is deleted)
Up to approx. 640 min. (saved to 2 GB microSD card)
Playing music Continuous i-motion : Approx. 1,629 min.
play time Chaku-uta full : Approx. 4,675 min.
WMA file : Approx. 4,712 min.
Music&Video Channel (sound) :
Approx. 4,675 min.
Music&Video Channel (movie) : Approx. 413 min.

Recording size Chaku-uta / Approx. 111 MB

Chaku-uta full
*1 Continuous stand-by time indicates the estimated time when FOMA terminal is folded and able to
receive radio waves normally. Stationary continuous stand-by time indicates the average
utilization time FOMA terminal is folded and able to receive radio waves normally remains
stationary. Moving continuous stand-by time indicates the average utilization time when FOMA
terminal is folded and able to receive radio waves normally with a combination of "stationary",
"moving", and "out of service area" status.
*2 Call, communication or stand-by time may be reduced to about half, or 1Seg watching time may
be reduced due to battery pack charging condition, function settings, operating environment such
as ambient temperature, radio wave conditions in the area of use (the radio waves are weak or
absent), etc.
*9
*9, 10
*10
*10
435
Appendix/Troubleshooting
