5.4 Monitoring

You can start I/O monitoring manually or by schedule.
[Manual] Activates I/O monitoring. Select Manual and select Input. Click the Start button to
apply the settings.
Input: Manually starts I/O monitoring. When the sensor input is triggered, its associated
output will be activated for alerting, the GV-IP Speed Dome will be activated to send video
to Center V2, and/or direct the GV-IP Speed Dome to a preset point. To configure the
input and output settings, see 5.2.1 Input / Output Settings.
[Schedule] The system starts I/O monitoring according to the schedule you have set. For
schedule settings, see 5.5 Recording Schedule.
88

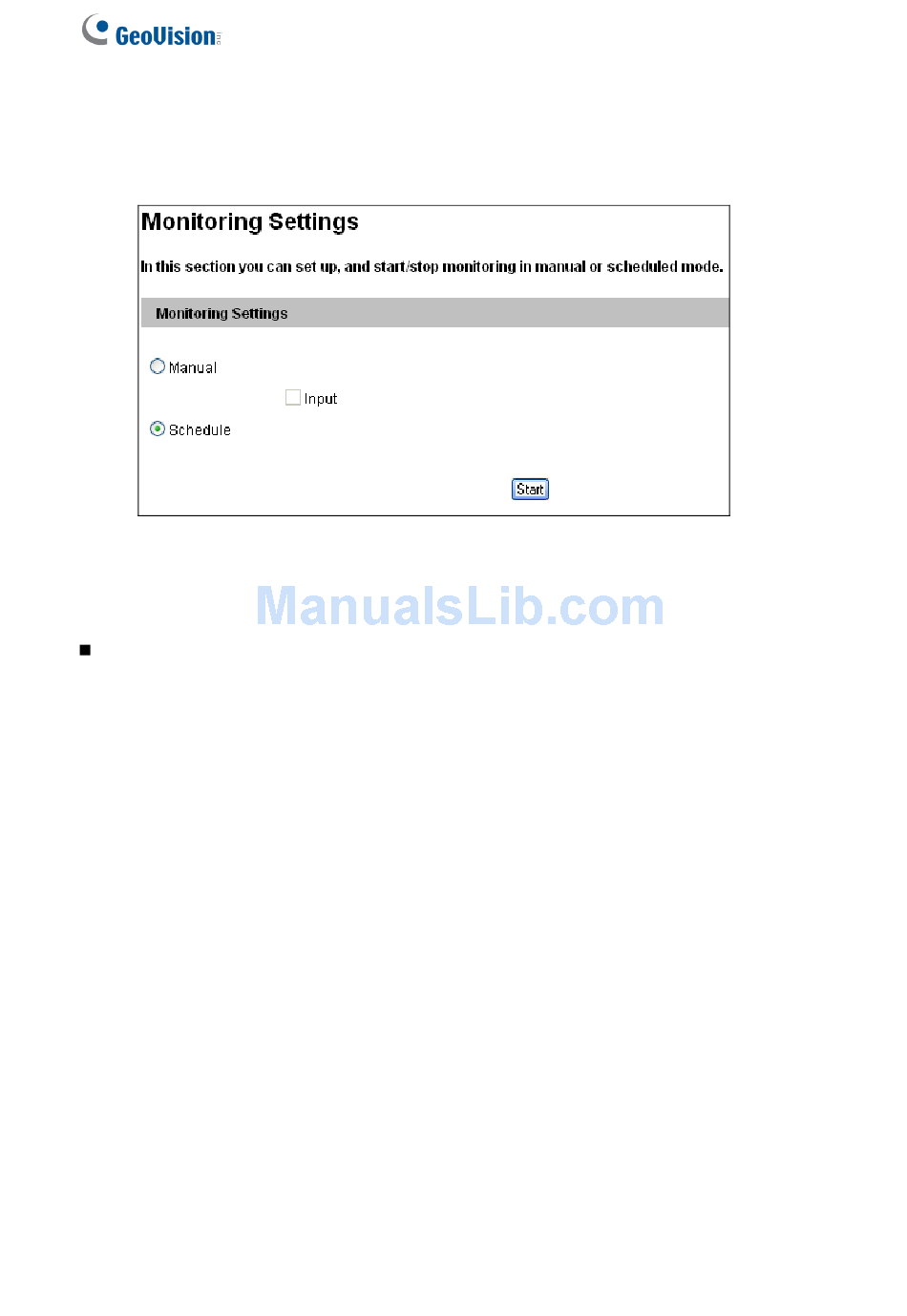

Figure 5-13
