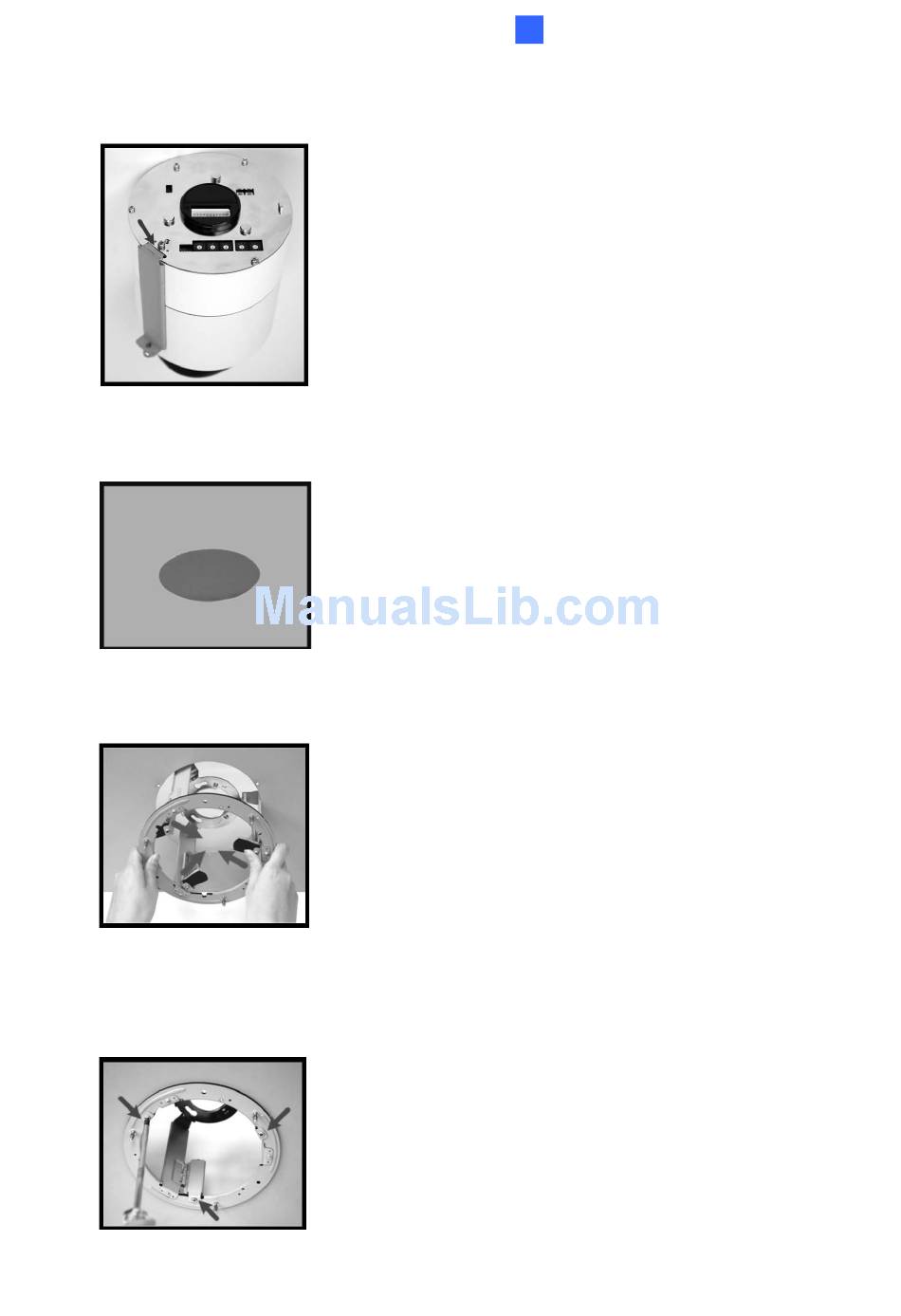

2. Attach the separated wing to the Dome body as shown in the picture below.
Figure 2-10
3. Place the Red Sticker on the ceiling plate, and cut the circle part out of the ceiling.
Figure 2-11
4. Put up the T-Bar Ceiling Mount into the ceiling opening.
Figure 2-12
5. Rotate T-Bar wings of the hinge to fix the T-Bar at the edge of the ceiling opening.
6. Tighten the screws, and the T-Bar wings will attach to the ceiling.
Figure 2-13
