1.7 22-Pin Data Cable

With the 22-pin Data Cable, you can connect the power, microphone, speaker, TV monitor

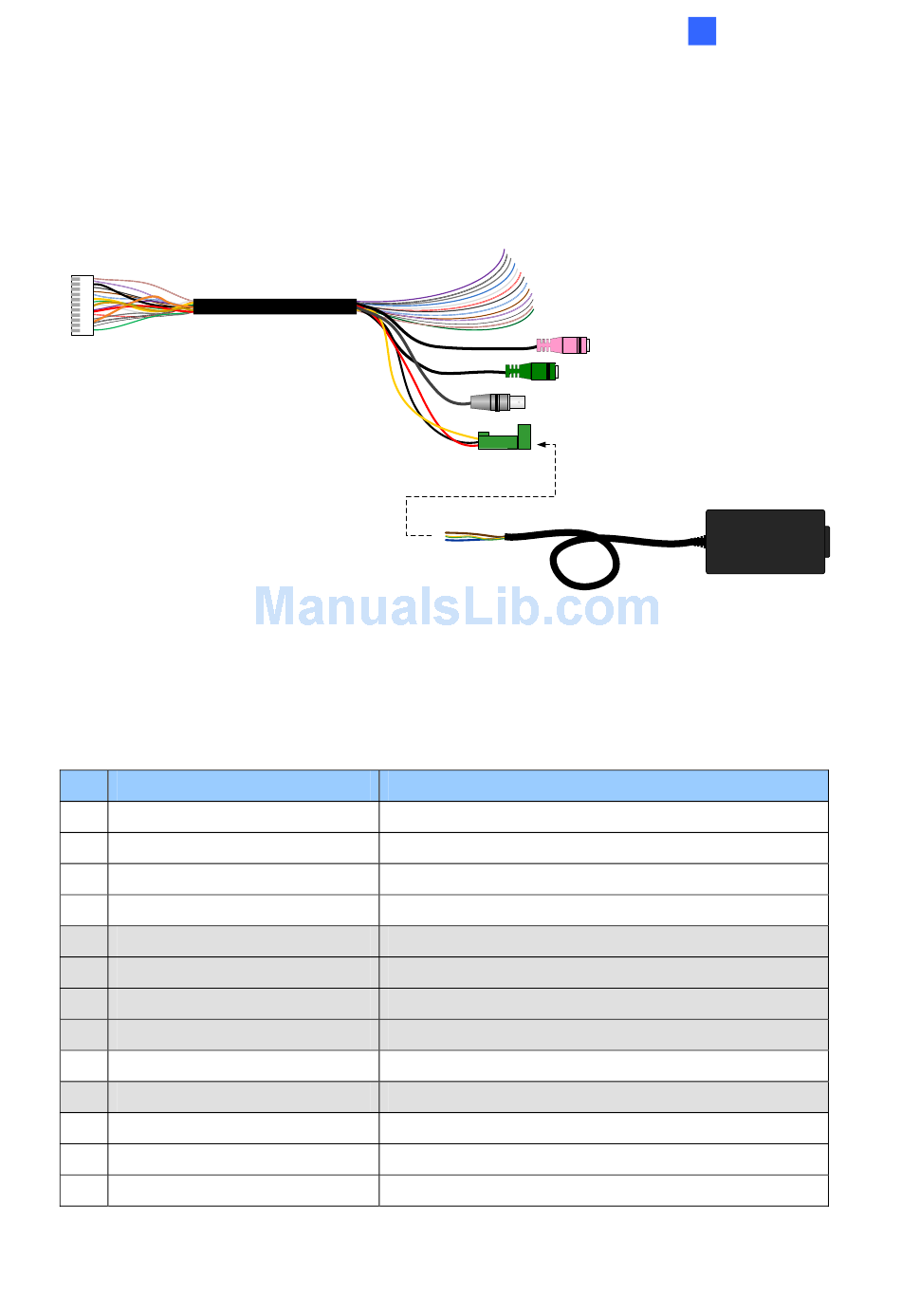

and I/O devices to the GV-IP Speed Dome. The Data Cable is illustrated as below.
22-Pin Data Cable
I/O Wire Definition
The I/O wires on the Data Cable allow you to connect 4 alarm input and 1 output devices.
Connect the I/O devices based on the wire definition listed below.
No. Wire
1 Red / White
2 Gray
3 Purple
4 Blue
5 White / Black
6 Orange / Black
7 Purple / White
8 Gray / Balck
9 Brown / White
10 Blue / White
11 Green / Black
12 Black / White
13 White
I/O Wires
TV Output
Figure 1-13
Definition
Input 1
Input 2
Input 3
Input 4
Not functional
Not functional
Not functional
Not functional
Input GND
Not functional
Output (COM)
Output (N/O)
Output (N/C)
1 Introduction
Audio Input
Speaker Output
Power Input
Power Adaptor
