GeoVision GV-IP Speed User Manual page 39

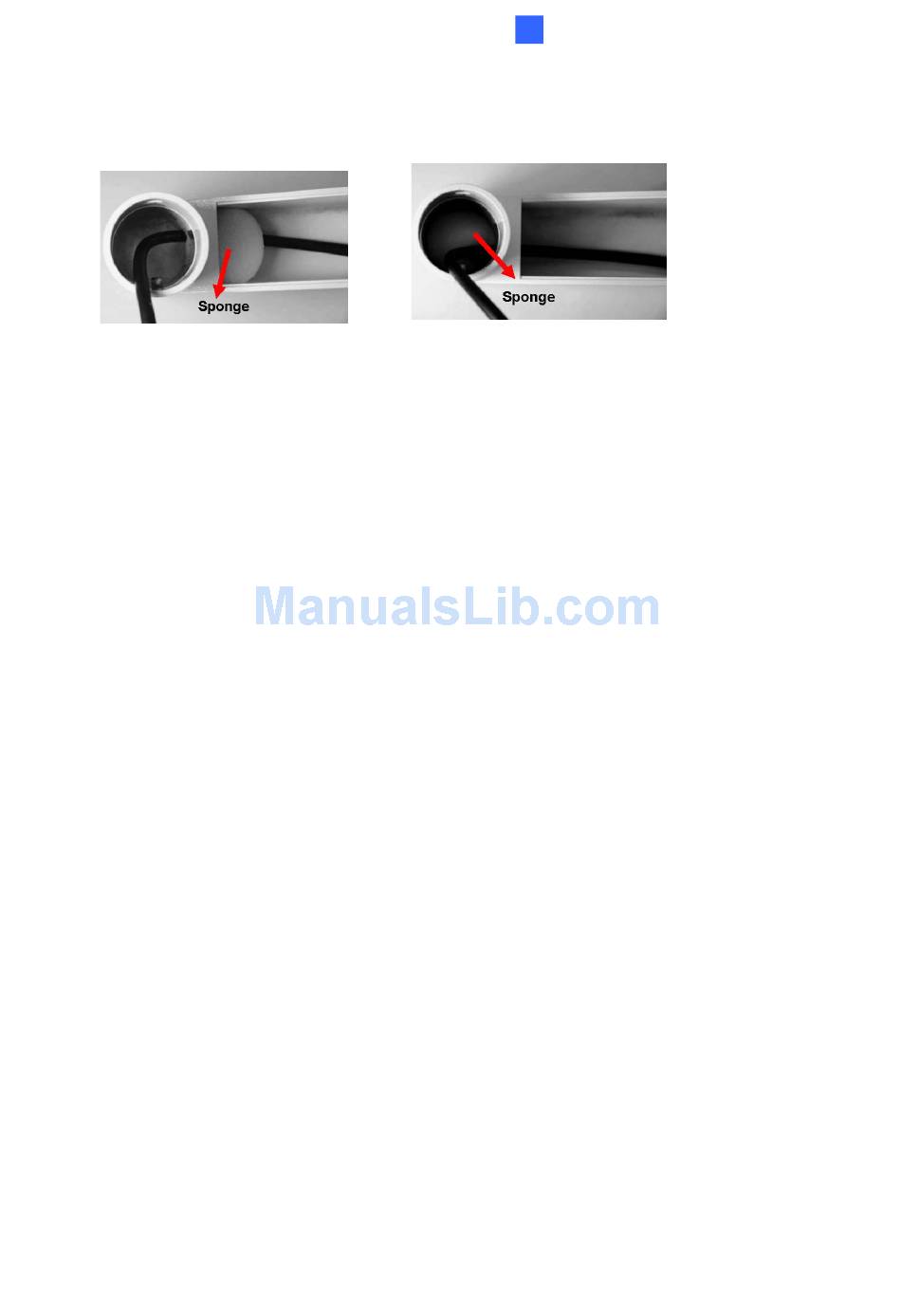

5. To prevent insects from the GV-IP Speed Dome, block the cable entry hole with the
supplied sponge in two ways. See the pictures below.
Figure 2-24-1
6. Run the cables through the Indoor/Outdoor Mount Kit, and join the Indoor/Outdoor Mount
Kit to the Standard Pendent Mount with the supplied screws and washers. Then adjust the
Waterproof Rubber to the joint.
7. Connect the cables to the GV-IP Speed Dome.
8. Join the Dome to the Indoor/Outdoor Mount Kit with the supplied screw and washers.
2
Installing the GV-IP Speed Dome
Figure 2-24-2
29
