3.2.4 Video Recording

You can record live video for a certain period of time to your local computer.
1. Click the File Save button (No. 6, Figure 3-3). The Save As dialog box appears.
2. Specify Save in, type the File name, and move the Time Period scroll bar to specify the
time length of the video clip from 1 to 5 minutes.
3. Click the Save button to start recording.
4. To stop recording, click the Stop button (No. 2, Figure 3-3).

3.2.5 Wide Angle Dewarping

The live view can be curved especially near the corners. Use this function to correct the
warping of live view.
1. Right-click the live view to display a drop-down list.

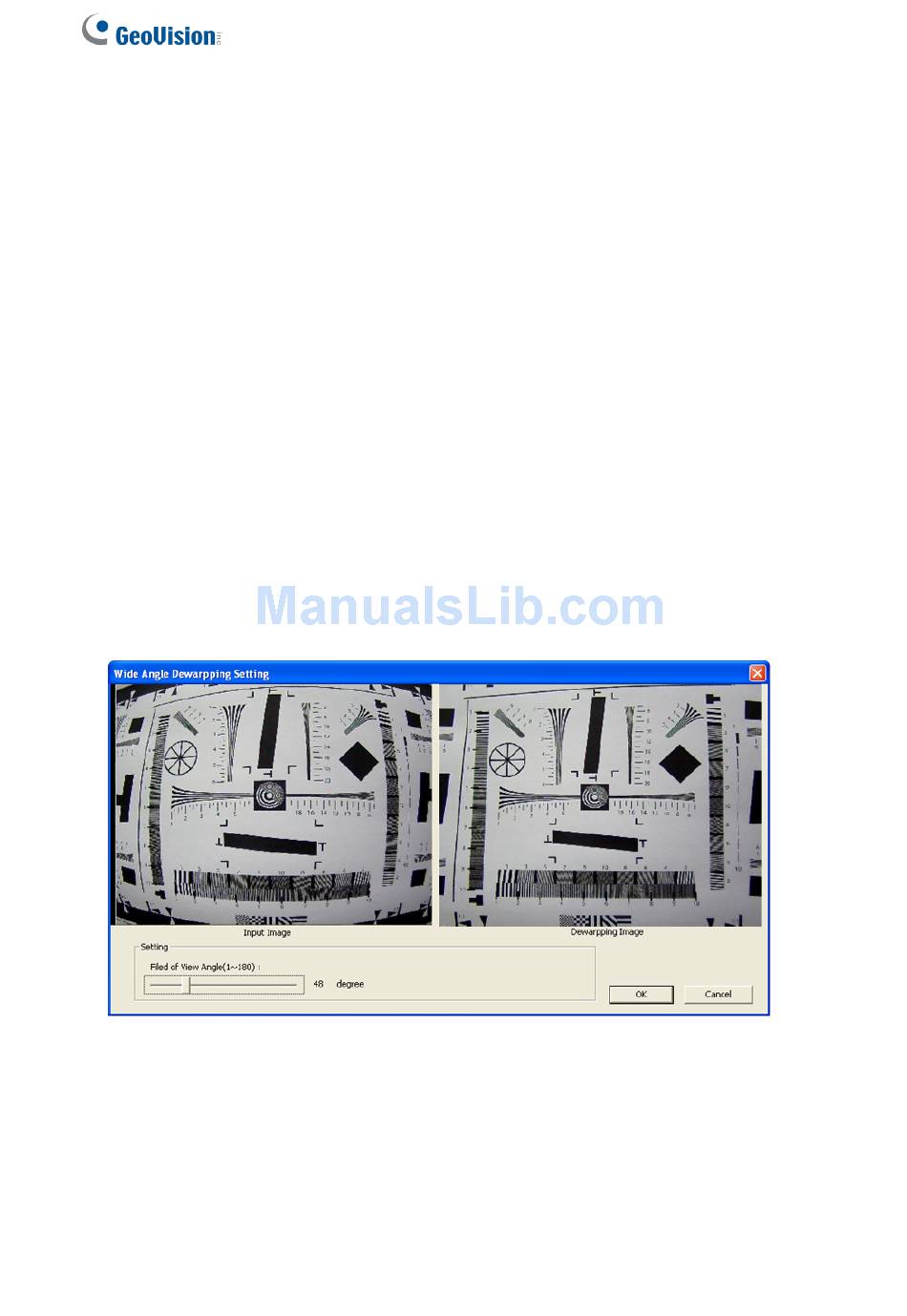

2. Select Wide Angle Dewarping and Configure. The Wide Angle Dewarping Setting
window appears.
3. Move the slider at the bottom to correct the degree of warping. The adjusted view is
shown on the right. Click OK to close this window.
4. To enable this configuration, right-click on the live view, select Wide Angle Dewarping
and Enable.
46
Figure 3-6
