Necessary items for the Dome of Indoor Type:
•
GV-IP Speed Dome (Indoor Type)
•
Data Cable (supplied)
•
Ethernet Cable
•
Indoor Mount Kit (optional)
•
Standard Pendent Mount (optional)
•
Waterproof Rubber (supplied with Indoor Mount Kit)
•
Screws and screw anchors for fixing the Standard Pendent Mount on the wall (not
supplied)
Necessary items for the Dome of Outdoor Type:
•
GV-IP Speed Dome (Outdoor Type)
•
Outdoor Mount Kit (supplied)
•
Data Cable (supplied)
•
Ethernet Cable
•
Standard Pendent Mount (optional)
•
Waterproof Rubber (supplied)
•
M5 Standard/Security Screw (supplied)
•
Screws and screw anchors for fixing the Standard Pendent Mount on the wall (not
supplied)
Follow the steps:

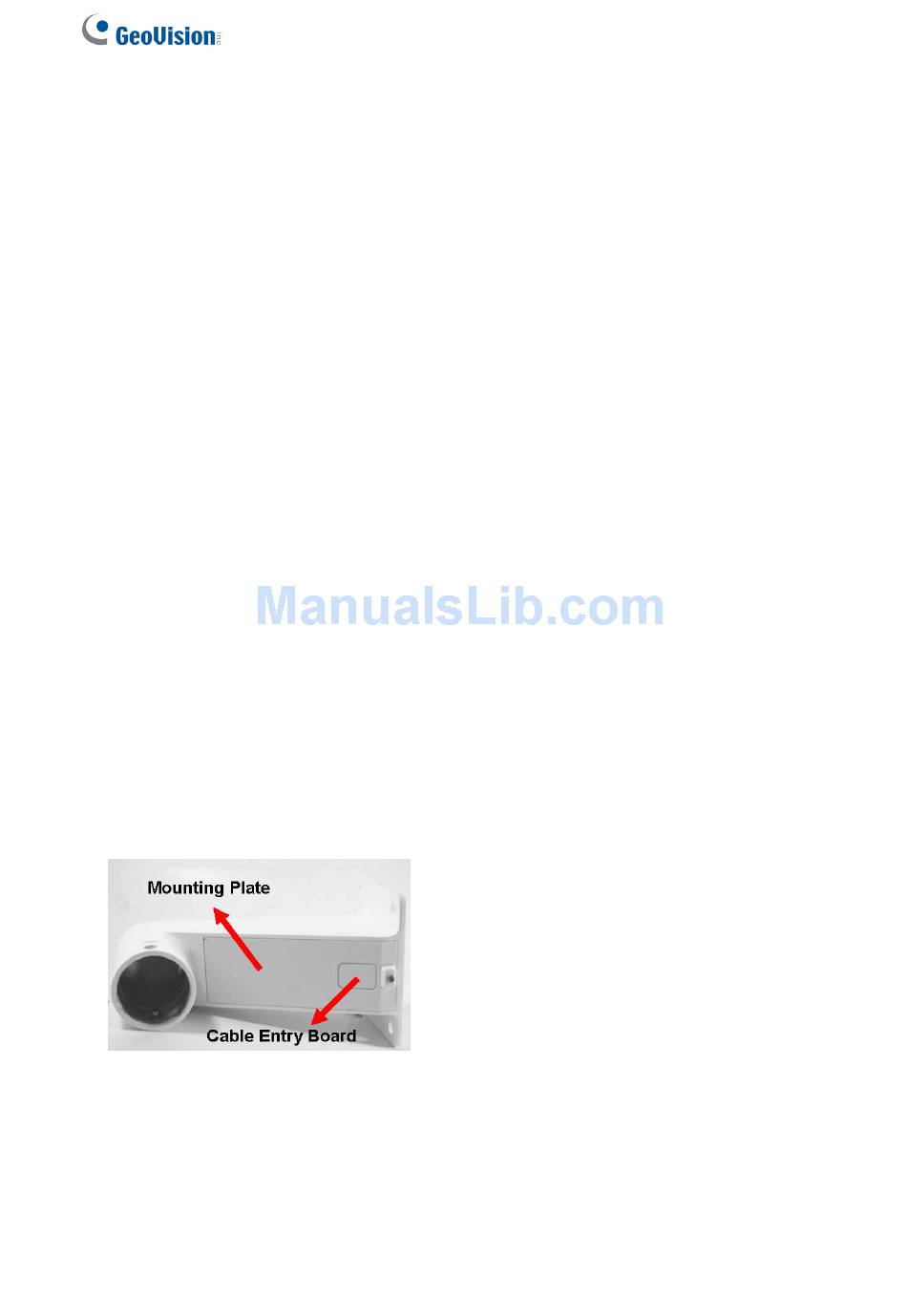

1. Make a cable entry hole on the wall to recess the Data and Ethernet cables. Otherwise,
push up the cable entry board on the mounting plate of Standard Pendant Mount to place
the cables as shown in the picture below.
Figure 2-23
2. Fix the Standard Pendent Mount on the wall with proper screws and screw anchors.
3. Attach the Waterproof Rubber to the Standard Pendent Mount.
4. Run the Data and Ethernet cables through the Standard Pendent Mount.
