4.4 PTZ Setting- Sequence Settings

To automatically move the Dome based on a predefined route, create a Sequence by linking
up a number of presets points. Up to 8 Sequences can be created. A minimum of 2 preset
points must be selected for a Sequence route to work.
Setting Up a Sequence Route
1. Follow the steps in Accessing the PTZ Settings Dialog Box above and click Open to
display the VISCA OSD Configure dialog box, click Sequence located under PTZ
Setting on the left menu.
2. Use the Index drop-down list to select the Sequence group number to be configured. Up
to 8 Indexes (Sequence groups) can be created.
3. One Sequence group can include up to 32 Preset Points. Use the Point drop-down list to
select the number of Preset Points allowed in this Sequence group.
4. Use the Preset drop-down list to select the Presets for this Sequence group.
5. Use the Dwell Time drop-down list to set the duration time for the Dome to stay at this
Preset. The duration time ranges from 0 to 127 seconds.
6. Use the Speed drop-down list to set the speed at which the Dome travels from one Preset
to another.
7. To create another Sequence group, repeat Steps 1 to 6, and select a different Index
number.
8. Click Save to complete the settings.
58

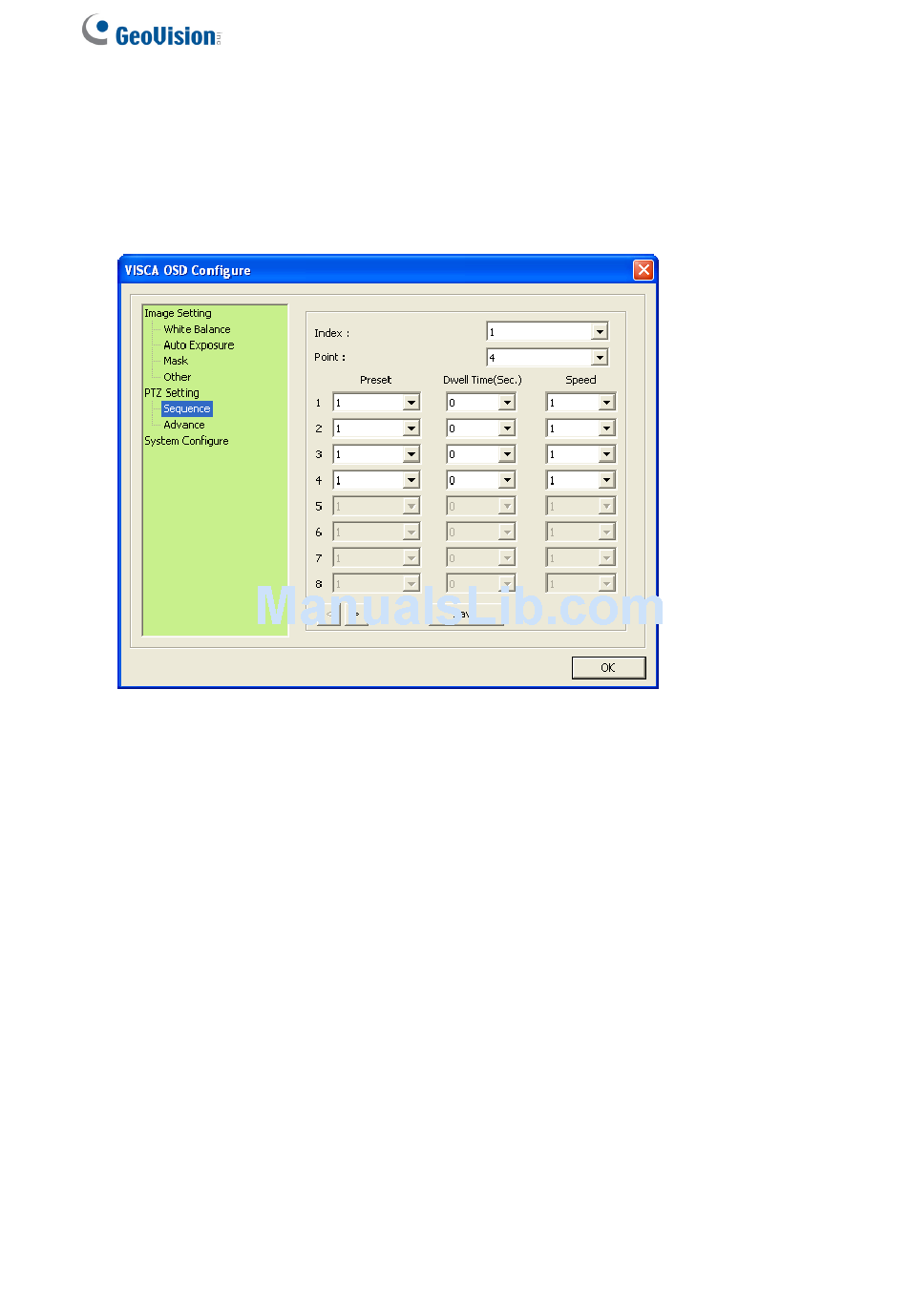

Figure 4-3
