2.1.3 Straight Tube Mount (Indoor Type)

With the optional Straight Tube, the GV-IP Speed Dome of Indoor Type can be suspended
from the ceiling. The Straight Tube is available in two different lengths: 250 mm and 500 mm.
Necessary items include:
•
GV-IP Speed Dome (Indoor Type)
•
Data Cable (supplied)
•
Ethernet Cable
•
Indoor Mount Kit (optional)
•
Straight Tube (optional)
•
Screws and screw anchors for fixing the Straight Tube onto the ceiling (not supplied)
Follow the steps:
1. Ensure that the ceiling can support the weight of the GV-IP Speed Dome and Straight
Tube.
2. Make a cable entry hole on the ceiling.
3. Fix the Straight Tube to the ceiling with proper screws and screw anchors.
2
Installing the GV-IP Speed Dome

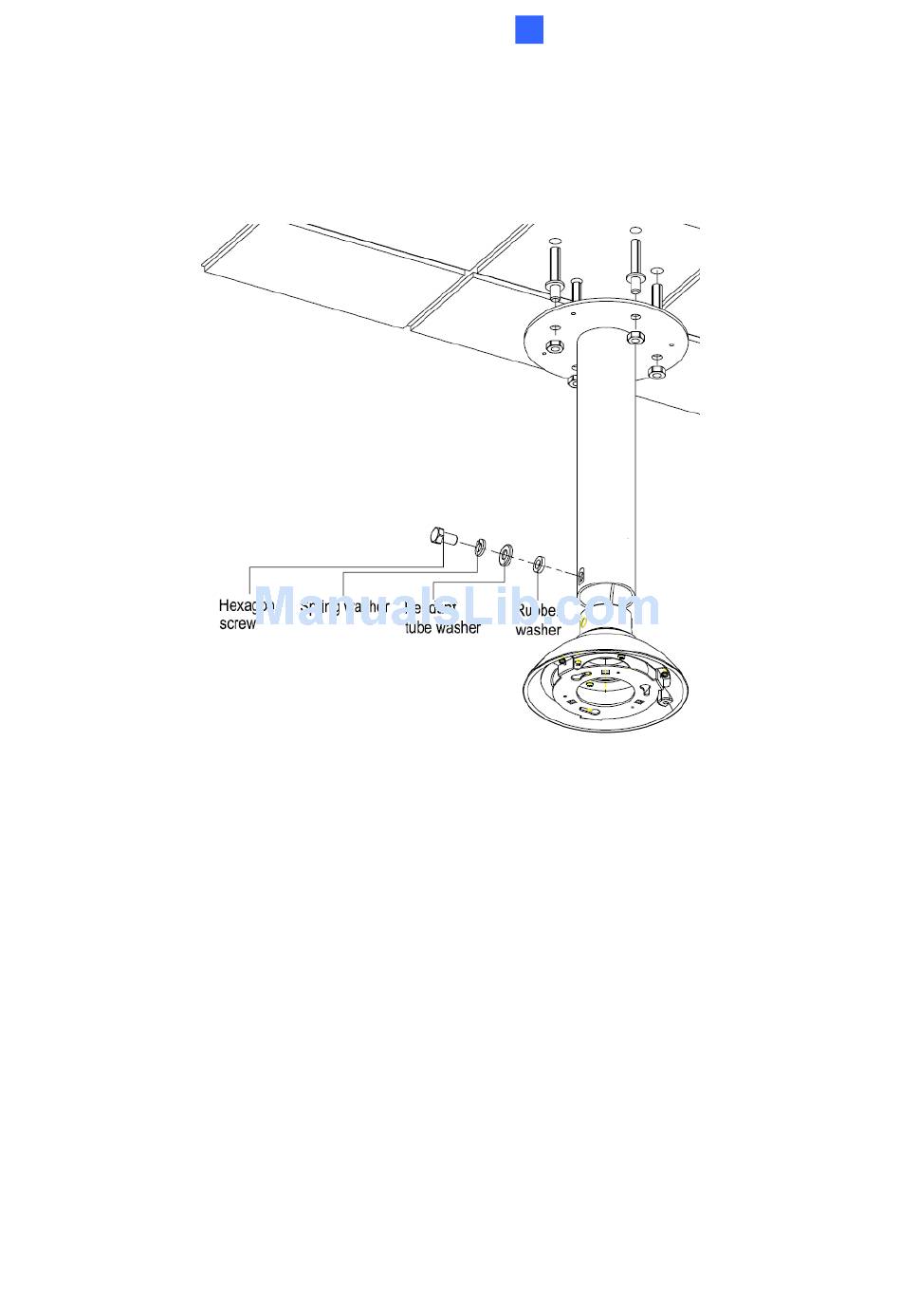

Figure 2-17
