6. Run the Data and Ethernet cables through the center hole of the Hard Ceiling Mount and
connect the cables to the GV-IP Speed Dome.

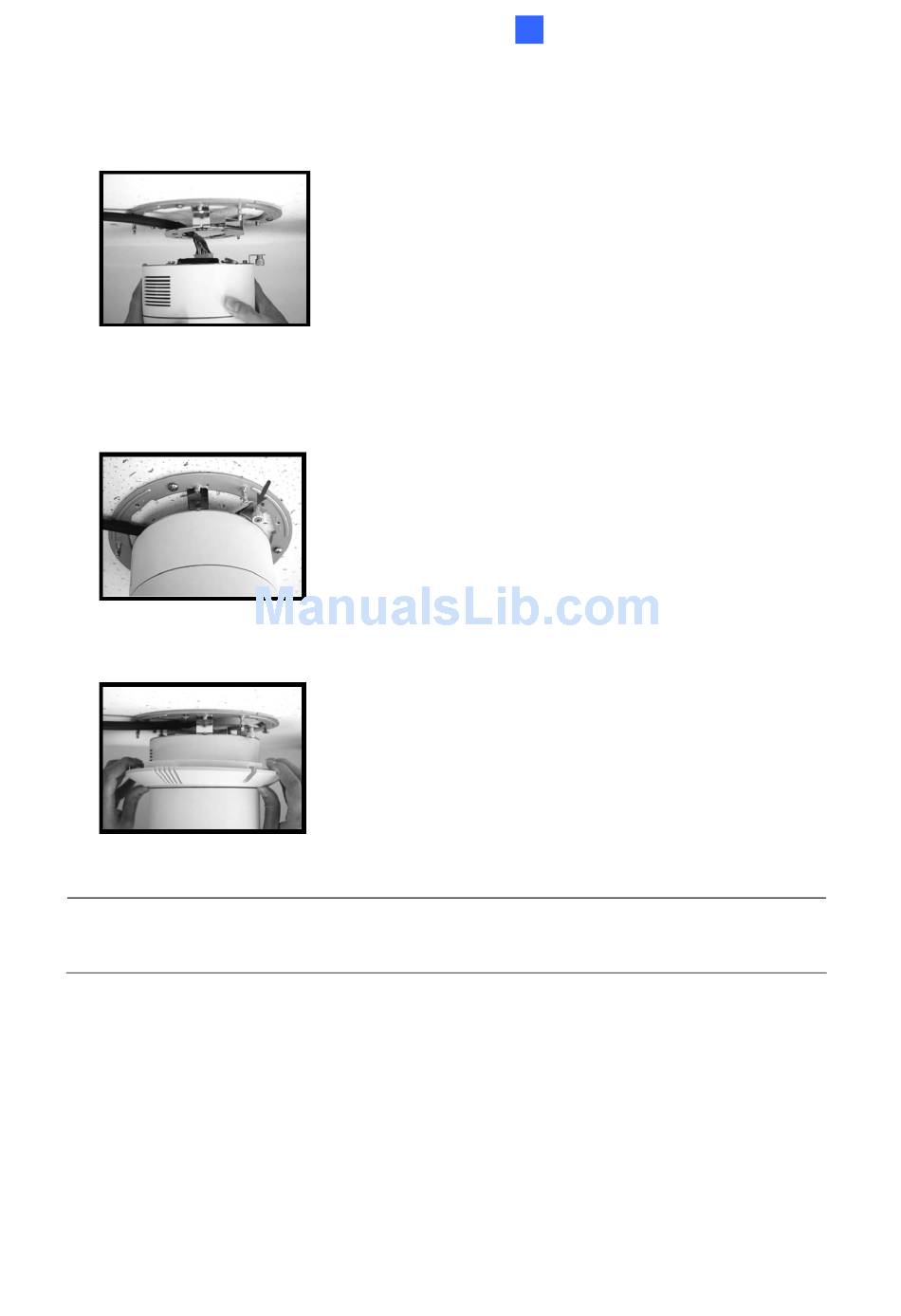

Figure 2-5
7. Attach the Dome body to the Hard Ceiling Mount and rotate the Dome body clockwise.
Tighten the screw to fix the Dome body as shown in the picture below.
Figure 2-6
8. Fix the Decoration Ring to the bracket.
Figure 2-7
Note: Make sure the optical cover is removed before fixing the Decoration Ring to the
bracket.
9. Place the optical cover back to the GV-IP Speed Dome.
