2.3.2 Corner Thin Box Mount

With the optional Corner Thin Box and Standard/Min Pendent Mount, the GV-IP Speed
Dome can be mounted on the corner wall.
Necessary items for the Dome of Indoor Type:
•
GV-IP Speed Dome (Indoor Type)
•
Data Cable (supplied)
•
Ethernet Cable
•
Indoor Mount Kit (optional)
•
Standard/Mini Pendent Mount (optional)
•
Corner Thin Box (optional)
•
Waterproof Rubber (supplied with Indoor Mount Kit)
•
Screws and screw anchors for fixing the Corner Thin Box to the wall (not supplied)
Necessary items for the Dome of Outdoor Type:
•
GV-IP Speed Dome (Outdoor Type)
•
Outdoor Mount Kit (supplied)
•
Data Cable (supplied)
•
Ethernet Cable
•
Standard/Mini Pendent Mount (optional)
•
Corner Thin Box (optional)
•
Waterproof Rubber (supplied)
•
M5 Standard/Security Screw (supplied)
•
Screws and screw anchors for fixing the Corner Thin Box to the wall (not supplied)
Follow the steps:
2
Installing the GV-IP Speed Dome

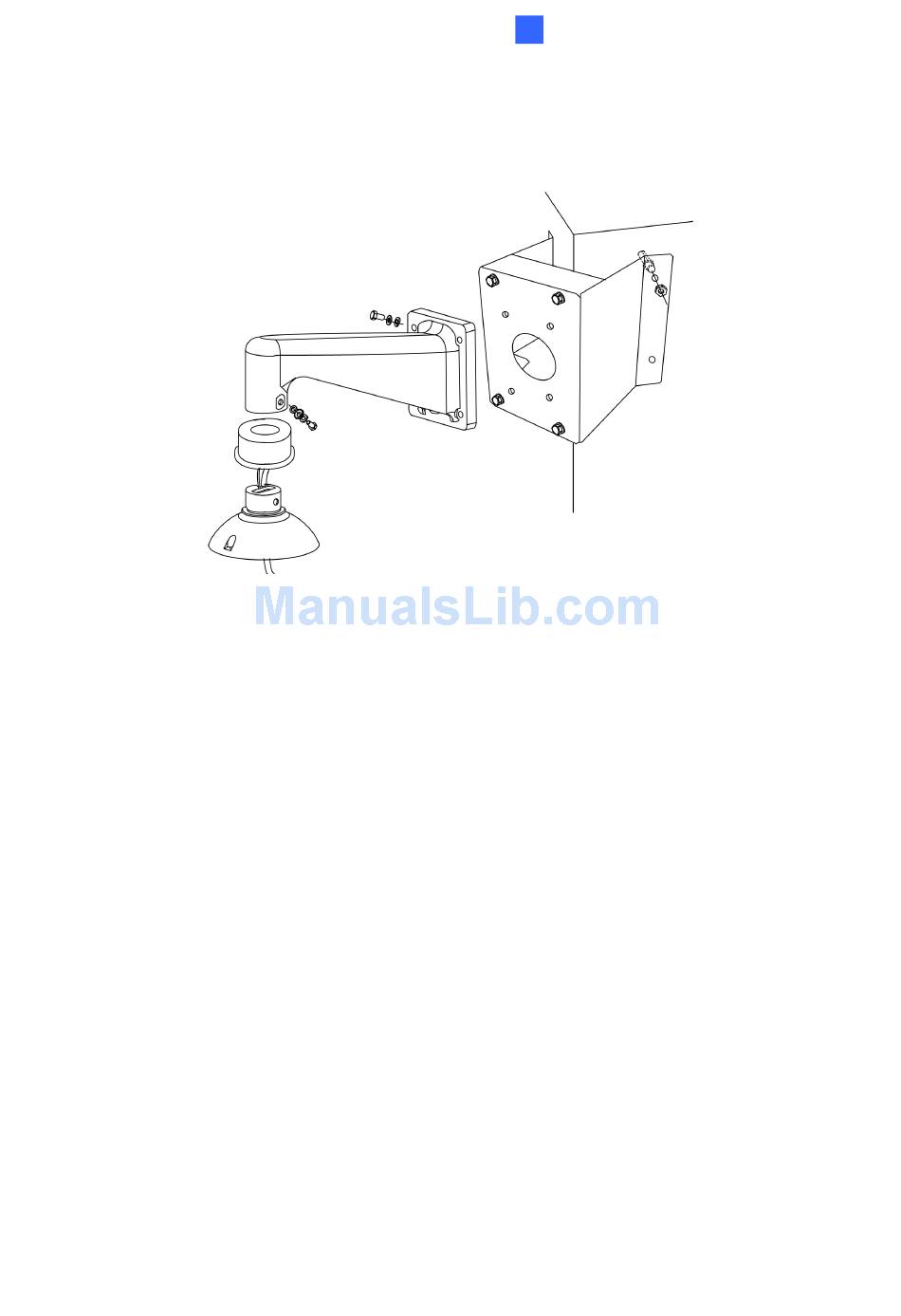

Figure 2-28
