2.2.2 Mini Pendent Mount

The installation steps of the Mini Pendent Mount are the same as those of the Standard
Pendent Mount. For details, see 2.2.1 Standard Pendent Mount.
Necessary items for the Dome of Indoor Type:
•
GV-IP Speed Dome (Indoor Type)
•
Data Cable (supplied)
•
Ethernet Cable
•
Indoor Mount Kit (optional)
•
Mini Pendent Mount (optional)
•
Waterproof Rubber (supplied with Indoor Mount Kit)
•
Screws and screw anchors for fixing the Mini Pendent Mount on the wall (not supplied)
Necessary items for the Dome of Outdoor Type:
•
GV-IP Speed Dome (Outdoor Type)
•
Outdoor Mount Kit (supplied)
•
Data Cable (supplied)
•
Ethernet Cable
•
Mini Pendent Mount (optional)
•
Waterproof Rubber (supplied)
•
MS Standard/Security Screw (supplied)
•
Screws and screw anchors for fixing the Mini Pendent Mount on the wall (not supplied)

2.2.3 Wall Box Mount

With the optional Wall Box Mount and Standard/Mini Pendent Mount, the GV-IP Speed
30

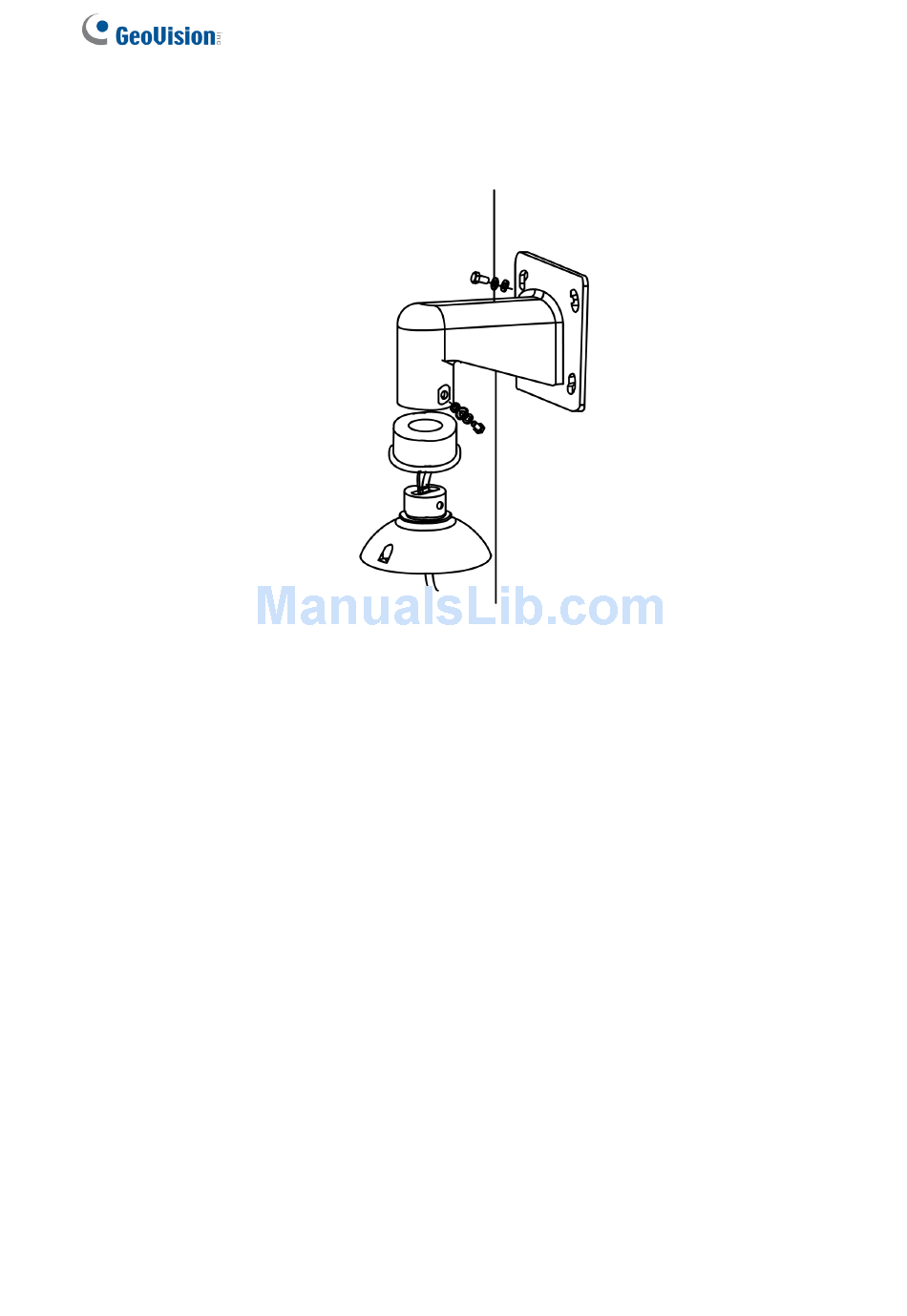

Figure 2-25
