Wire Definition for Power Input
Connect the three wires of Power Adaptor to the 3-pin terminal block of power input, based on
the following wire assignments.
Wire Assignments for 220 V Power Adaptor
Wires of 3-Pin Terminal Block
Red
Yellow
Black
Wire Assignments for 110 V Power Adaptor
Wires of 3-Pin Terminal Block
Red
Yellow
Black
Note: When wiring the power cable, ensure the Ground wire inserted into the mid-pin of the
terminal block.
12

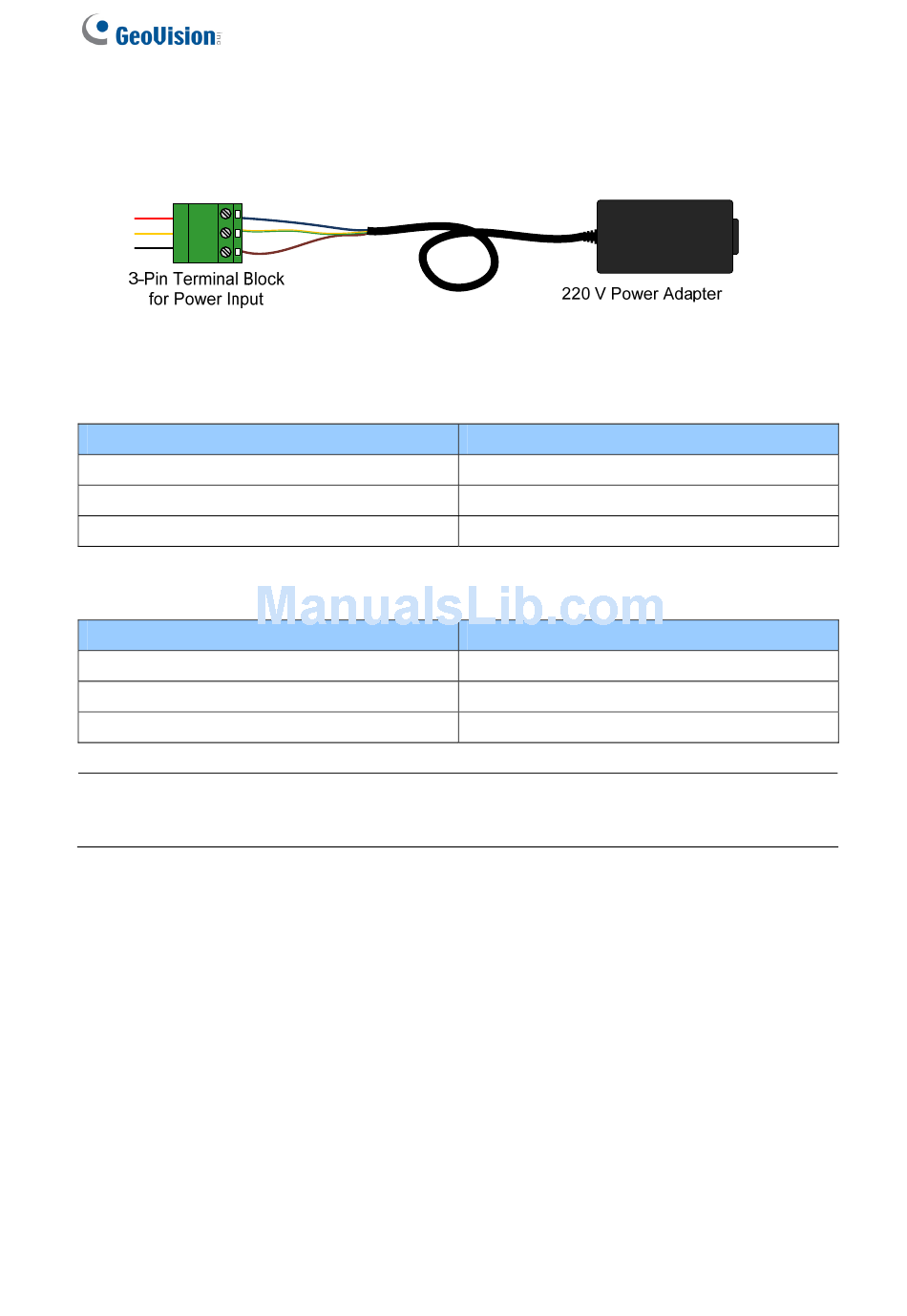

Figure 1-14
Wires of Power Adaptor
Blue
Yellow
Brown
Wires of Power Adaptor
White
Green
Black
