7.3 Remote Monitoring with E-Map

You can use the Remote E-Map to monitor the video and I/O devices connected from the
GV-IP Speed Dome.
Creating an E-Map for the GV-IP Speed Dome
With the E-Map Editor, you can create an E-Map for the GV-IP Speed Dome and I/O devices
connected to the Dome. The E-Map Editor is available in the two applications: Main System
and E-Map Server. The following is an example of running the E-Map Editor included in the
Main System.
1. Go to Windows Start menu, point to Programs, select GV folder and click E-Map Editor.
2. To create an E-Map, click the Add Map button on the toolbar. A New Map file appears.
3. Double-click the New Map file, and click the Load Map button on the toolbar to import a
graphic file.
4. To create a host, click the Add Host button on the toolbar and select Add Video Server.

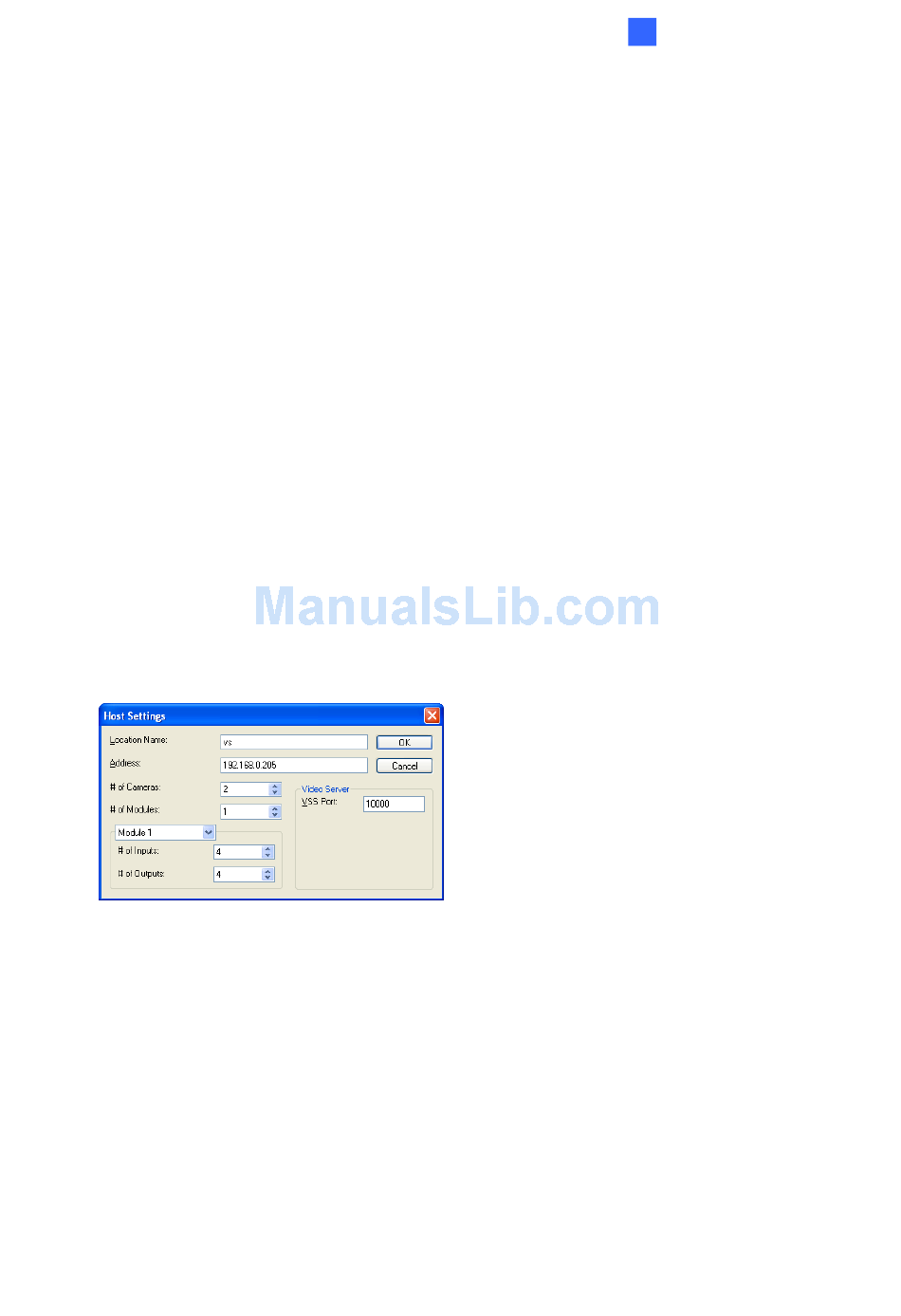

5. Right-click the created New Host in the Host View, and select Host Settings. This dialog
box appears.
6. Give the GV-IP Speed Dome a location name, and type its IP address (or domain name).
Keep the default VSS port 10000, or modify it to match that of GV-IP Speed Dome.
7. Click OK to save the settings.
8. Expand the created host folder. Drag and drop the icons of cameras and I/O devices onto
the imported E-Map.
9. Close the E-Map Editor. Click Yes when you are promoted to save the file.
For details on creating an E-Map file on the E-Map Server, see "E-Map Server", Chapter 9,
DVR User's Manual on the Surveillance System Software DVD.
Figure 7-8
DVR Configurations
