2.4.2 Pole Thin Box Mount

With the optional Pole Thin Box Mount and Standard/Mini Pendent Mount, the GV-IP
Speed Dome can be installed on a pole.
Necessary items for the Dome of Indoor Type:
•
GV-IP Speed Dome (Indoor Type)
•
Data Cable (supplied)
•
Ethernet Cable
•
Indoor Mount Kit (optional)
•
Standard/Mini Pendent Mount (optional)
•
Pole Thin Box Mount (optional)
•
Waterproof Rubber (supplied with Indoor Mount Kit)
•
Stainless Steel Straps (supplied with Pole Thin Box Mount) for fixing the Pole Thin Box
Mount to the wall
2
Installing the GV-IP Speed Dome

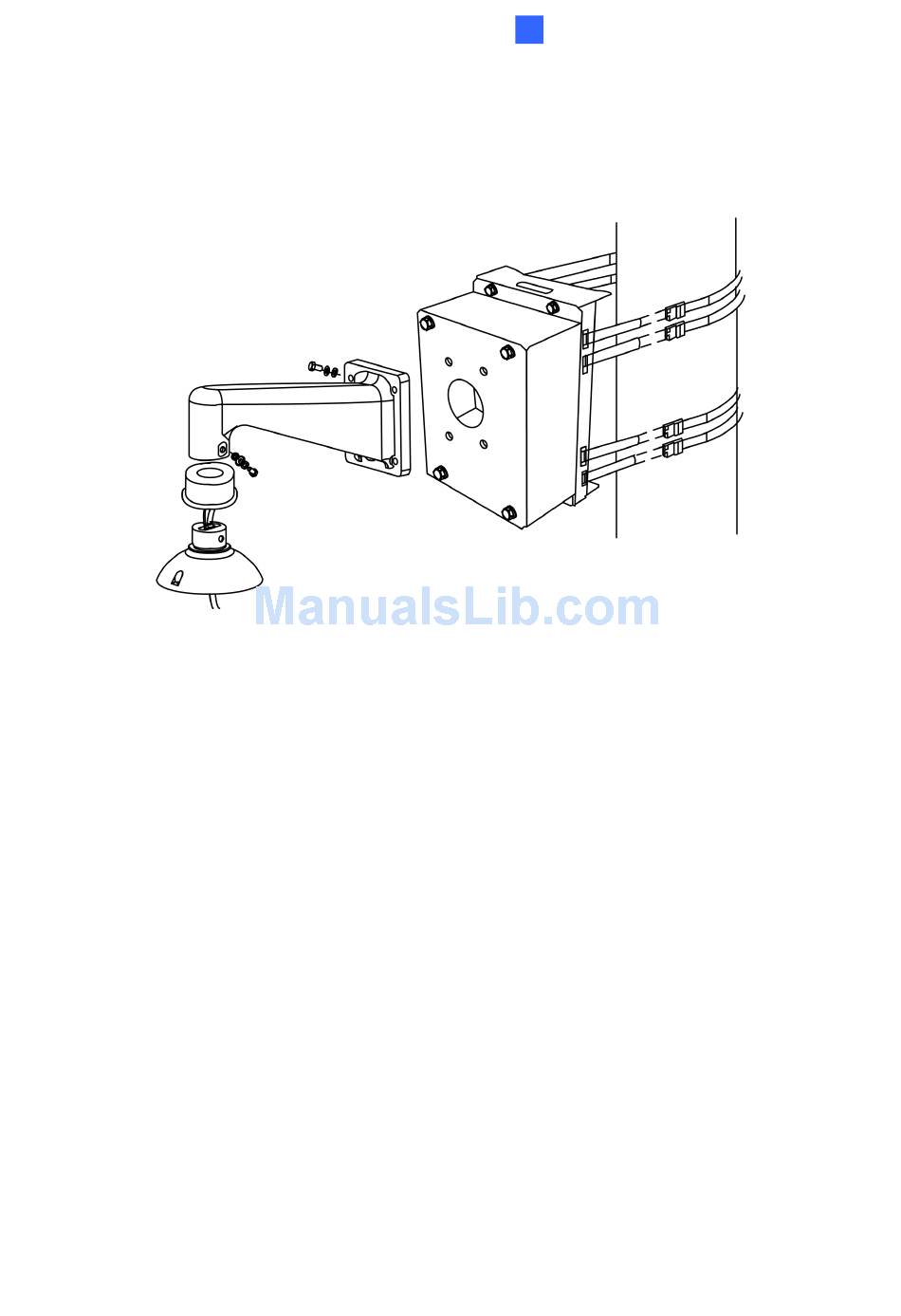

Figure 2-30
