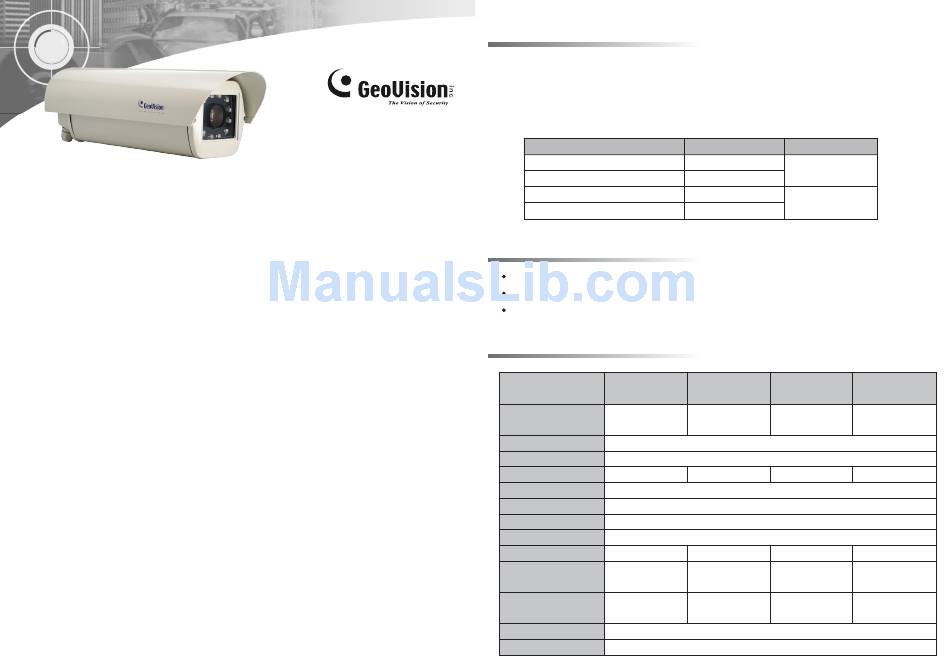

GeoVision GV-IRCAM 10M EIA DC12V Installation Manual

Installation Guide

(10-Meter / 20-Meter Models)
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
© 2008 Nov. GeoVision Inc. All rights reserved.
GV-IRCAM V1.5

Models

GV-IRCAM offers a selection of models that support different optimal distances and video
formats to meet various needs. This installation guide will take you through the functionality
and use of GV-IRCAM.
List of Models
Model
GV-IRCAM 10M EIA DC12V
GV-IRCAM 20M EIA DC12V
GV-IRCAM 10M CCIR DC12V
GV-IRCAM 20M CCIR DC12V

Packing List

AC Power Cable (110-125V, 10A) x 1
Power Adapter (100-240V, 12V/3A) x 1
Outdoor Mounting Bracket x 1

Specifications

Model
Distance (optimal)
Sensor
Resolution
Lens Focal Length
Construction
Protection classification
Environmental
Power Supply
Power Consumption
LED Quantity
Illumination Range
Illumination View Angle
Illuminator Life
IRCAMV15-A-TB
Optimal Distance
10 m / 32.80 ft
20 m / 65.61 ft
10 m / 32.80 ft
20 m / 65.61 ft
GV-IRCAM 10M GV-IRCAM 20M GV-IRCAM 10M
EIA DC 12V EIA DC 12V CCIR DC 12V
7~15 m / 15 ~ 25 m /
22.96 ~ 49.21 ft 49.21 ~ 82.02 ft 22.96 ~ 49.21 ft
1/3" B/W EXview CCD
570 TVL
5 ~ 50 mm, 10X 10 ~ 120 mm, 12X 5 ~ 50 mm, 10X
Robust aluminum with weatherproof sun-shield
IP 66
Operation: -10˚C ~ 55˚C / 14˚F ~ 131˚F Storage: -20˚C ~ 70˚C / -4˚F ~ 158˚F
DC 12V
15W 20W
12 high-efficiency 24 high-efficiency 12 high-efficiency
reflex LED reflex LED reflex LED
20M (object of view 30M (object of view 20M (object of view
reflecting IR light) reflecting IR light) reflecting IR light)
30˚
25,000 hrs
Video Format
NTSC
PAL
GV-IRCAM 20M
CCIR DC 12V
7 ~ 15 m / 15 ~ 25 m /
22.96 ~ 49.21 ft
10 ~ 120 mm, 12X
15W 20W
24 high-efficiency
reflex LED
30M (object of view
reflecting IR light)
