Connect The Ethernet Network Cables; Connect Other I/O Cables - Sun Oracle SPARC T3-1 Installation Manual

▼ Connect the Ethernet Network Cables

The server has four RJ-45 Gigabit Ethernet network connectors. They are marked
NET0, NET1, NET2, and NET3.
1. Connect a Category 5 cable from your network switch or hub to Ethernet Port 0
(NET0) on the rear of the chassis.
NET0 is the farthest left port in the 4-port network cluster.

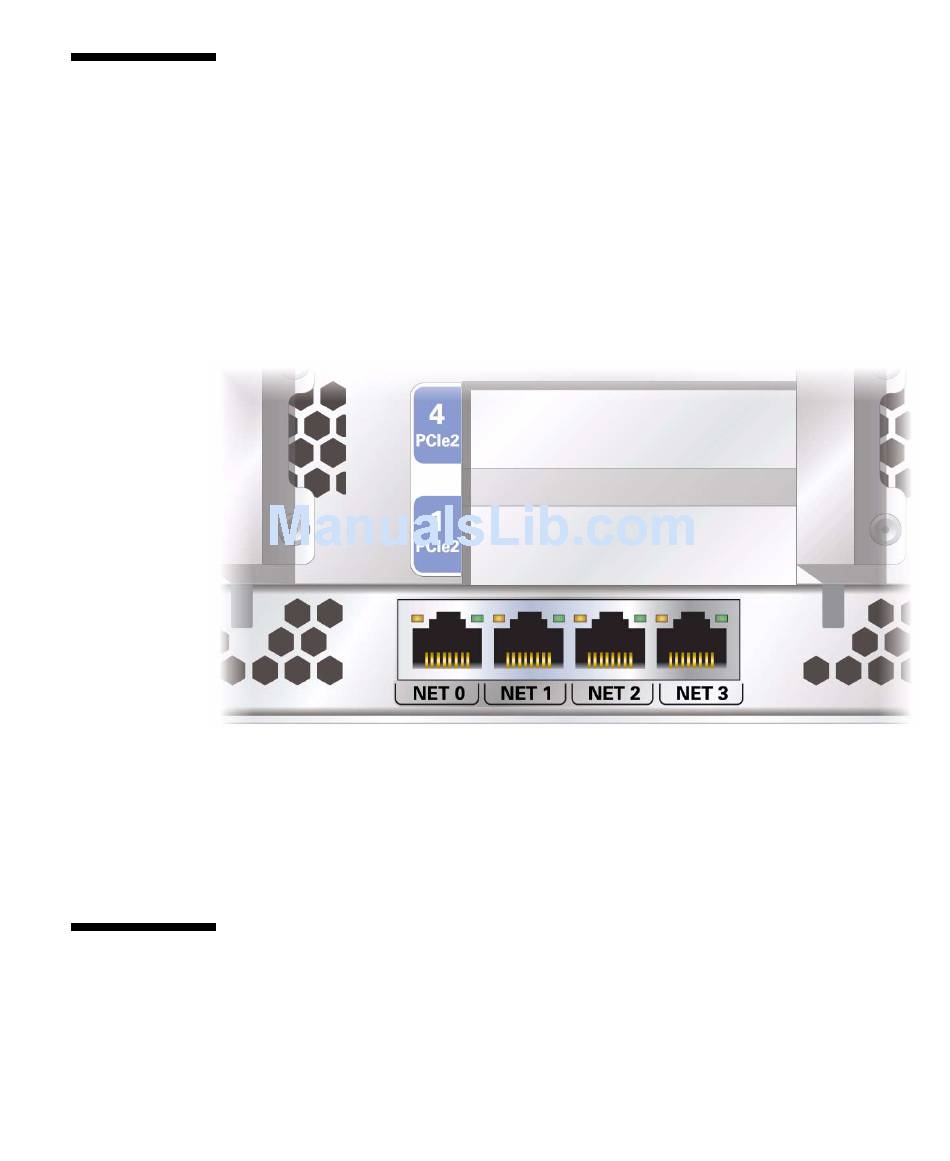

Service Processor Ethernet Network Ports – Rear Panel
FIGURE:
2. Connect Category 5 cables from your network switch or hub to the remaining
Ethernet ports (NET1, NET2, NET3), as needed.
Related Information
"Connecting the Server Cables" on page 47
■

▼ Connect Other I/O Cables

●
If your server configuration includes PCIe expansion modules, connect the
appropriate I/O cables to their connectors.
Connecting the Server Cables 51
