▼ Connect Ethernet Network Cables

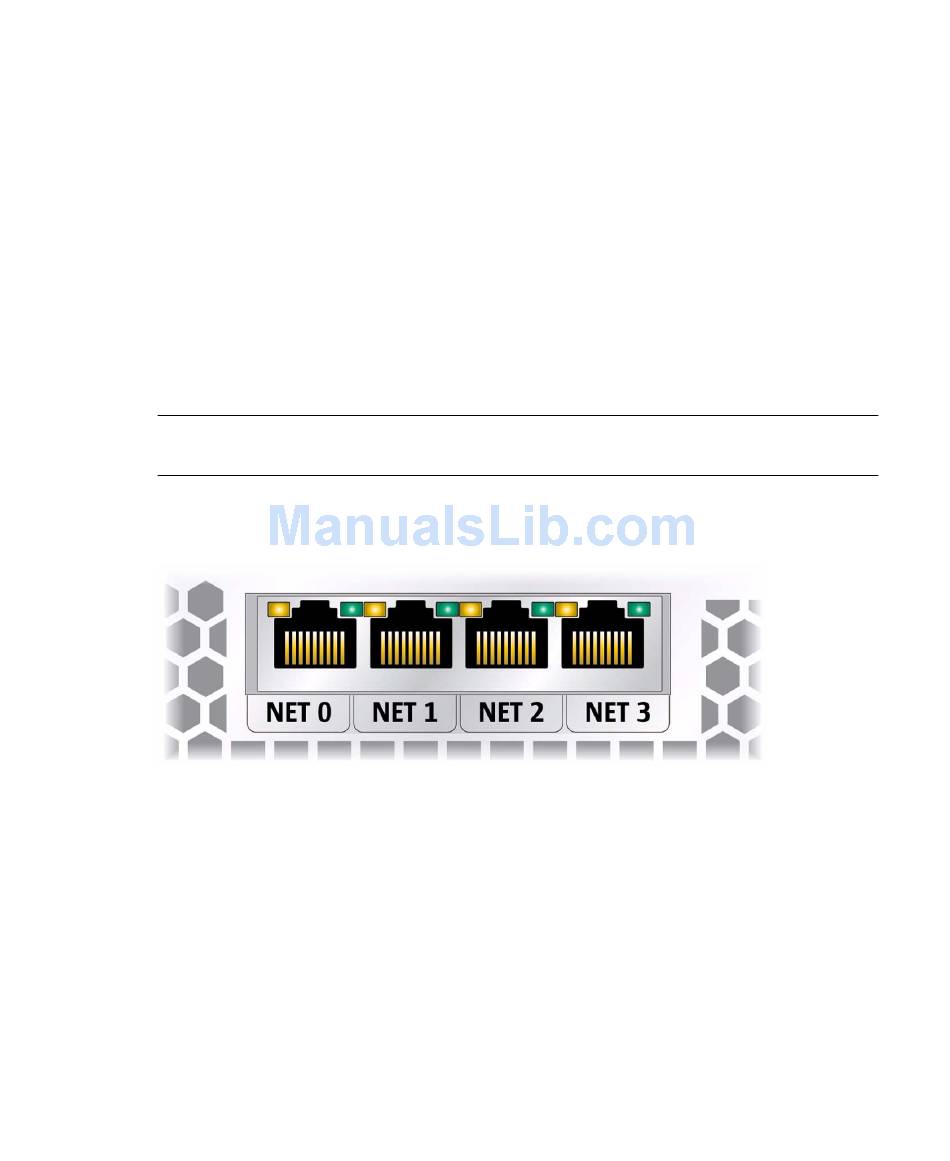

The server has four Gigabit-Ethernet network connectors, marked NET0, NET1,
NET2, and NET3. Use these ports to connect the server to the network. The Ethernet
interfaces operate at 10 Mbps, 100 Mbps, and 1000 Mbps. See
Ports" on page
Note – The Oracle ILOM sideband management feature enables you to access the SP
using one of these Ethernet ports. Refer to the Servers Administration for instructions.
1. Connect a Category 5 (or better) cable from your network switch or hub to
Ethernet Port 0 (NET0) on the rear of the chassis.
2. Connect Category 5 (or better) cables from your network switch or hub to the
remaining Ethernet ports (NET1, NET2, NET3), as needed.
Related Information
"Gigabit Ethernet Ports" on page 71
■
"Powering On the Server for the First Time" on page 79
■
"Connect the SER MGT Cable" on page 74
■
"Connect the NET MGT Cable" on page 75
■
"Connect Other Data Cables" on page 77
■
