3.4 Feeding Mechanism

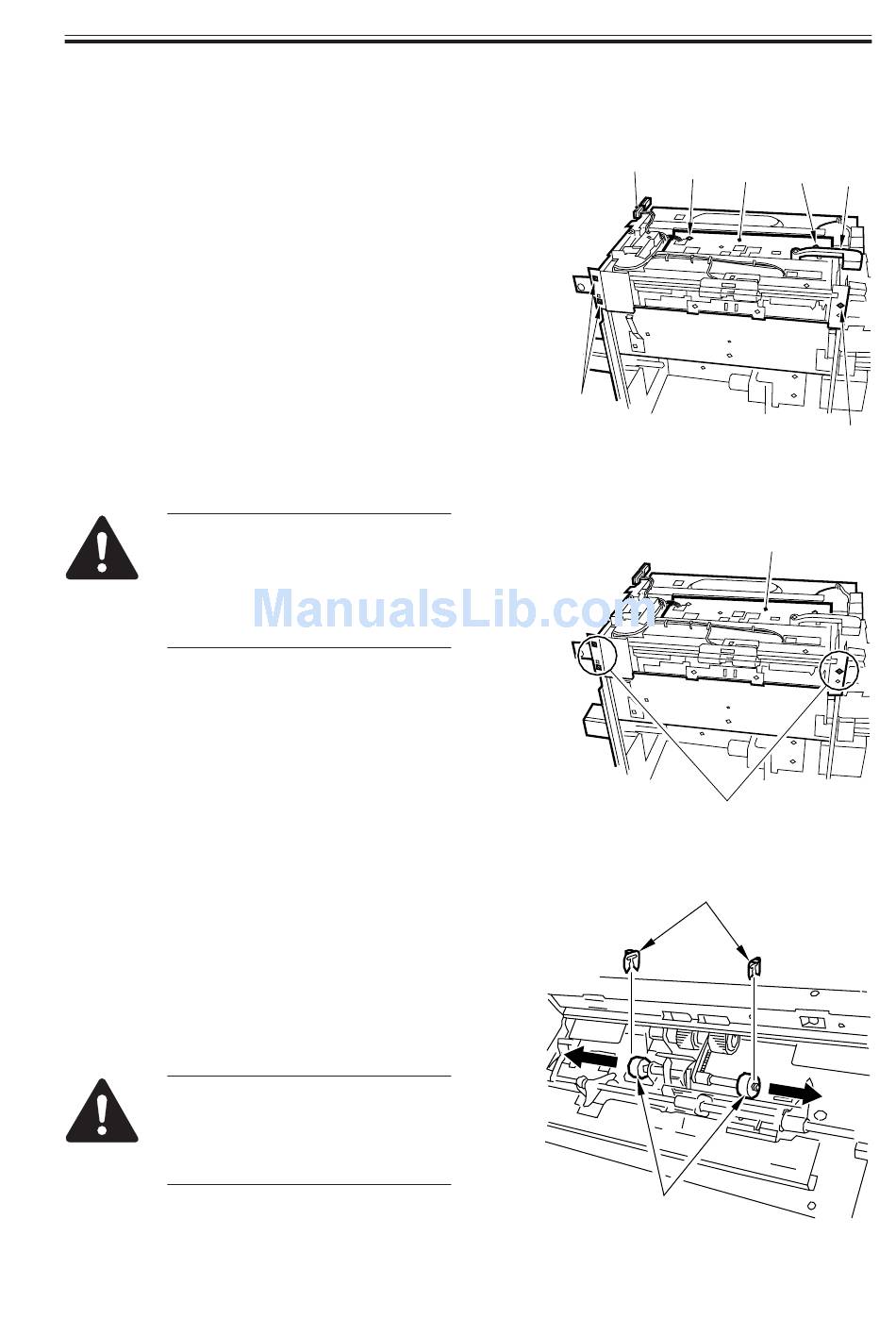

3.4.1 Removing the Deck Pickup Unit

1) Remove the upper cover. (p. 8-22P)
2) Remove the deck releasing grip [1].
3) Disconnect the two connectors [2], and
remove the five screws [3]; then, detach
the deck pickup unit [4].
When mounting the deck
pickup unit [1], be sure to fit
and tighten the three screws [2]
indicated in the figure in ad-
vance.

3.4.2 Removing the Deck Pickup Roller

1) Remove the deck pickup unit. (item
3.4.1)
2) Turn over the deck pickup unit, and re-
move the resin ring [1] (1 each); then,
detach the two deck pickup rollers [2].
The deck pickup roller has a
specific orientation (direction of
rotation). Pay attention to it
when mounting it.
COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON iR2200/iR2800/iR3300 REV.0 MAR. 2001
CHAPTER 8 PAPER DECK-L1
[2]
[3]
[4]
[3]
F08-304-01
[2]
F08-304-02
[2]
[1]
F08-304-03
[3]
[1]
[3]
[1]
8-37 P
