CHAPTER 3 IMAGE PROCESSING SYSTEM

2 Analog Image Processing

2.1 Outline

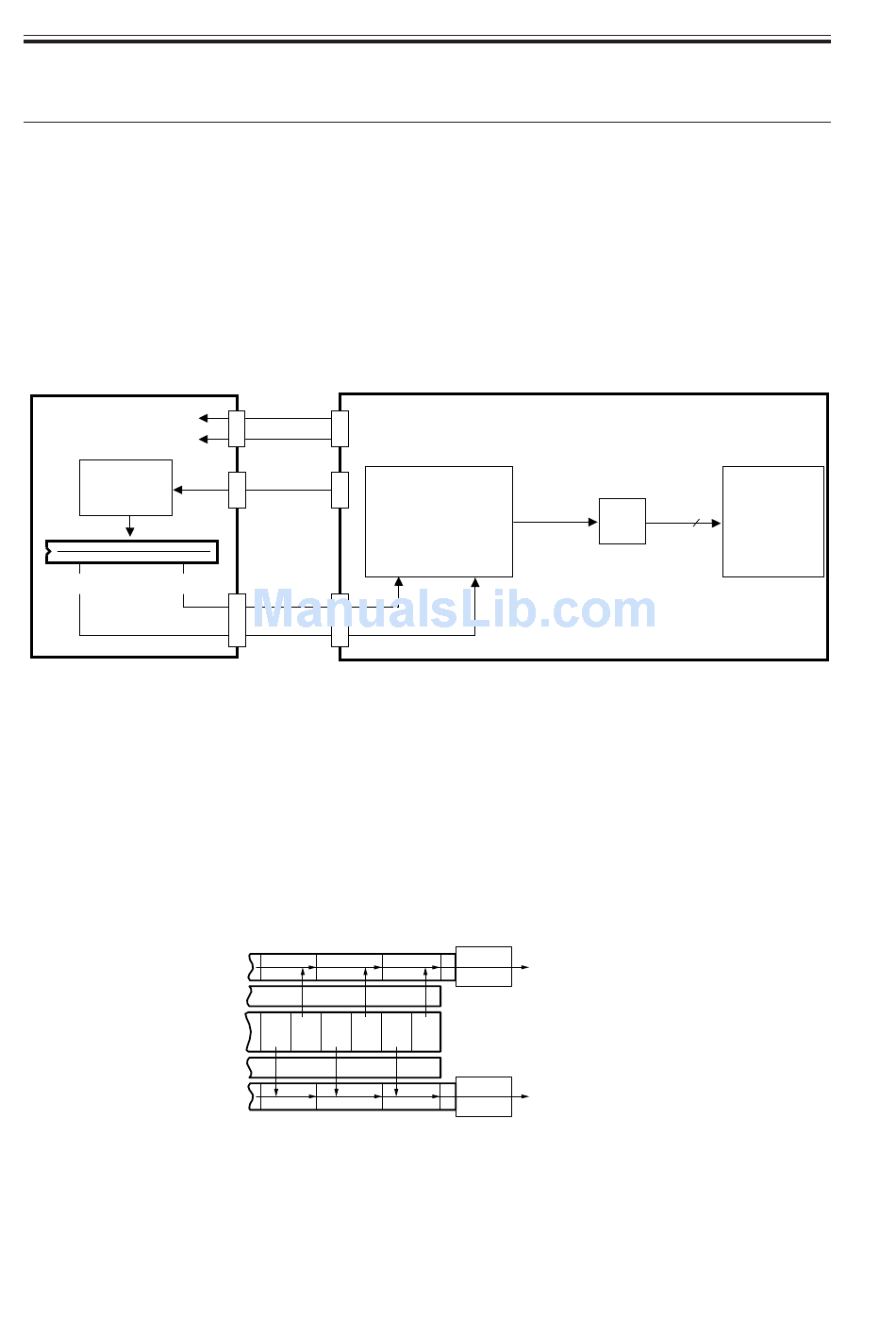

Analog image processing is performed by the CCD PCB and the reader controller PCB,
which has the following major functions:
[1] Drives the CCD.
[2] Corrects the gain in the CCD output, corrects offset.
[3] Performs parallel/serial conversion of CCD output.
[4] Performs A/D conversion of CCD output.
12V
CCD PCB
5V
CCD
driver
CCD
Odd-number
Even-number
pixels
pixels
Analog image signal

2.2 Driving the CCD

The machine's CCD sensor is a single-line linear image sensor, and is composed of 7450
pixel photo cells.
The signals subjected to phtoconversion in the light-receiving segment are sent out in two
types of analog signals: even-number (EVEN) pixels and odd-number (ODD) pixels.
Shift register
Light receiving
segment
(photodiode)
Shift register
3-2 R
COPYRIGHT © 2001 CANON INC.
J403
Reader controller PCB
J407
· Gain correction
CCD drive
· Offset correction
signal
· Parallel/serial
conversion
J408
F03-201-01
Gate
6
5
4
3
2
Gate
F03-202-01 CCD Block Diagram
2000 2000 2000 2000
Analog
signal
Output buffer
Odd-number pixel data
1
Even-number pixel data
Output buffer
CANON iR2200/iR2800/iR3300 REV.0 MAR. 2001
Digital
Digital
signal
A/D
conver
processing
-sion
8
block
