CHAPTER 2 ORIGINAL EXPOSURE SYSTEM

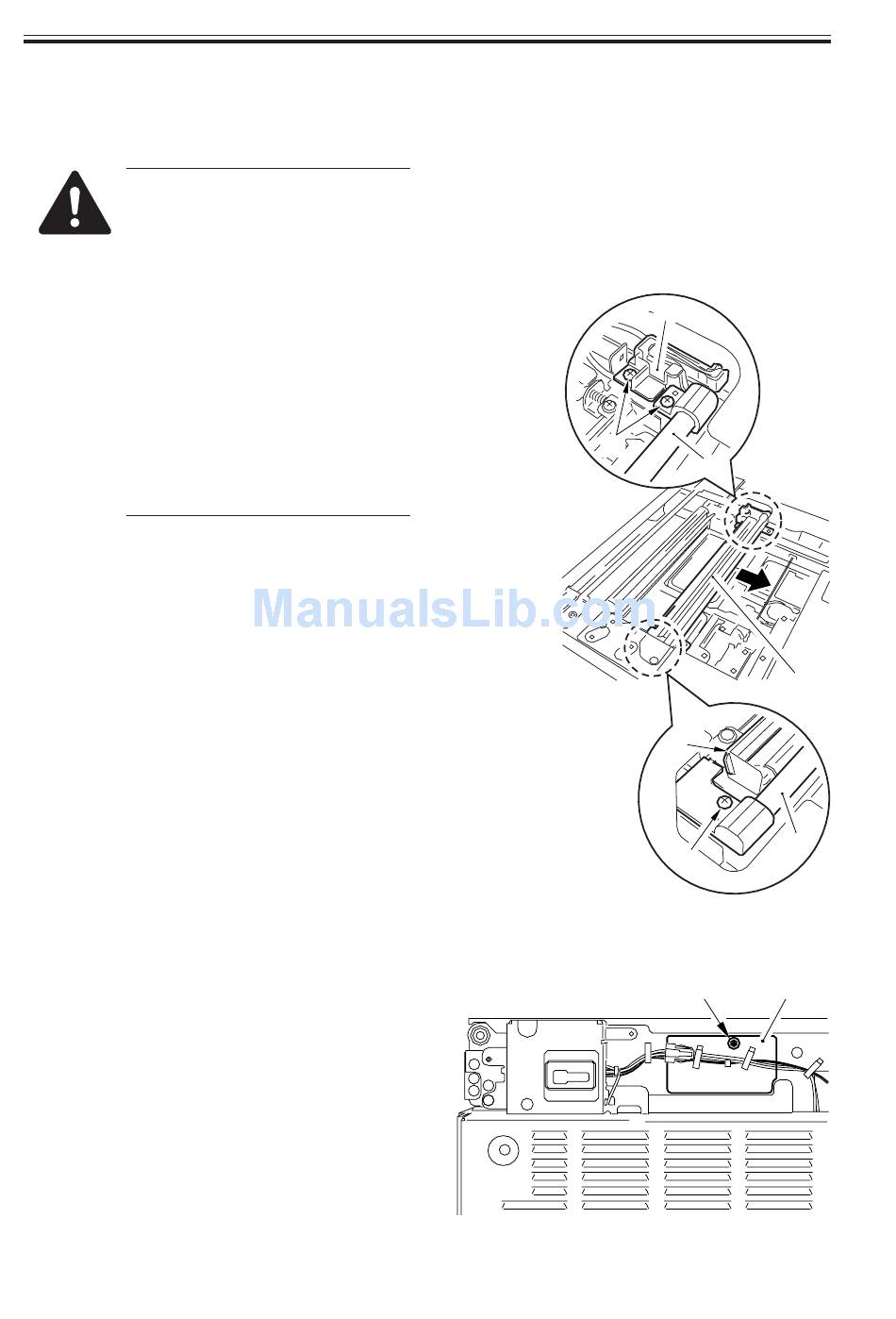

5.1 Exposure Lamp

5.1.1 Removing the Exposure Lamp

• Do not start to work if the
lamp is hot.
• Do not leave fingerprints on
the surface of the lamp.
• Do not subject the lamp to
impact.
• Do not touch the light win-
dow of the lamp without a
means of protection.
• Do not impose force on the
lamp.
• If the surface of the lamp is
soiled, dry wipe it.
1) Remove the copyboard glass. (p. 3-11R)
2) Remove the reader front cover
(2 screws) and the reader rear cover
(5 screws).
3) While taking care not to hold the scan-
ning lamp [1] and the reflecting shade
[2], move the No. 1 mirror base [3] as
far as the cut-off in the frame.
4) Remove the three screws [4] from the
No. 1 mirror base, and detach the scan-
ning lamp [1] together with the cable
fixing plate [5].
5) Remove the screw [1], and detach the
connector cover [2] found at the rear.
2-16 R
COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON iR2200/iR2800/iR3300 REV.0 MAR. 2001
[5]
[4]
[1]
[2]
[4]
F02-501-01
[1]
F02-501-02
[3]
[1]
[2]
