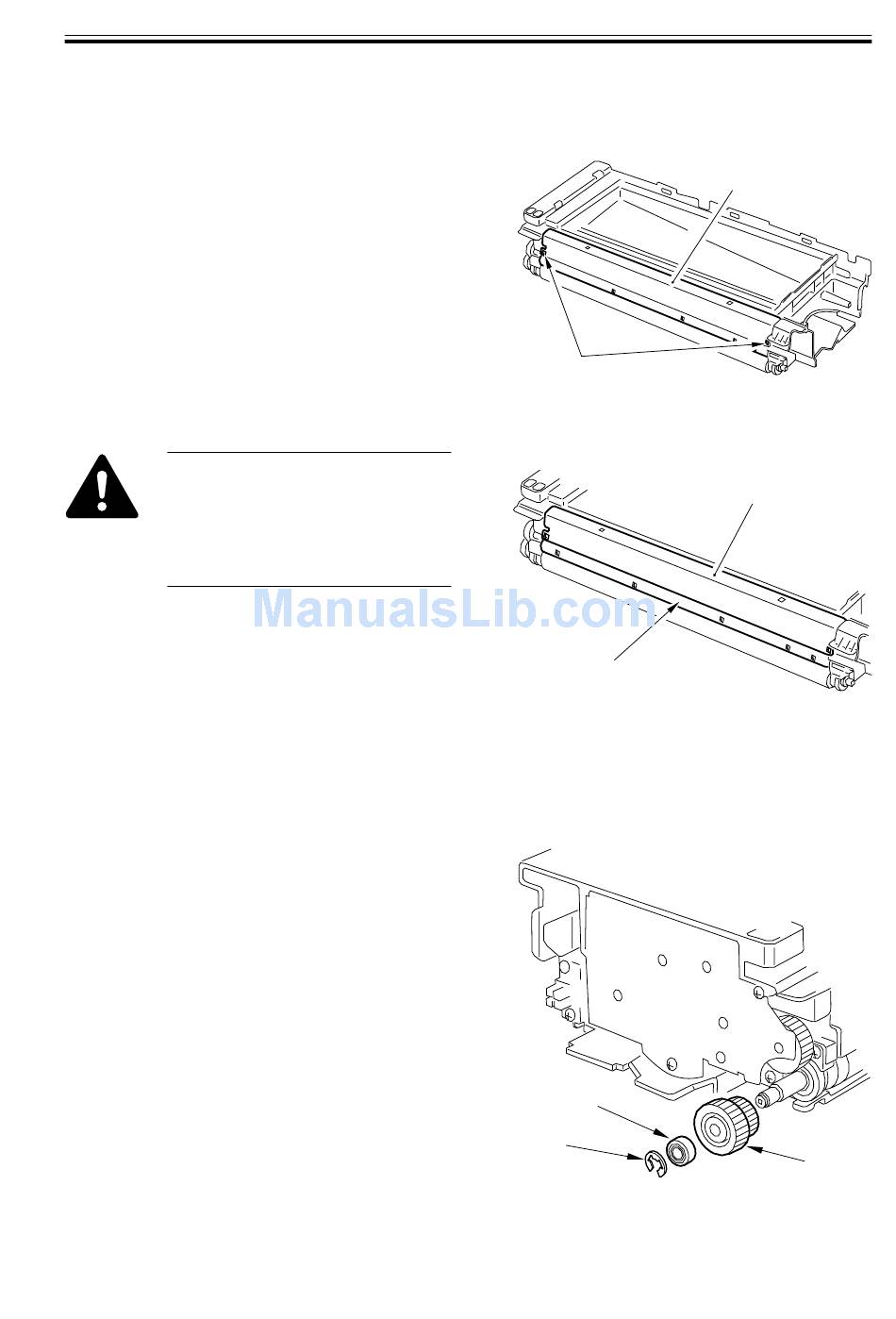

9.5.5 Removing the Blade Base Unit

1) Remove the developing assembly upper
cover. (p. 4-34P)
2) Remove the two screws [1], and detach
the blade base unit [2].
The blade [1] and the blade base
[2] of the blade base unit are ad-
justed to a high accuracy at the
factory. Do not disassemble the
unit.

9.5.6 Removing the Developing Cylinder

1) Remove the developing assembly upper
cover. (p. 4-34P)
2) Remove the E-ring [1], bearing [2], and
gear [3].
COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON iR2200/iR2800/iR3300 REV.0 MAR. 2001
CHAPTER 4 IMAGE FORMATION SYSTEM
[1]
F04-905-05
[1]
F04-905-06
[2]
[1]
F04-905-07
[2]
[2]
[3]
4-35 P
