CHAPTER 10 INNER 2 WAY TRAY-A1
2.2 Delivery to the No. 2 Delivery Slot

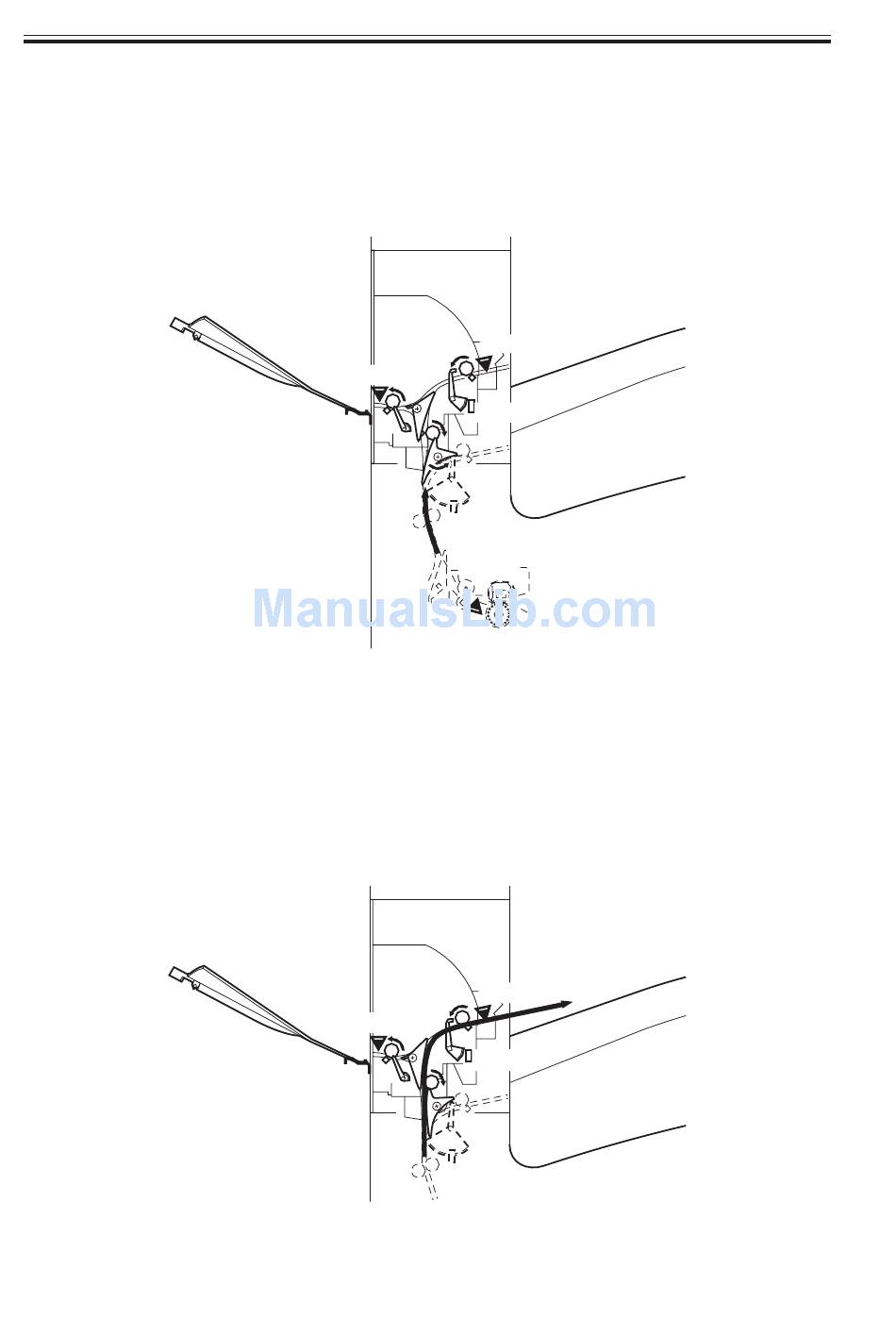

Sheets are sent to the No. 2 delivery slot as follows:
1) A sheet arrives from the host machine's delivery assembly. A specific period of
time after the leading edge of the sheet reaches the fixing/feeding sensor (PS13), the 2-
way delivery inlet motor (M7) and the 2-way delivery outlet motor (M8) start to rotate.
2) The 2-way delivery solenoid goes on, and the paper switches to the No. 2
delivery slot. Then, the 2-way delivery inlet motor and the 2-way delivery outlet motor
continue to rotate to send the sheet to the No. 2 delivery slot.
When the trailing edge of the sheet leaves the No. 2 delivery sensor (PS19B), the 2-way
delivery inlet motor and the 2-way delivery outlet motor stop to rotate.
10-4 P
COPYRIGHT © 2001 CANON INC.
No. 3
delivery slot
PS21B
F10-202-01
No. 3
delivery slot
PS21B
F10-202-02
2000 2000 2000 2000
No. 2 delivery slot
PS20B
PS19B
No. 1 delivery slot
S14
PS13
No. 2 delivery slot
PS20B
PS19B
No. 1 delivery slot
S14
CANON iR2200/iR2800/iR3300 REV.0 MAR. 2001
