CHAPTER 6 FIXING SYSTEM

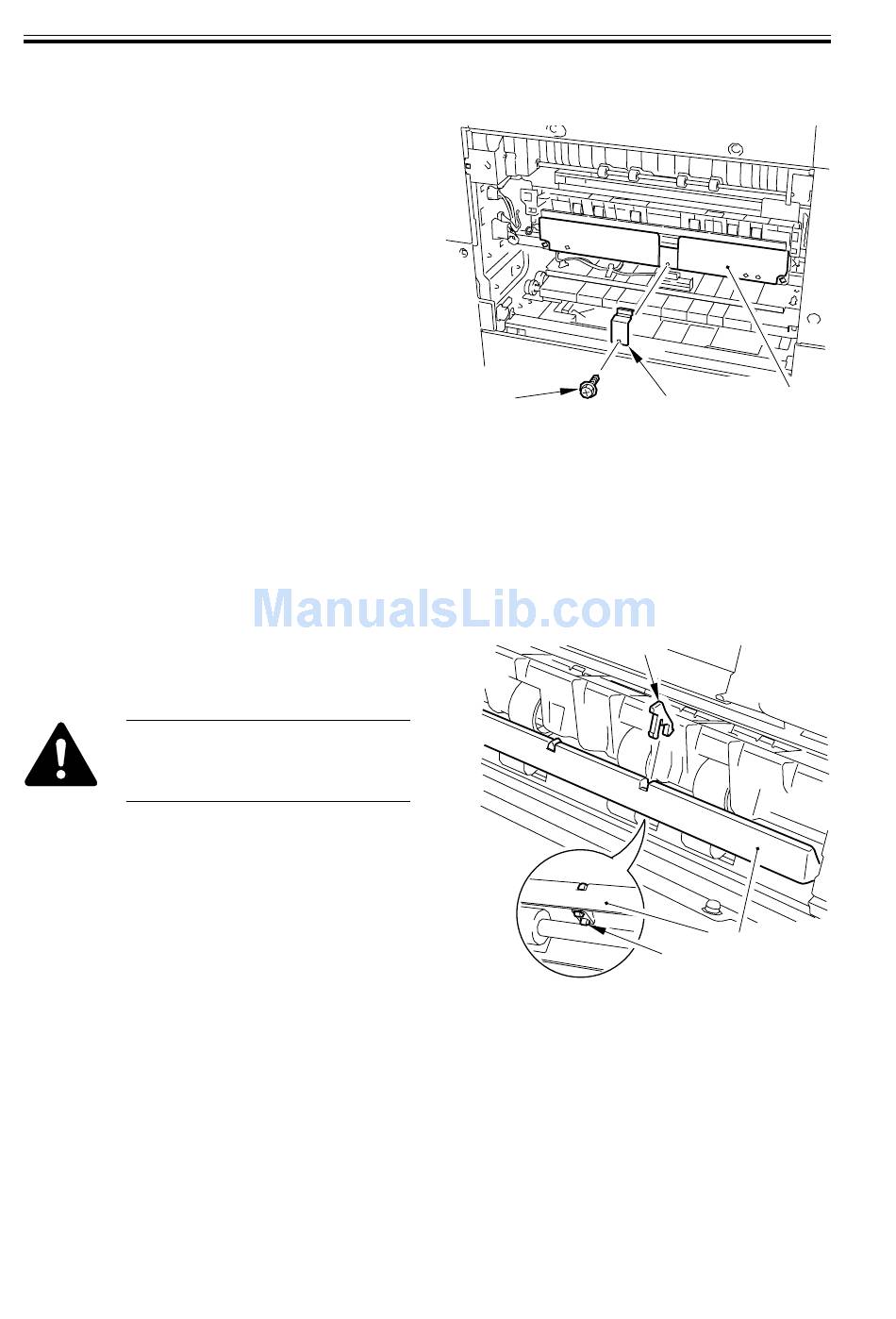

4.1.7 Removing the Cleaning Roller Unit
1) Remove the screw [1], and detach the
outlet guide support plate [2].
2) Remove the cleaning roller unit [3].
4.1.8 Removing the Lower Guide Ribs
1) Remove the fixing assembly. (p. 6-13P)
2) Remove the cleaning roller unit. (See
item 4.1.7.)
3) Push the claw [3] of the five lower
guide ribs [1] from the bottom of the
lower guide [2] to free and detach.
After mounting it, look from
below to make sure that the
claw [3] is positioned correctly.
6-16 P
COPYRIGHT © 2001 CANON INC.
[1]
2000 2000 2000 2000 CANON iR2200/iR2800/iR3300 REV.0 MAR. 2001
[2]
F06-401-13
[1]
[2]
[3]
F06-401-14
[3]
