REPEAT (FORMATION OF COMPLETE TONER IMAGE)

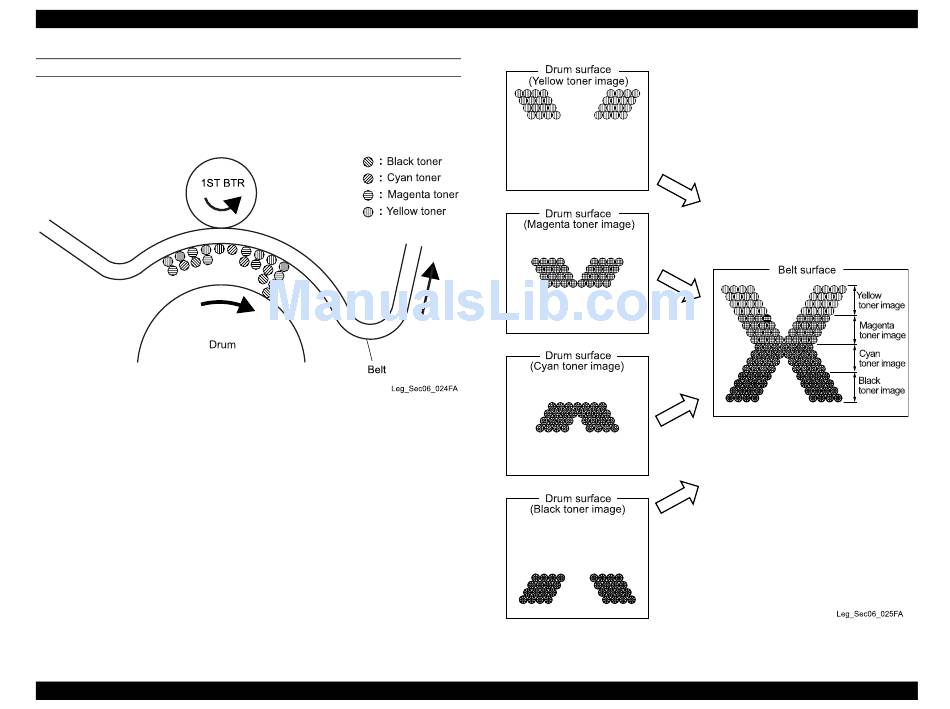

At the "Repeat (formation of complete toner image)" process, the toner images of each
color formed on the drum surface are successively transferred to the Belt to form a
complete toner image composed of the four colors on the Belt surface.
Figure 2-14. Repeat (1)
OPERATING PRINCIPLES Printer Section Operating Principle
