EPSON AcuLaser CX11/CX11F

1.2.2.4 Image performance

PRINTING START POSITION ACCURACY

Table 1-20. Printing start position accuracy
A4
Main scanning direction Reference point (c)
Sub-scanning direction Reference point (a)
c a
Printable area
d
e

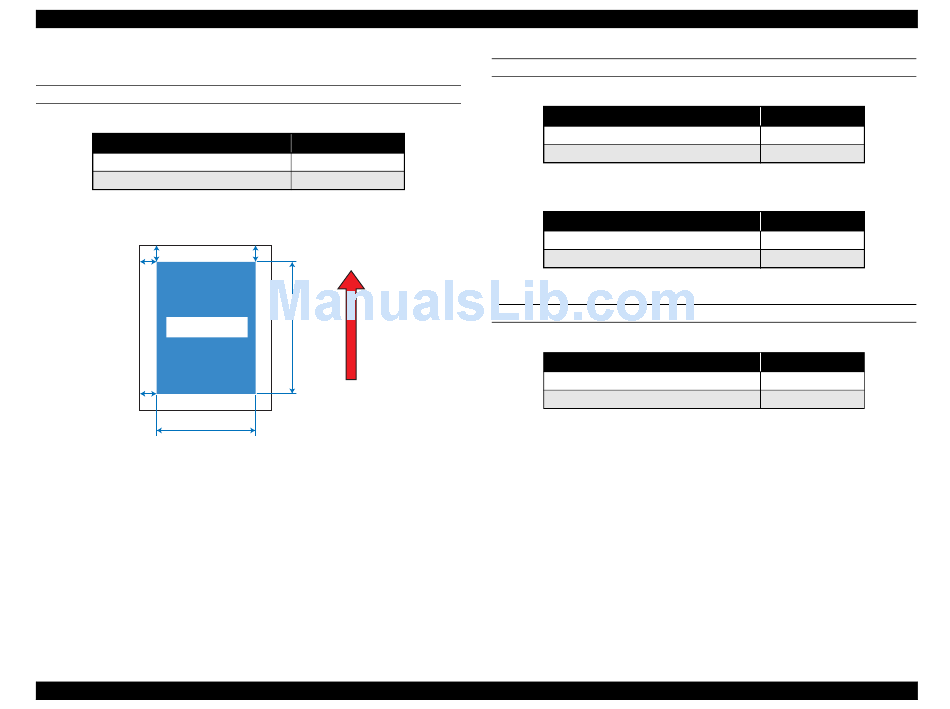

Figure 1-5. Printing start position accuracy
Simplex printing
±
2.5mm
±
2.0mm
b
f
Feed direction
manuals4you.com manuals4you.com

SKEW

Table 1-21. Skew
A4
Main scanning direction (| a-b |)
Sub-scanning direction (| c-d |)
Table 1-22. Length standard of measurement
A4
Main scanning direction (e)
Sub scanning direction (f)

HEIGHT OF CURL OF OUTPUT PAPER

Table 1-23. Height of Curl of Output Paper
Paper Type
Normal paper, plain paper
Other special papers
Note : Measurement conditions
1. Print out 20 sheets of paper continuously in order to stabilize the fuser unit.
2. After the 20 pages are printed out, pick out the 21st to 30th pages as samples, and
wait for 5 minutes before measuring them.
3. Place those papers on a flat surface with their curls facing upward, measure the length
between the flat surface and the tip of the curl of the bottommost paper, similarly
measure the other three corners, and define the largest value of four corners as the
curl value.
Revision B
Simplex printing
1.2mm
0.8mm
Simplex printing
190mm
114.5mm
Curl height
15mm or less
No regulation
36
