1.2.1.7 Outside Dimensions and Weight

Dimensions and weight of base model, FAX model, and options
Table 1-10. Dimensions and Weight
Product Width (mm) Depth (mm) Height (mm) Weight (kg)
Base model 460
FAX model 460
500-sheet cassette 440
NOTE 1: Manufacturing tolerance is ± 5 mm in dimensions and ± 0.5 kg in weight.
2: Consumables are not included in the main unit weight (controller is included).
*: ADF: Width becomes 494 mm when the LGL extension paper tray is opened.
460mm
Base model

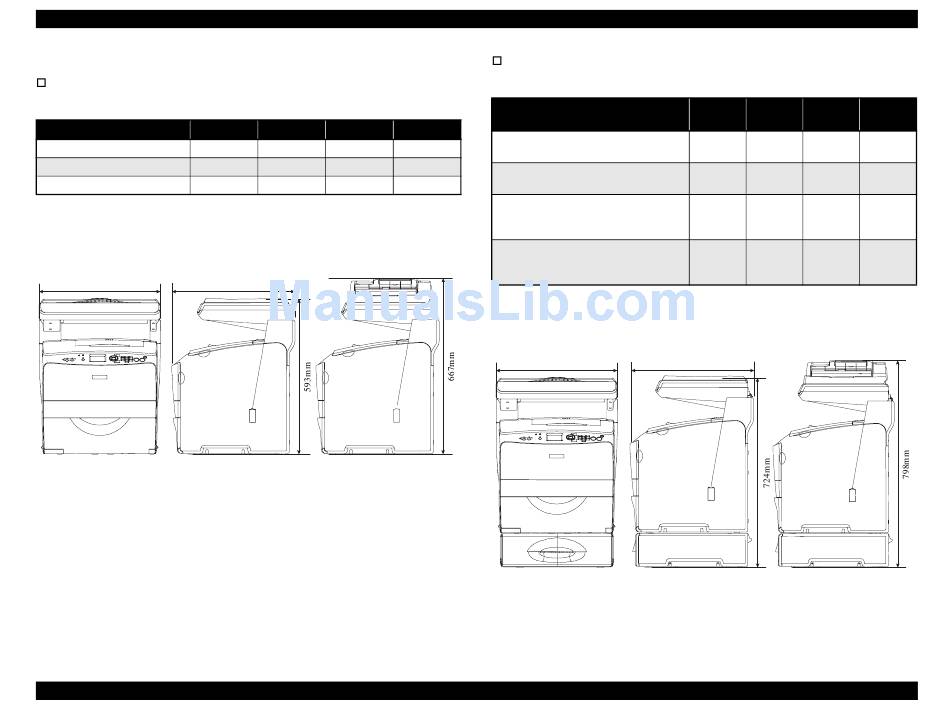

Figure 1-1. Dimensional Outline Drawing
467 593
*
467 667
446 130
467mm
FAX model
Dimensions and weight when the option cassette is installed
Table 1-11. Dimensions and Weight with Option Cassette Installed
Combination and Condition
Main unit (Base model) +
30.9
500-sheet cassette
33.1
Main unit (FAX model) +
8 500-sheet cassette
Main unit when the scanner is open
(base model) +
500-sheet cassette
Main unit when the scanner is open
(FAX model) +
500-sheet cassette
NOTE 1: Manufacturing tolerance is ± 5 mm in dimensions and ± 0.5 kg in weight.
2: Consumables are not included in the main unit weight (controller is included).
*: ADF: Width becomes 494 mm when the LGL extension paper tray is opened.
460mm
Figure 1-2. Dimensional Outline Drawing (main unit + 500-sheet cassette)
Width Depth
(mm) (mm)
460 467
*
460 467
*
460 ---
*
460 ---
467mm
Base model
Revision B
Height Weight
(mm) (kg)
724 38.9
798 41.1
979 38.9
983 41.1
FAX model
