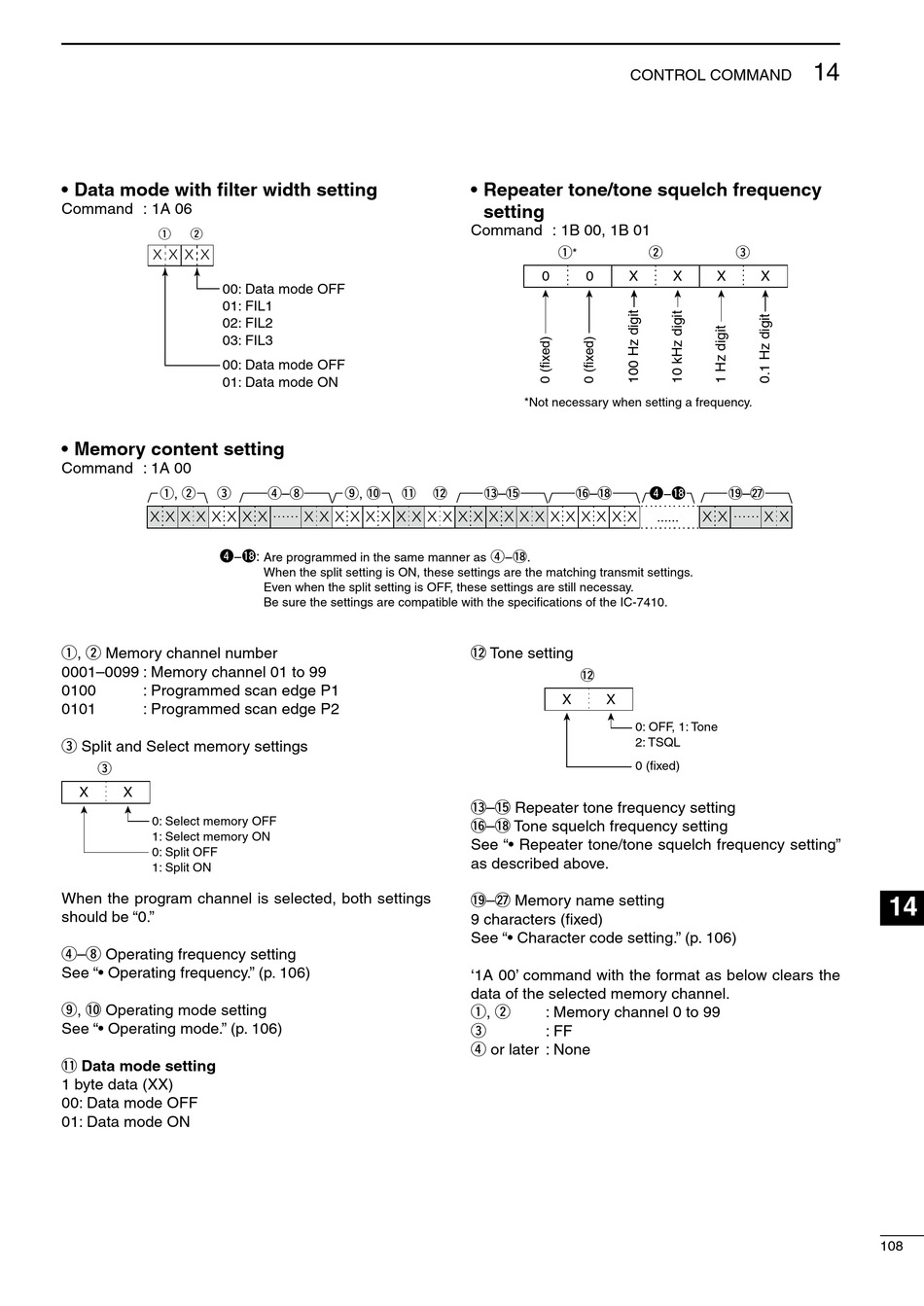

Control Command - Icom IC-i7410 Instruction Manual

• Data mode with filter width setting
Command : 1A 06
q w
00: Data mode OFF
01: FIL1
02: FIL2
03: FIL3
00: Data mode OFF
01: Data mode ON
• Memory content setting
Command : 1A 00
q, w e
r−!8 :
q, w Memory channel number
0001–0099 : Memory channel 01 to 99
0100 : Programmed scan edge P1
0101 : Programmed scan edge P2
e Split and Select memory settings
e
X X
0: Select memory OFF
1: Select memory ON
0: Split OFF
1: Split ON
When the program channel is selected, both settings
should be "0."
r–i Operating frequency setting
See "• Operating frequency." (p. 106)
o, !0 Operating mode setting
See "• Operating mode." (p. 106)
!1 Data mode setting
1 byte data (XX)
00: Data mode OFF
01: Data mode ON
r–i o, !0 !1 !2
Are programmed in the same manner as
When the split setting is ON, these settings are the matching transmit settings.
Even when the split setting is OFF, these settings are still necessay.
Be sure the settings are compatible with the specifications of the IC-7410.

CONTROL COMMAND

• Repeater tone/tone squelch frequency
setting
Command : 1B 00, 1B 01
q *
0 0 X
*Not necessary when setting a frequency.
!3 – !5 !6 – !8
r−!8 .
!2 Tone setting
!2
X X
0: OFF, 1: Tone
2: TSQL
0 (fixed)
!3 – !5 Repeater tone frequency setting
!6 – !8 Tone squelch frequency setting
See "• Repeater tone/tone squelch frequency setting"
as described above.
!9 – @7 Memory name setting
9 characters (fixed)
See "• Character code setting." (p. 106)
'1A 00' command with the format as below clears the
data of the selected memory channel.
: Memory channel 0 to 99
q, w
: FF
e
r or later : None
14
w e
X X X
!9 – @7
r−!8
......
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
108
