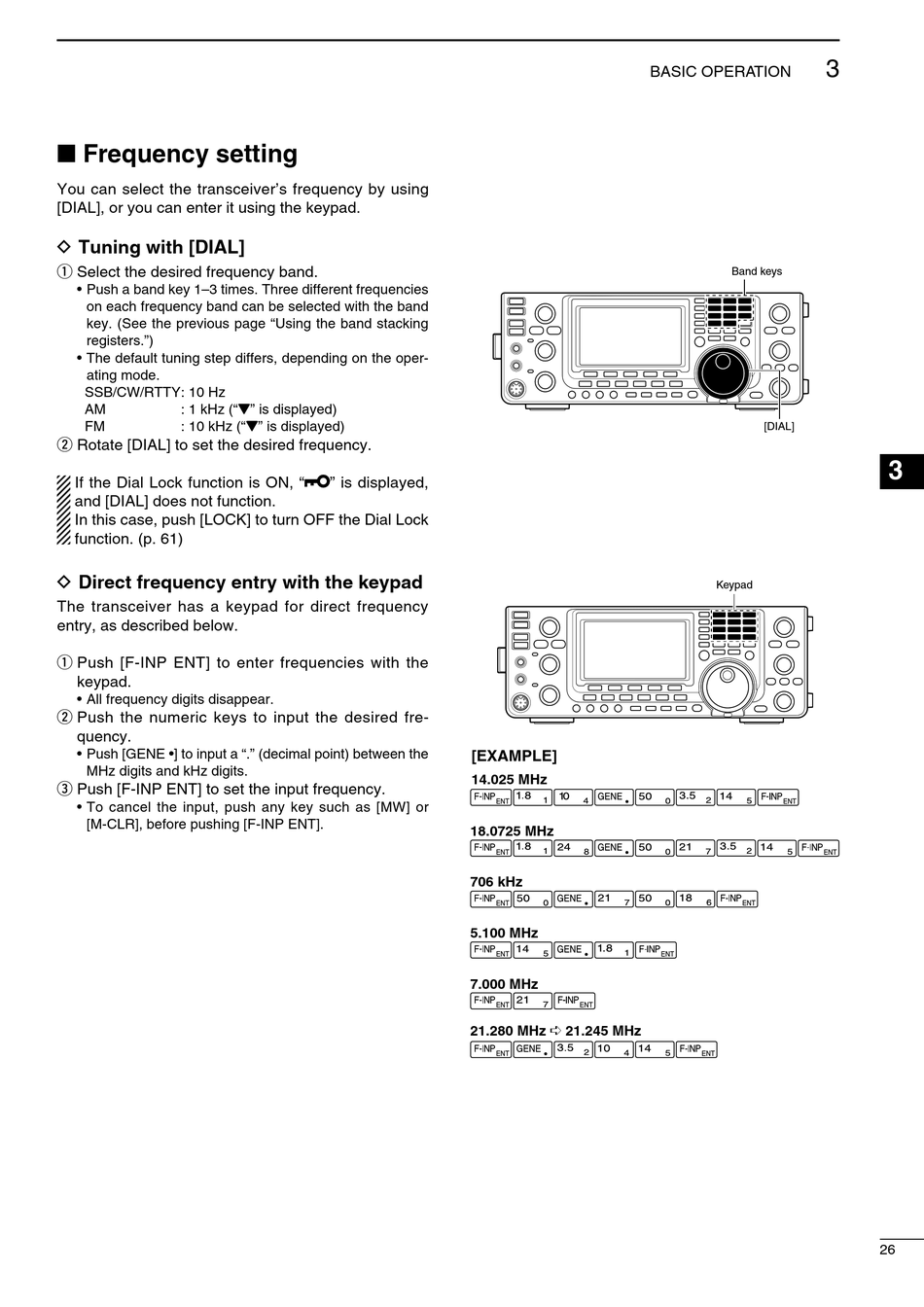

Frequency Setting; D Tuning With [Dial]; D Direct Frequency Entry With The Keypad - Icom IC-i7410 Instruction Manual

■ Frequency setting

You can select the transceiver's frequency by using
[DIAL], or you can enter it using the keypad.

D Tuning with [DIAL]

q Select the desired frequency band.
• Push a band key 1–3 times. Three different frequencies
on each frequency band can be selected with the band
key. (See the previous page "Using the band stacking
registers.")
• The default tuning step differs, depending on the oper-
ating mode.
SSB/CW/RTTY : 10 Hz
AM : 1 kHz ("Z" is displayed)
FM : 10 kHz ("Z" is displayed)
w Rotate [DIAL] to set the desired frequency.
If the Dial Lock function is ON, "
and [DIAL] does not function.
In this case, push [LOCK] to turn OFF the Dial Lock
function. (p. 61)

D Direct frequency entry with the keypad

The transceiver has a keypad for direct frequency
entry, as described below.
q Push [F-INP ENT] to enter frequencies with the
keypad.
• All frequency digits disappear.
w Push the numeric keys to input the desired fre-
quency.
• Push [GENE •] to input a "." (decimal point) between the
MHz digits and kHz digits.
e Push [F-INP ENT] to set the input frequency.
• To cancel the input, push any key such as [MW] or
[M-CLR], before pushing [F-INP ENT].
" is displayed,
[EXAMPLE]
14.025 MHz
18.0725 MHz
706 kHz
5.100 MHz
7.000 MHz
21.280 MHz ➪ 21.245 MHz
BASIC OPERATION
Band keys
[DIAL]
Keypad
