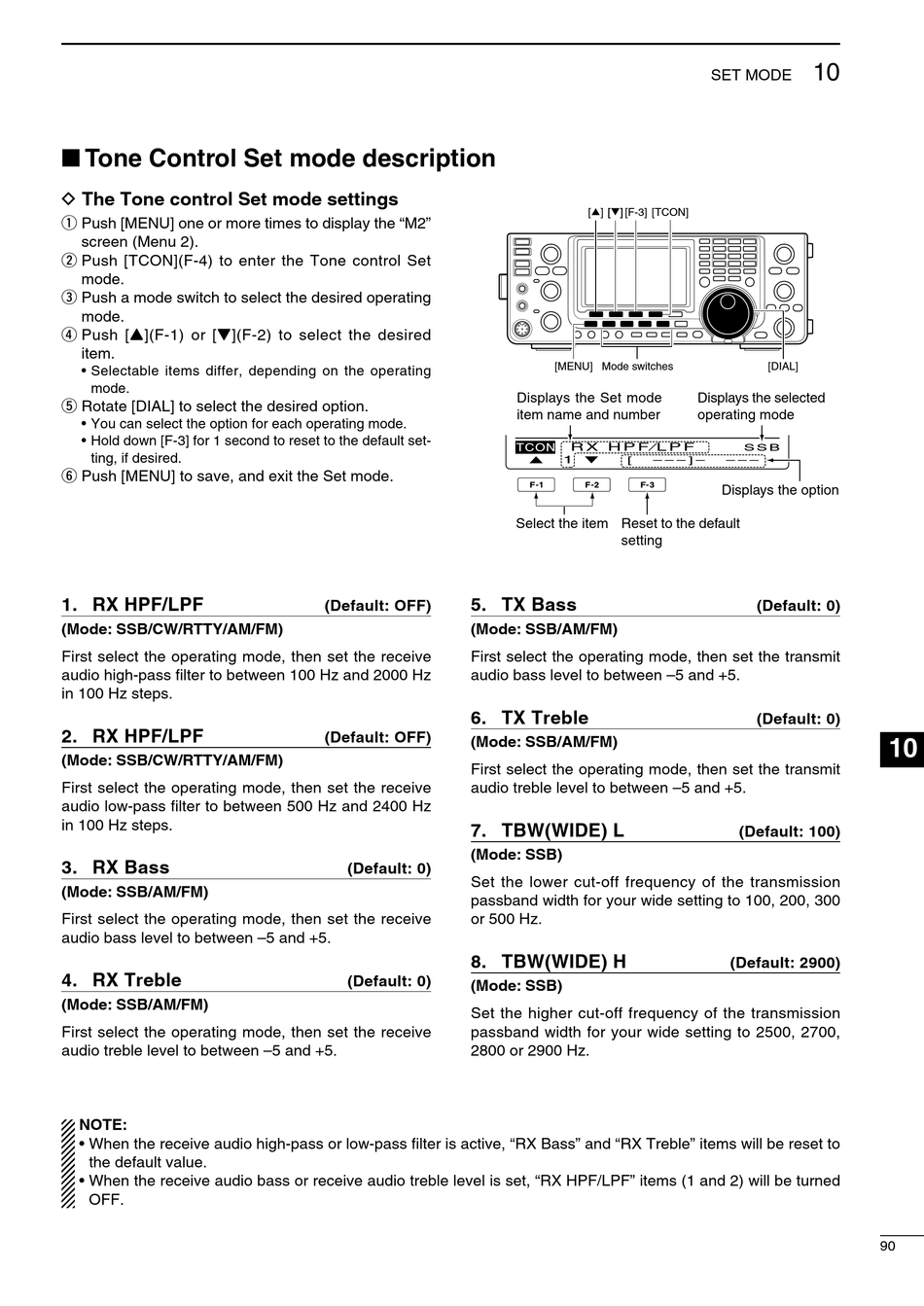

■ Tone Control Set mode description

D The Tone control Set mode settings

q Push [MENU] one or more times to display the "M2"
screen (Menu 2).
w Push [TCON](F-4) to enter the Tone control Set
mode.
e Push a mode switch to select the desired operating
mode.
r Push [Y](F-1) or [Z](F-2) to select the desired
item.
• Selectable items differ, depending on the operating
mode.
t Rotate [DIAL] to select the desired option.
• You can select the option for each operating mode.
• Hold down [F-3] for 1 second to reset to the default set-
ting, if desired.
y Push [MENU] to save, and exit the Set mode.
1. RX HPF/LPF
(Mode: SSB/CW/RTTY/AM/FM)
First select the operating mode, then set the receive
audio high-pass filter to between 100 Hz and 2000 Hz
in 100 Hz steps.
2. RX HPF/LPF
(Mode: SSB/CW/RTTY/AM/FM)
First select the operating mode, then set the receive
audio low-pass filter to between 500 Hz and 2400 Hz
in 100 Hz steps.
3. RX Bass
(Mode: SSB/AM/FM)
First select the operating mode, then set the receive
audio bass level to between –5 and +5.
4. RX Treble
(Mode: SSB/AM/FM)
First select the operating mode, then set the receive
audio treble level to between –5 and +5.
NOTE:
• When the receive audio high-pass or low-pass filter is active, "RX Bass" and "RX Treble" items will be reset to
the default value.
• When the receive audio bass or receive audio treble level is set, "RX HPF/LPF" items (1 and 2) will be turned
OFF.
5.
(Default: OFF)
(Mode: SSB/AM/FM)
First select the operating mode, then set the transmit
audio bass level to between –5 and +5.
6.
(Default: OFF)
(Mode: SSB/AM/FM)
First select the operating mode, then set the transmit
audio treble level to between –5 and +5.
7.
(Mode: SSB)
(Default: 0)
Set the lower cut-off frequency of the transmission
passband width for your wide setting to 100, 200, 300
or 500 Hz.
8.
(Default: 0)
(Mode: SSB)
Set the higher cut-off frequency of the transmission
passband width for your wide setting to 2500, 2700,
2800 or 2900 Hz.
