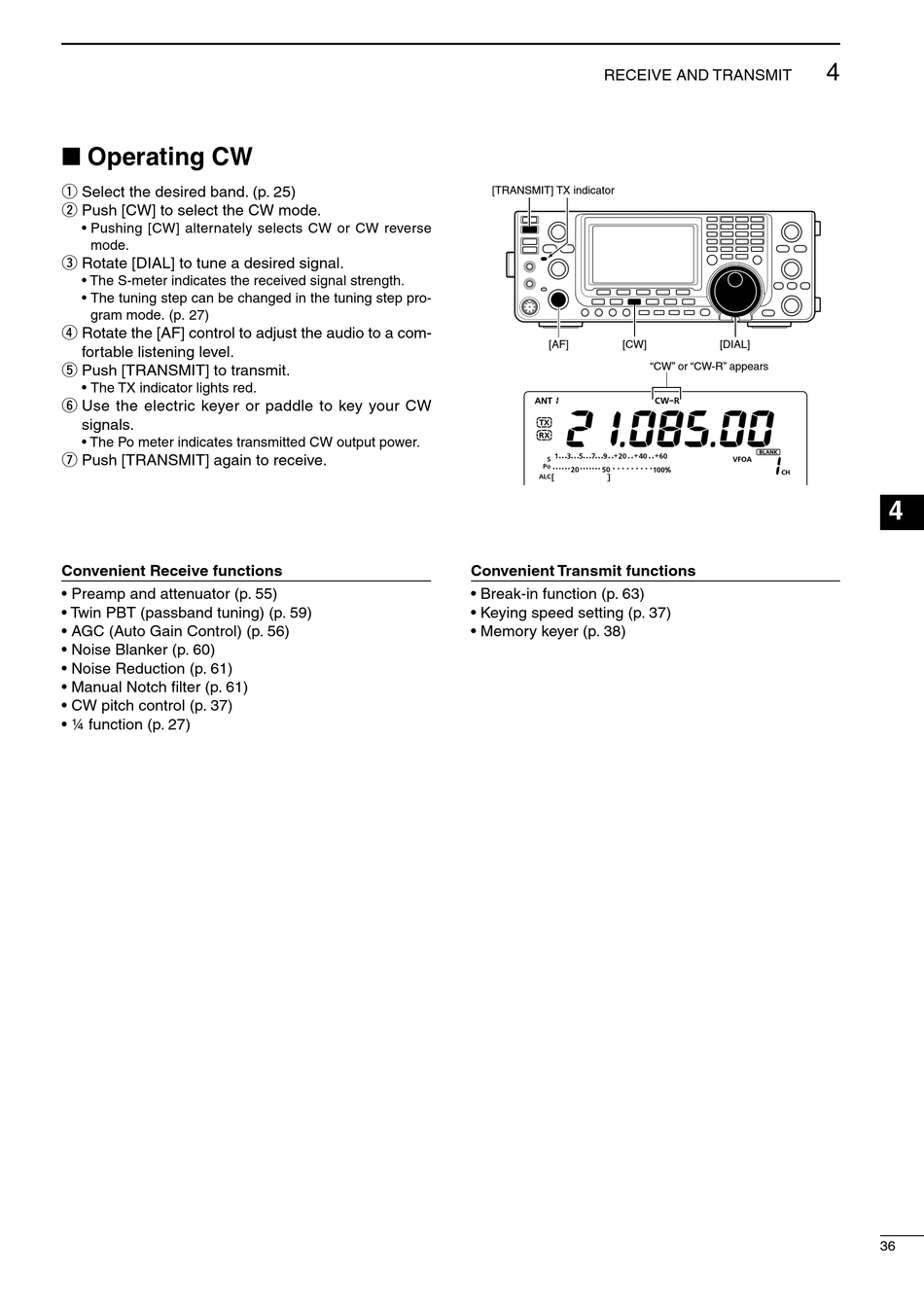

■ Operating CW

q Select the desired band. (p. 25)
w Push [CW] to select the CW mode.
• Pushing [CW] alternately selects CW or CW reverse
mode.
e Rotate [DIAL] to tune a desired signal.
• The S-meter indicates the received signal strength.
• The tuning step can be changed in the tuning step pro-
gram mode. (p. 27)
r Rotate the [AF] control to adjust the audio to a com-
fortable listening level.
t Push [TRANSMIT] to transmit.
• The TX indicator lights red.
y Use the electric keyer or paddle to key your CW
signals.
• The Po meter indicates transmitted CW output power.
u Push [TRANSMIT] again to receive.
Convenient Receive functions
• Preamp and attenuator (p. 55)
• Twin PBT (passband tuning) (p. 59)
• AGC (Auto Gain Control) (p. 56)
• Noise Blanker (p. 60)
• Noise Reduction (p. 61)
• Manual Notch filter (p. 61)
• CW pitch control (p. 37)
• ¼ function (p. 27)
RECEIVE AND TRANSMIT
[TRANSMIT] TX indicator
[AF] [CW]
M1
A G C
Convenient Transmit functions
• Break-in function (p. 63)
• Keying speed setting (p. 37)
• Memory keyer (p. 38)
[DIAL]
"CW" or "CW-R" appears
1 / 4 K E Y S C P
