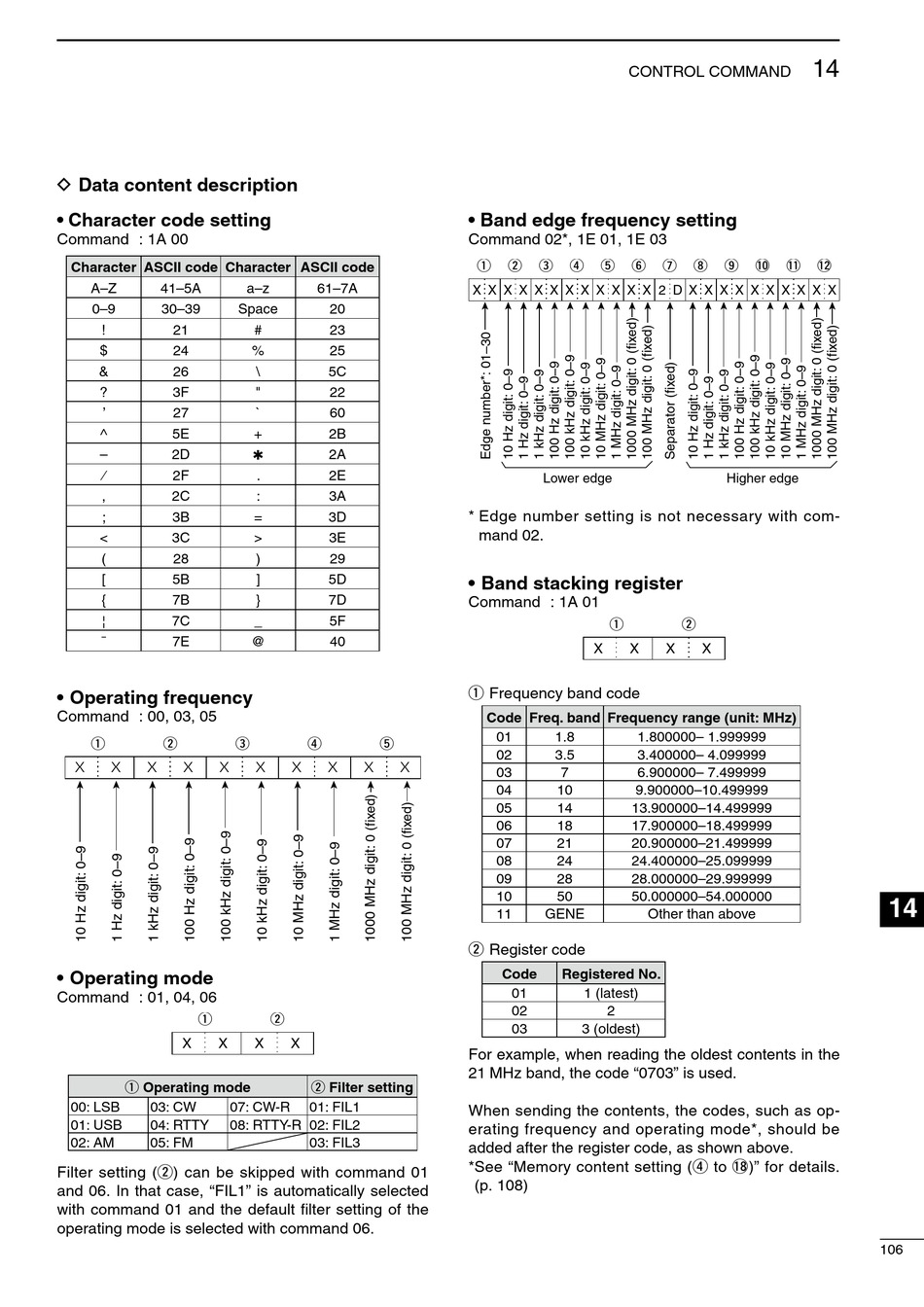

D Data content description

• Character code setting
Command : 1A 00
Character ASCII code Character ASCII code
A–Z 41–5A
0–9 30–39
! 21
$ 24
& 26
? 3F
' 27
^ 5E
– 2D
⁄ 2F
, 2C
; 3B
< 3C
( 28
[ 5B
{ 7B
¦ 7C
¯ 7E
• Operating frequency
Command : 00, 03, 05
q w
• Operating mode
Command : 01, 04, 06
q
X X
q Operating mode
00: LSB 03: CW 07: CW-R
01: USB 04: RTTY 08: RTTY-R 02: FIL2
02: AM 05: FM
Filter setting (w) can be skipped with command 01
and 06. In that case, "FIL1" is automatically selected
with command 01 and the default filter setting of the
operating mode is selected with command 06.
a–z 61–7A
Space 20
# 23
% 25
\ 5C
" 22
` 60
+ 2B
2A
✱
. 2E
: 3A
= 3D
> 3E
) 29
] 5D
} 7D
_ 5F
@ 40
e r t
w
X X
w Filter setting
01: FIL1
03: FIL3
CONTROL COMMAND
• Band edge frequency setting
Command 02*, 1E 01, 1E 03
q w e r t y
X X X X X X X X X X X X 2 D X X X X X X X X X X
Lower edge
* Edge number setting is not necessary with com-
mand 02.
• Band stacking register
Command : 1A 01
q
X X
q Frequency band code
Code Freq. band Frequency range (unit: MHz)
01 1.8 1.800000– 1.999999
02 3.5 3.400000– 4.099999
03 7 6.900000– 7.499999
04 10 9.900000–10.499999
05 14 13.900000–14.499999
06 18 17.900000–18.499999
07 21 20.900000–21.499999
08 24 24.400000–25.099999
09 28 28.000000–29.999999
10 50 50.000000–54.000000
11 GENE
w Register code
Code Registered No.
01 1 (latest)
02 2
03 3 (oldest)
For example, when reading the oldest contents in the
21 MHz band, the code "0703" is used.
When sending the contents, the codes, such as op-
erating frequency and operating mode*, should be
added after the register code, as shown above.
* See "Memory content setting (r to !8 ) " for details.
(p. 108)
14
u i o !0 !1 !2
Higher edge
w
X X
Other than above
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
106
