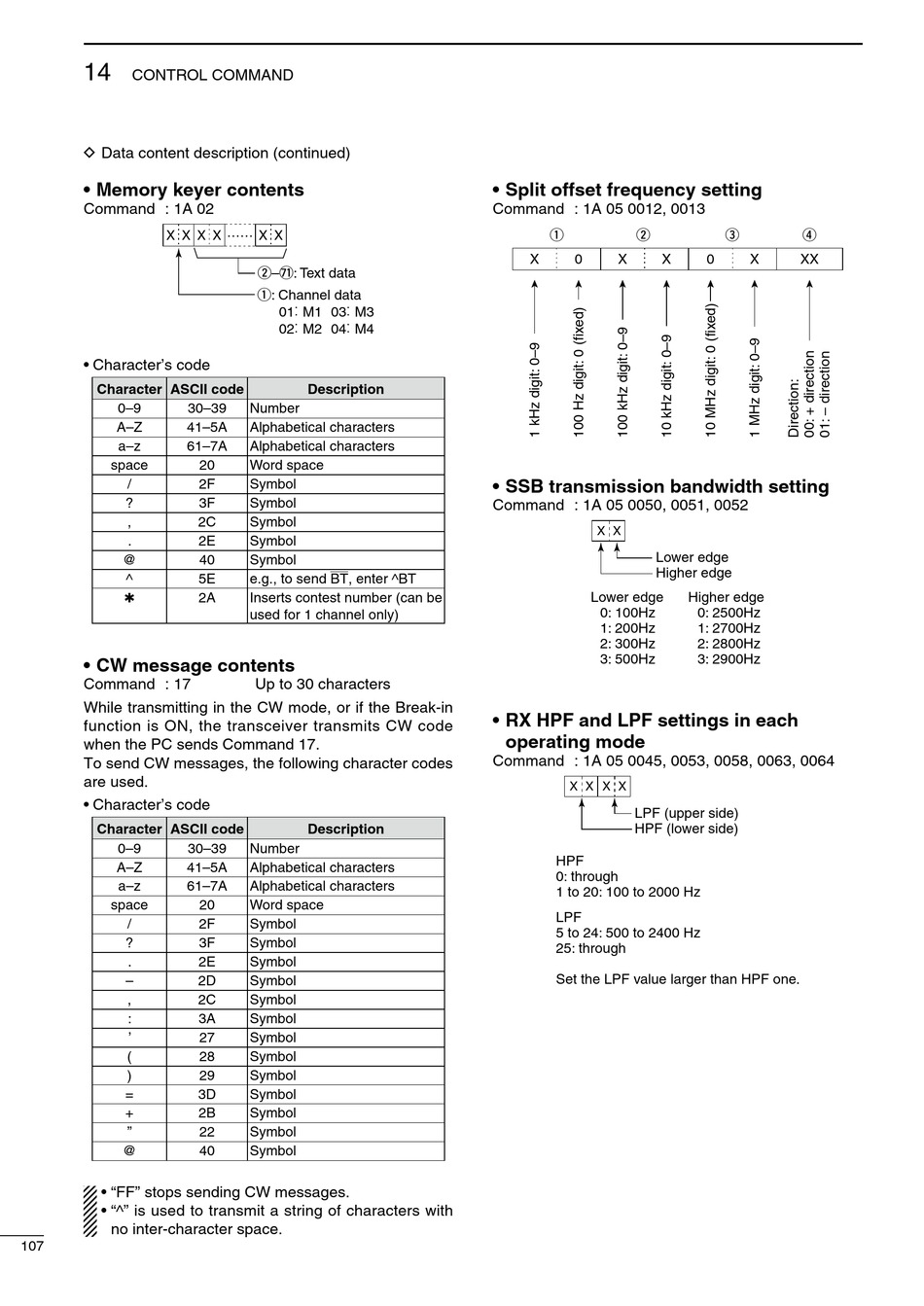

CONTROL COMMAND
D Data content description (continued)
• Memory keyer contents
Command : 1A 02
X X X ...... X X
X
• Character's code
Character ASCII code
0–9 30–39
A–Z 41–5A
a–z 61–7A
space
/
?
,
.
@
^
✱
• CW message contents
Command : 17
While transmitting in the CW mode, or if the Break-in
function is ON, the transceiver transmits CW code
when the PC sends Command 17.
To send CW messages, the following character codes
are used.
• Character's code
Character ASCII code
0–9 30–39
A–Z 41–5A
a–z 61–7A
space
/
?
.
–
,
:
'
(
)
=
+
"
@
• "FF" stops sending CW messages.
• "^" is used to transmit a string of characters with
no inter-character space.
107
w–&1 : Text data
q: Channel data
01 M1 03 M3
02 M2 04 M4
Description
Number
Alphabetical characters
Alphabetical characters
20 Word space
2F Symbol
3F Symbol
2C Symbol
2E Symbol
40 Symbol
5E e.g., to send BT, enter ^BT
2A Inserts contest number (can be
used for 1 channel only)
Up to 30 characters
Description
Number
Alphabetical characters
Alphabetical characters
20 Word space
2F Symbol
3F Symbol
2E Symbol
2D Symbol
2C Symbol
3A Symbol
27 Symbol
28 Symbol
29 Symbol
3D Symbol
2B Symbol
22 Symbol
40 Symbol
• Split offset frequency setting
Command : 1A 05 0012, 0013
q w
X 0 X X
• SSB transmission bandwidth setting
Command : 1A 05 0050, 0051, 0052
X X
Lower edge
Higher edge
Lower edge
0: 100Hz
1: 200Hz
2: 300Hz
3: 500Hz
• RX HPF and LPF settings in each

operating mode

Command : 1A 05 0045, 0053, 0058, 0063, 0064
X X X X
LPF (upper side)
HPF (lower side)
HPF
0: through
1 to 20: 100 to 2000 Hz
LPF
5 to 24: 500 to 2400 Hz
25: through
Set the LPF value larger than HPF one.
e r
0 X XX
Higher edge
0: 2500Hz
1: 2700Hz
2: 2800Hz
3: 2900Hz
