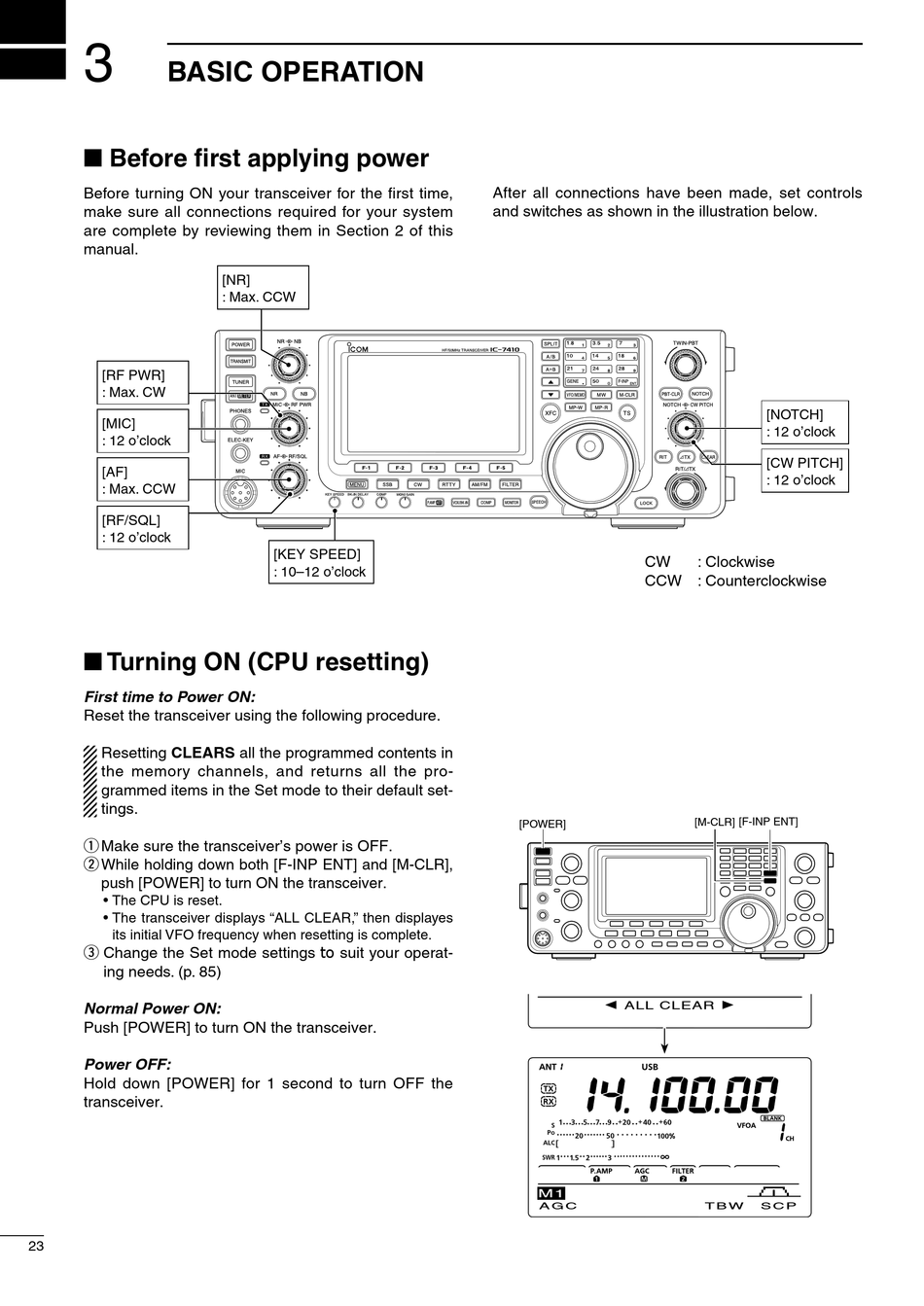

BASIC OPERATION

■ Before first applying power

Before turning ON your transceiver for the first time,
make sure all connections required for your system
are complete by reviewing them in Section 2 of this
manual.
[RF PWR]
: Max. CW
[MIC]
: 12 o'clock
[AF]
: Max. CCW
[RF/SQL]
: 12 o'clock

■ Turning ON (CPU resetting)

First time to Power ON:
Reset the transceiver using the following procedure.
Resetting CLEARS all the programmed contents in
the memory channels, and returns all the pro-
grammed items in the Set mode to their default set-
tings.
q Make sure the transceiver's power is OFF.
w While holding down both [F-INP ENT] and [M-CLR],
push [POWER] to turn ON the transceiver.
• The CPU is reset.
• The transceiver displays "ALL CLEAR," then displayes
its initial VFO frequency when resetting is complete.
e Change the Set mode settings to suit your operat-
ing needs. (p. 85)
Normal Power ON:
Push [POWER] to turn ON the transceiver.
Power OFF:
Hold down [POWER] for 1 second to turn OFF the
transceiver.
23
[NR]
: Max. CCW
[KEY SPEED]
: 10–12 o'clock
After all connections have been made, set controls
and switches as shown in the illustration below.
CW
CCW : Counterclockwise
[POWER]
Ω ALL CLEAR ≈
M1
A G C
[NOTCH]
: 12 o'clock
[CW PITCH]
: 12 o'clock
: Clockwise
[M-CLR] [F-INP ENT]
T B W S C P
