6
FUNCTIONS FOR TRANSMIT

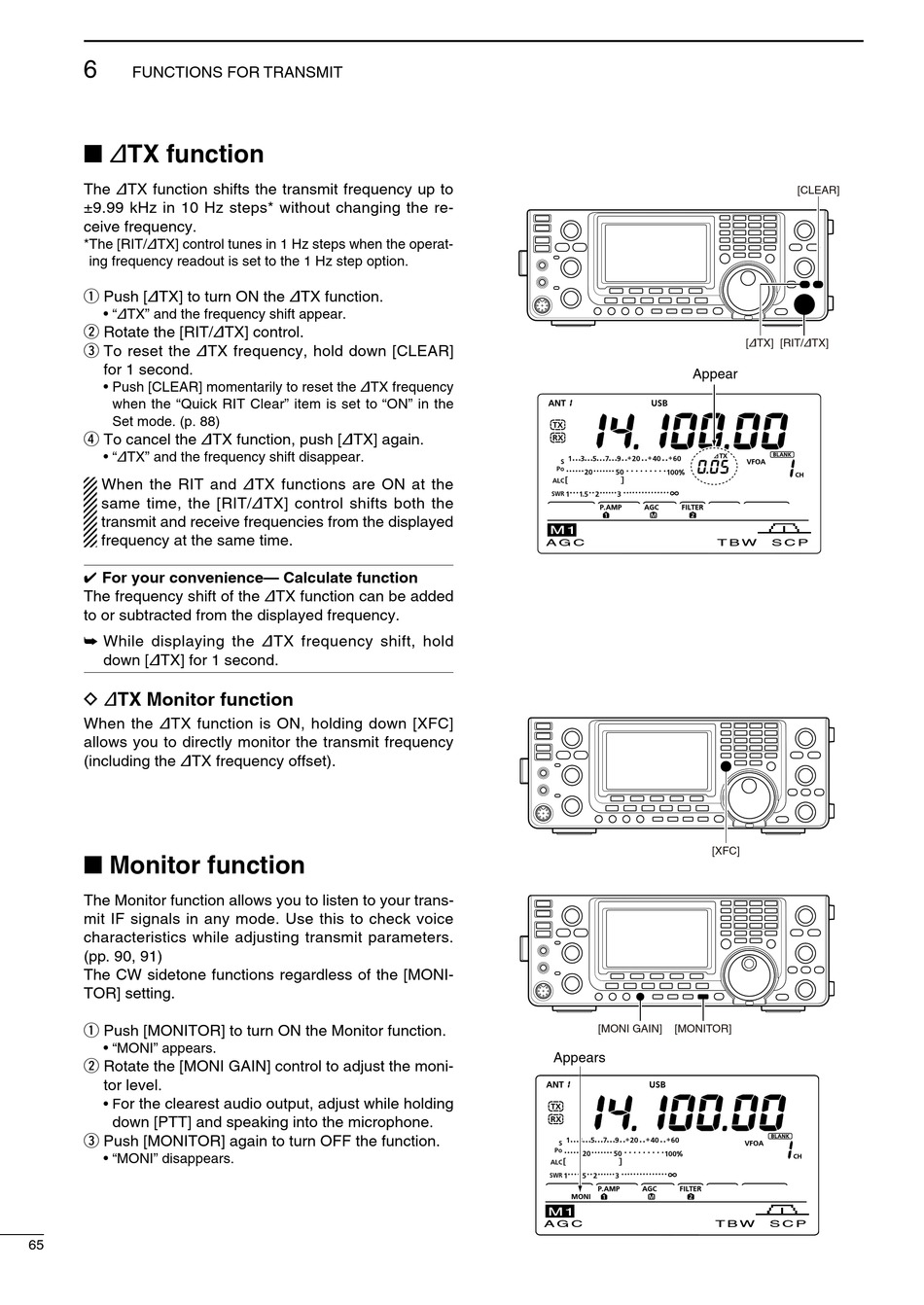

■ ∂TX function
The ∂TX function shifts the transmit frequency up to
±9.99 kHz in 10 Hz steps* without changing the re-
ceive frequency.
* The [RIT/∂TX] control tunes in 1 Hz steps when the operat-
ing frequency readout is set to the 1 Hz step option.
q Push [∂TX] to turn ON the ∂TX function.
• "∂TX" and the frequency shift appear.
w Rotate the [RIT/∂TX] control.
e To reset the ∂TX frequency, hold down [CLEAR]
for 1 second.
• Push [CLEAR] momentarily to reset the ∂TX frequency
when the "Quick RIT Clear" item is set to "ON" in the
Set mode. (p. 88)
r To cancel the ∂TX function, push [∂TX] again.
• "∂TX" and the frequency shift disappear.
When the RIT and ∂TX functions are ON at the
same time, the [RIT/∂TX] control shifts both the
transmit and receive frequencies from the displayed
frequency at the same time.
✔ For your convenience— Calculate function
The frequency shift of the ∂TX function can be added
to or subtracted from the displayed frequency.
➥ While displaying the ∂TX frequency shift, hold
down [∂TX] for 1 second.
D ∂TX Monitor function
When the ∂TX function is ON, holding down [XFC]
allows you to directly monitor the transmit frequency
(including the ∂TX frequency offset).

■ Monitor function

The Monitor function allows you to listen to your trans-
mit IF signals in any mode. Use this to check voice
characteristics while adjusting transmit parameters.
(pp. 90, 91)
The CW sidetone functions regardless of the [MONI-
TOR] setting.
q Push [MONITOR] to turn ON the Monitor function.
• "MONI" appears.
w Rotate the [MONI GAIN] control to adjust the moni-
tor level.
or the clearest audio output, adjust while holding
• F
down [PTT] and speaking into the microphone.
e Push [MONITOR] again to turn OFF the function.
• "MONI" disappears.
65
Appear
M1
A G C T B W
[XFC]
[MONI GAIN] [MONITOR]
Appears
M1
A G C T B W
[CLEAR]
[∂TX] [RIT/∂TX]
S C P
S C P
