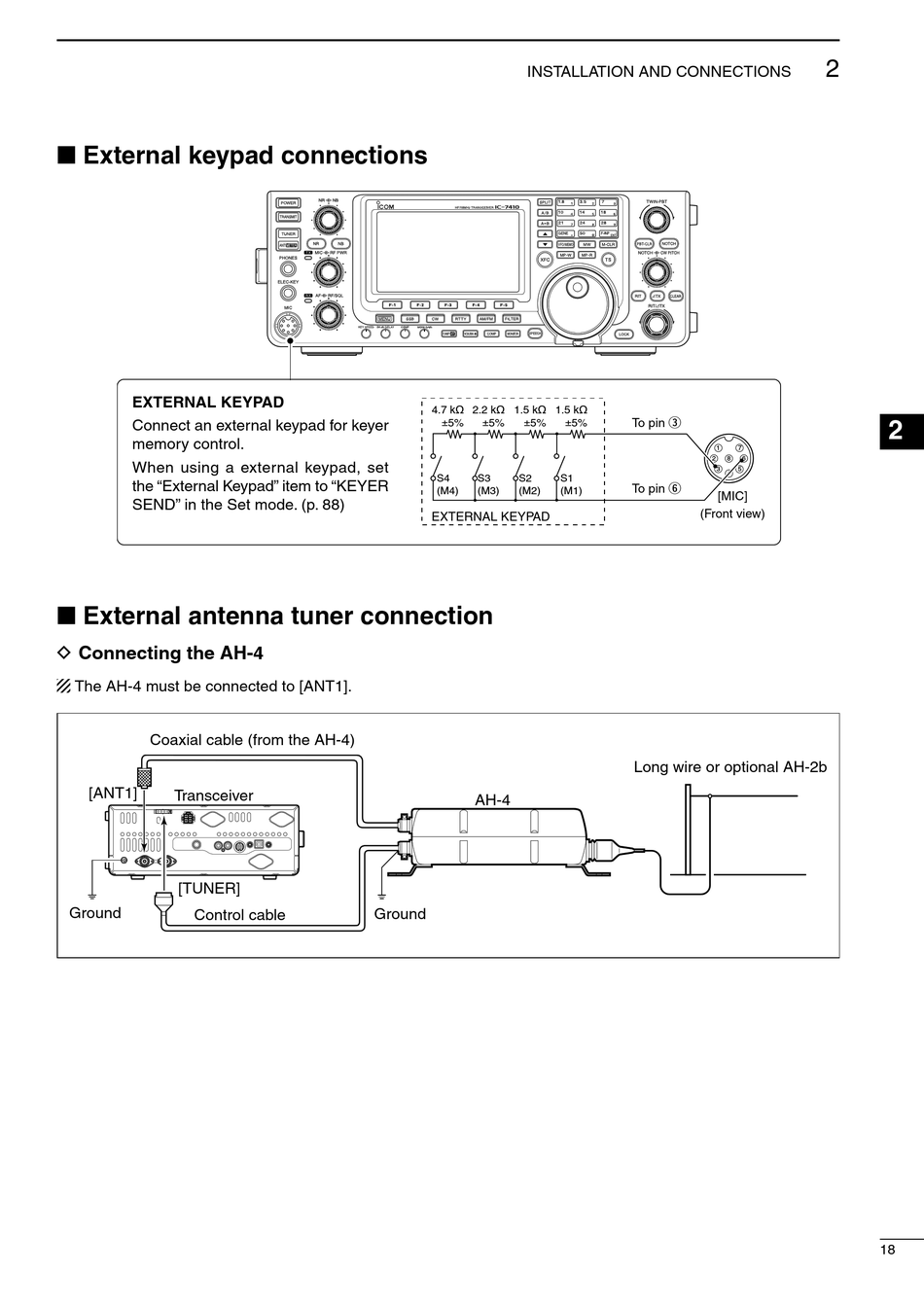

■ External keypad connections

EXTERNAL KEYPAD
Connect an external keypad for keyer
memory control.
When using a external keypad, set
the "External Keypad" item to "KEYER
SEND" in the Set mode. (p. 88)

■ External antenna tuner connection

D Connecting the AH-4

The AH-4 must be connected to [ANT1].
Coaxial cable (from the AH-4)
[ANT1]
Transceiver
[TUNER]
Ground
Control cable
INSTALLATION AND CONNECTIONS
4.7 kø 2.2 kø 1.5 kø
± 5% ± 5% ± 5%
S4 S3 S2
(M4) (M3) (M2)
EXTERNAL KEYPAD
AH-4
Ground
1.5 kø
± 5% To pin e
1
2 8
3
4
S1
To pin y
(M1)
[MIC]
(Front view)
Long wire or optional AH-2b
