Memo Pad Function; Memory Operation; D Writing The Displayed Data Into A Memo Pad; D Calling Up A Memo Pad - Icom IC-i7410 Instruction Manual

■ Memo Pad function

The transceiver has a Memo Pad function to store
the displayed data for easy writing and recalling. The
memo pads are separate from the Memory channels.
The default number of memo pads is 5. However, you
can increase the number to 10 in the "Memopad Num-
bers" item of the Set mode, if desired. (p. 87)

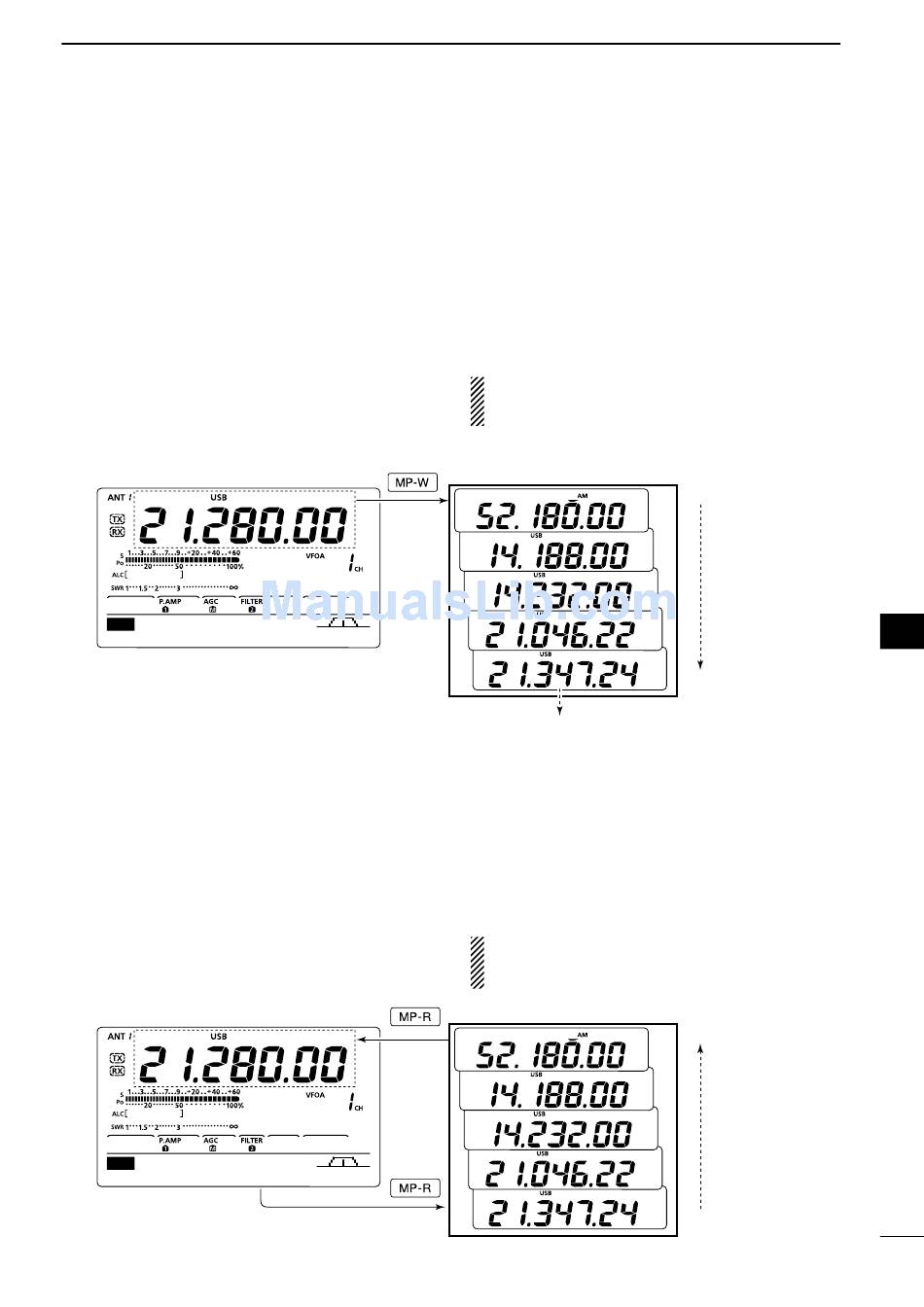

D Writing the displayed data into a memo pad

You can store the displayed data by pushing [MP-W].
When you store the 6th data into memo pads, the old-
est stored entry is automatically erased, to make room
for the new data.
M1
A G C
In this example, 21.347 MHz (USB) will be
erased when 21.280 MHz (LSB) is written.

D Calling up a memo pad

You can call up a memo pad by pushing [MP-R] while
in either the VFO or Memory mode.
• The memo pad data is called up, starting from the most
recently written.
M1
A G C
T B W S C P
T B W S C P

MEMORY OPERATION

Memo pads are convenient when you want to memo-
rize the displayed data temporarily, such as when you
find a DX station in a pile-up, or when a desired station
is busy for a long time and you want to temporarily
search for other stations.
Use the transceiver's memo pads instead of relying on
hastily scribbled notes that are easily misplaced.
NOTE: Each memo pad must have its own unique
set of data; memo pads having identical data cannot
be written.
Memo pads
Erased
When you call up a memo pad, the previously dis-
played data is automatically stored in a temporary
pad. The temporary pad can be recalled by pushing
[MP-R].
• You may think there are 6 memo pads because 6 different
frequencies (5 in memo pads and 1 in the temporary pad)
are called up by [MP-R].
If you change the data called up from a memo pad,
the stored temporary pad data is replaced with the
changed data.
Memo pads
7
Newest
Oldest
Newest
Oldest
