4
RECEIVE AND TRANSMIT

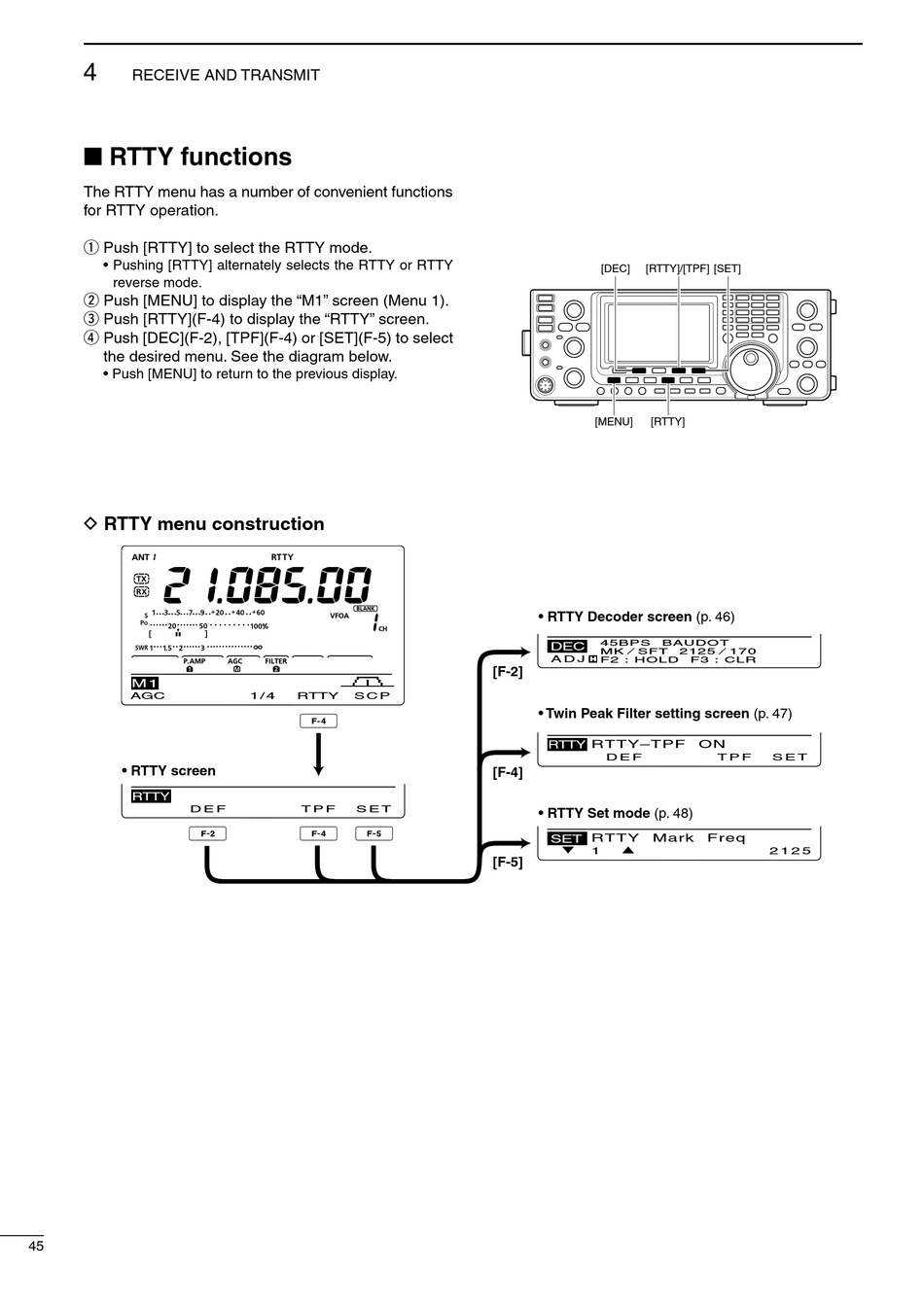

■ RTTY functions

The RTTY menu has a number of convenient functions
for RTTY operation.
q Push [RTTY] to select the RTTY mode.
• Pushing [RTTY] alternately selects the RTTY or RTTY
reverse mode.
w Push [MENU] to display the "M1" screen (Menu 1).
e Push [RTTY](F-4) to display the "RTTY" screen.
r Push [DEC](F-2), [TPF](F-4) or [SET](F-5) to select
the desired menu. See the diagram below.
• Push [MENU] to return to the previous display.

D RTTY menu construction

M1
AGC
• RTTY screen
RTTY
D E F
45
1 / 4 RTTY S C P
T P F S E T
[DEC] [RTTY]/[TPF] [SET]
[MENU] [RTTY]
• RTTY Decoder screen (p. 46)
45BPS BAUDOT
DEC
MK ⁄ SFT
A D J
F2 : HOLD
H
[F-2]
• Twin Peak Filter setting screen (p. 47)
RTTY–TPF
RTTY
D E F
[F-4]
• RTTY Set mode (p. 48)
RTTY Mark
SET
√ ∫
1
[F-5]
2125 ⁄ 170
F3 : CLR
ON
T P F S E T
Freq
2 1 2 5
