2
INSTALLATION AND CONNECTIONS
■ Linear amplifier connections (Continued)

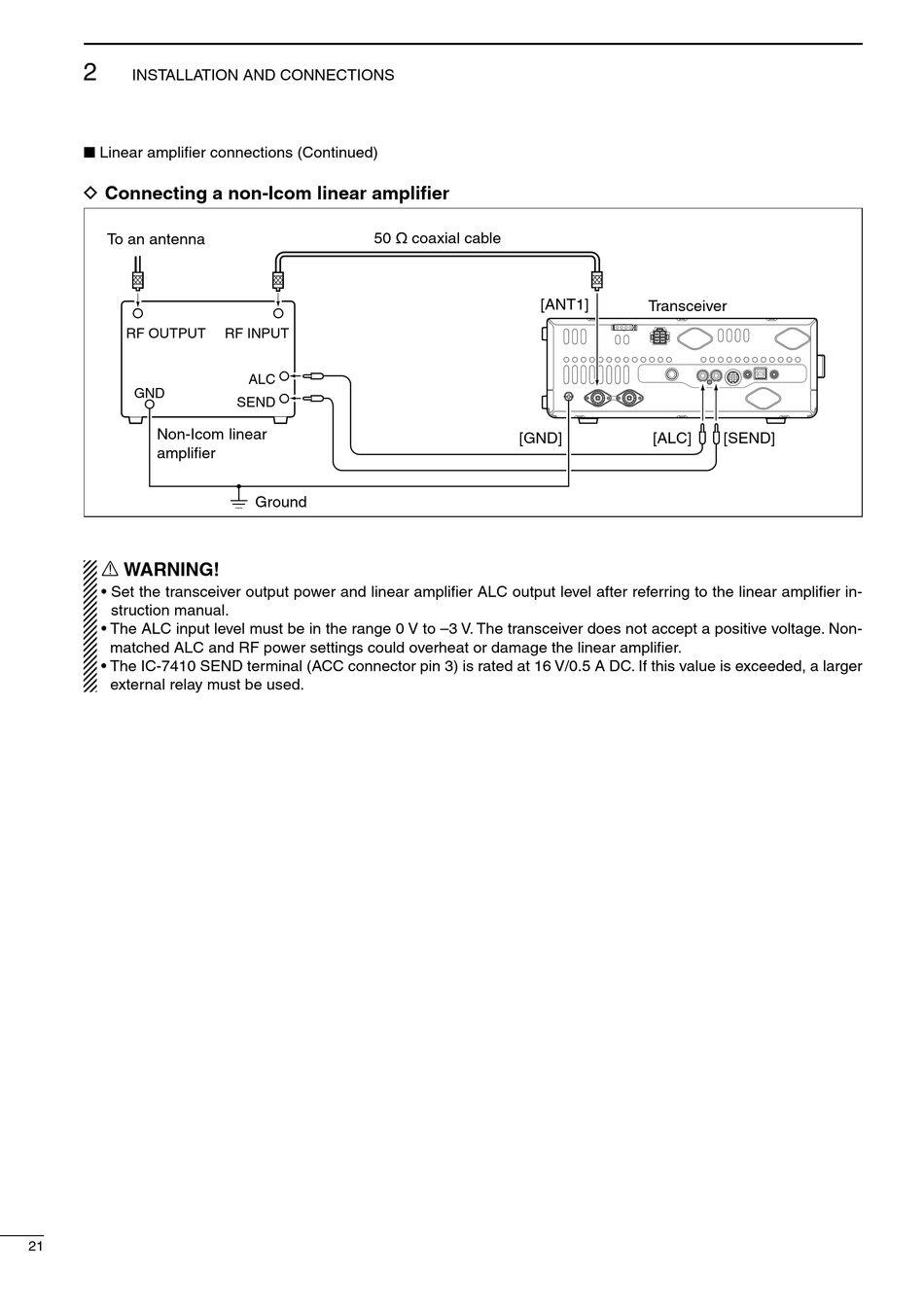

D Connecting a non-Icom linear amplifier

To an antenna
RF OUTPUT
GND
Non-Icom linear
amplifier
R WARNING!
• Set the transceiver output power and linear amplifier ALC output level after referring to the linear amplifier in-
struction manual.
• The ALC input level must be in the range 0 V to –3 V. The transceiver does not accept a positive voltage. Non-
matched ALC and RF power settings could overheat or damage the linear amplifier.
• The IC-7410 SEND terminal (ACC connector pin 3) is rated at 16 V/0.5 A DC. If this value is exceeded, a larger
external relay must be used.
21
50 ø coaxial cable
RF INPUT
ALC
SEND
Ground
[ANT1]
Transceiver
[GND] [ALC] [SEND]
