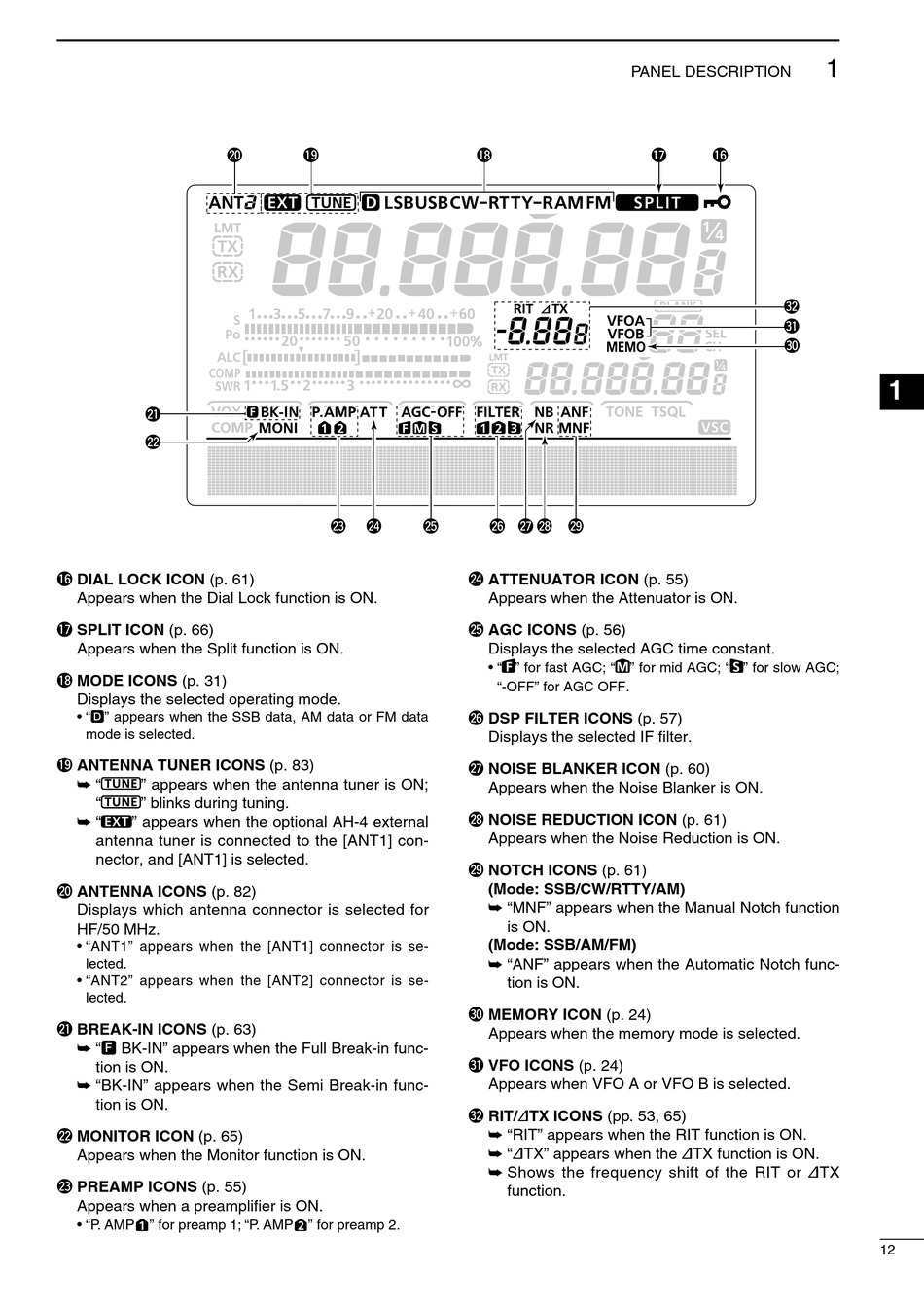

Icom IC-i7410 Instruction Manual page 19

@0
@1
@2
!6 DIAL LOCK ICON (p. 61)
Appears when the Dial Lock function is ON.
!7 SPLIT ICON (p. 66)
Appears when the Split function is ON.
!8 MODE ICONS (p. 31)
Displays the selected operating mode.
• "D" appears when the SSB data, AM data or FM data
mode is selected.
!9 ANTENNA TUNER ICONS (p. 83)
➥ " " appears when the antenna tuner is ON;
" " blinks during tuning.
➥ " " appears when the optional AH-4 external
antenna tuner is connected to the [ANT1] con-
nector, and [ANT1] is selected.
@0 ANTENNA ICONS (p. 82)
Displays which antenna connector is selected for
HF/50 MHz.
• "ANT1" appears when the [ANT1] connector is se-
lected.
• "ANT2" appears when the [ANT2] connector is se-
lected.
@1 BREAK-IN ICONS (p. 63)
➥ "F BK-IN" appears when the Full Break-in func-
tion is ON.
➥ "BK-IN" appears when the Semi Break-in func-
tion is ON.
@2 MONITOR ICON (p. 65)
Appears when the Monitor function is ON.
@3 PREAMP ICONS (p. 55)
Appears when a preamplifier is ON.
• "P. AMP " for preamp 1; "P. AMP
!9 !8
@3 @4 @5
@4 ATTENUATOR ICON (p. 55)
@5 AGC ICONS (p. 56)
@6 DSP FILTER ICONS (p. 57)
@7 NOISE BLANKER ICON (p. 60)
@8 NOISE REDUCTION ICON (p. 61)
@9 NOTCH ICONS (p. 61)
#0 MEMORY ICON (p. 24)
#1 VFO ICONS (p. 24)
#2 RIT/∂TX ICONS (pp. 53, 65)
" for preamp 2.
PANEL DESCRIPTION
!7
@6 @7 @8 @9
Appears when the Attenuator is ON.
Displays the selected AGC time constant.
• " " for fast AGC; " " for mid AGC; " " for slow AGC;
"-OFF" for AGC OFF.
Displays the selected IF filter.
Appears when the Noise Blanker is ON.
Appears when the Noise Reduction is ON.
(Mode: SSB/CW/RTTY/AM)
➥ "MNF" appears when the Manual Notch function
is ON.
(Mode: SSB/AM/FM)
➥ "ANF" appears when the Automatic Notch func-
tion is ON.
Appears when the memory mode is selected.
Appears when VFO A or VFO B is selected.
➥ "RIT" appears when the RIT function is ON.
➥ "∂TX" appears when the ∂TX function is ON.
➥ Shows the frequency shift of the RIT or ∂TX
function.
1
!6
#2
#1
#0
12
