Icom IC-i7410 Instruction Manual page 14

1

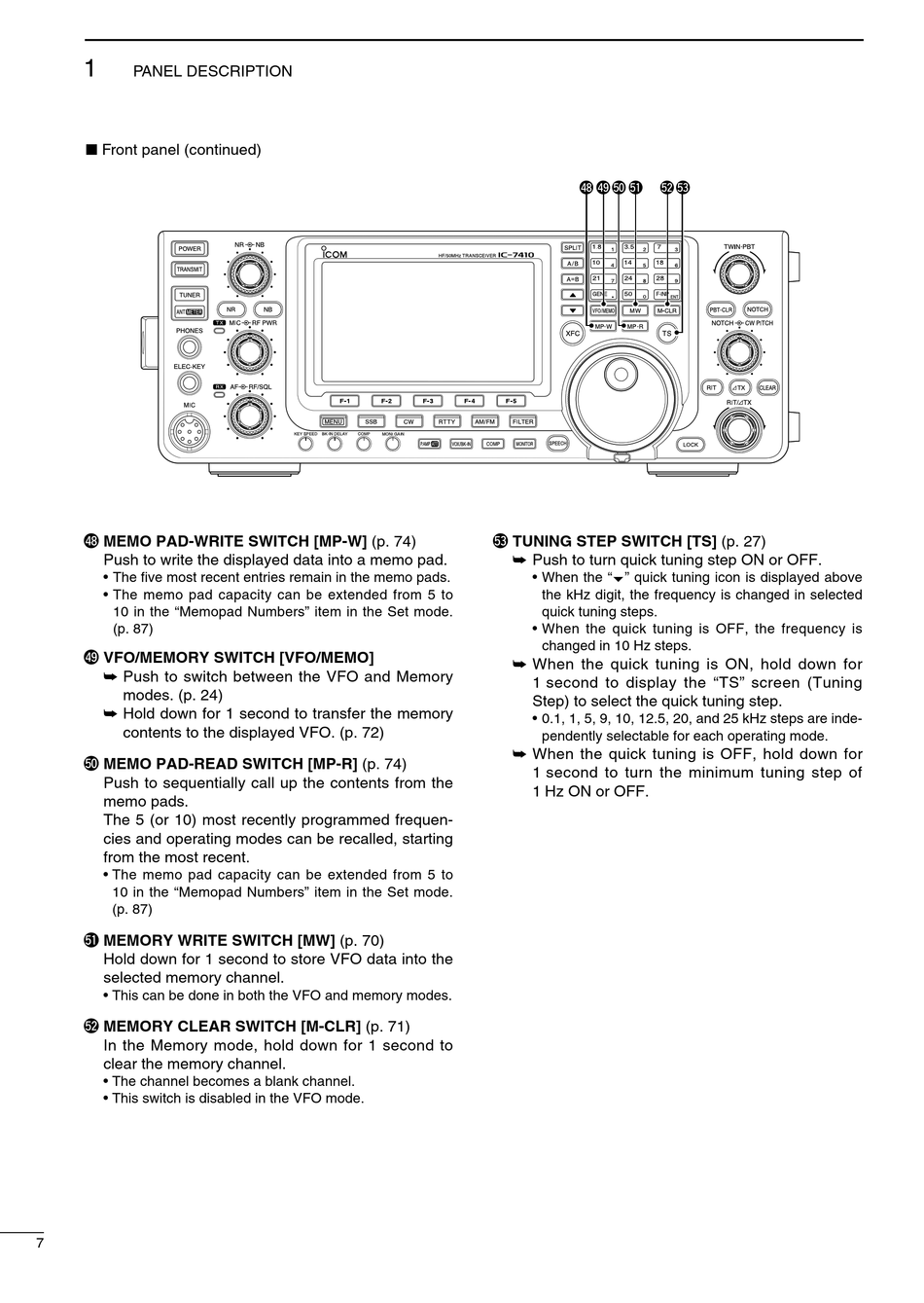

PANEL DESCRIPTION
■ Front panel (continued)
$8 MEMO PAD-WRITE SWITCH [MP-W] (p. 74)
Push to write the displayed data into a memo pad.
• The five most recent entries remain in the memo pads.
• The memo pad capacity can be extended from 5 to
10 in the "Memopad Numbers" item in the Set mode.
(p. 87)
$9 VFO/MEMORY SWITCH [VFO/MEMO]
➥ Push to switch between the VFO and Memory
modes. (p. 24)
➥ Hold down for 1 second to transfer the memory
contents to the displayed VFO. (p. 72)
%0 MEMO PAD-READ SWITCH [MP-R] (p. 74)
Push to sequentially call up the contents from the
memo pads.
The 5 (or 10) most recently programmed frequen-
cies and operating modes can be recalled, starting
from the most recent.
• The memo pad capacity can be extended from 5 to
10 in the "Memopad Numbers" item in the Set mode.
(p. 87)
%1 MEMORY WRITE SWITCH [MW] (p. 70)
Hold down for 1 second to store VFO data into the
selected memory channel.
• This can be done in both the VFO and memory modes.
%2 MEMORY CLEAR SWITCH [M-CLR] (p. 71)
In the Memory mode, hold down for 1 second to
clear the memory channel.
• The channel becomes a blank channel.
• This switch is disabled in the VFO mode.
7
$8 $9 %0 %1 %2
%3 TUNING STEP SWITCH [TS] (p. 27)
➥ Push to turn quick tuning step ON or OFF.
• When the "" quick tuning icon is displayed above
the kHz digit, the frequency is changed in selected
quick tuning steps.
• When the quick tuning is OFF, the frequency is
changed in 10 Hz steps.
➥ When the quick tuning is ON, hold down for
1 second to display the "TS" screen (Tuning
Step) to select the quick tuning step.
• 0.1, 1, 5, 9, 10, 12.5, 20, and 25 kHz steps are inde-
pendently selectable for each operating mode.
➥ When the quick tuning is OFF, hold down for
1 second to turn the minimum tuning step of
1 Hz ON or OFF.
%3
