4
RECEIVE AND TRANSMIT
■ Electronic keyer functions (continued)

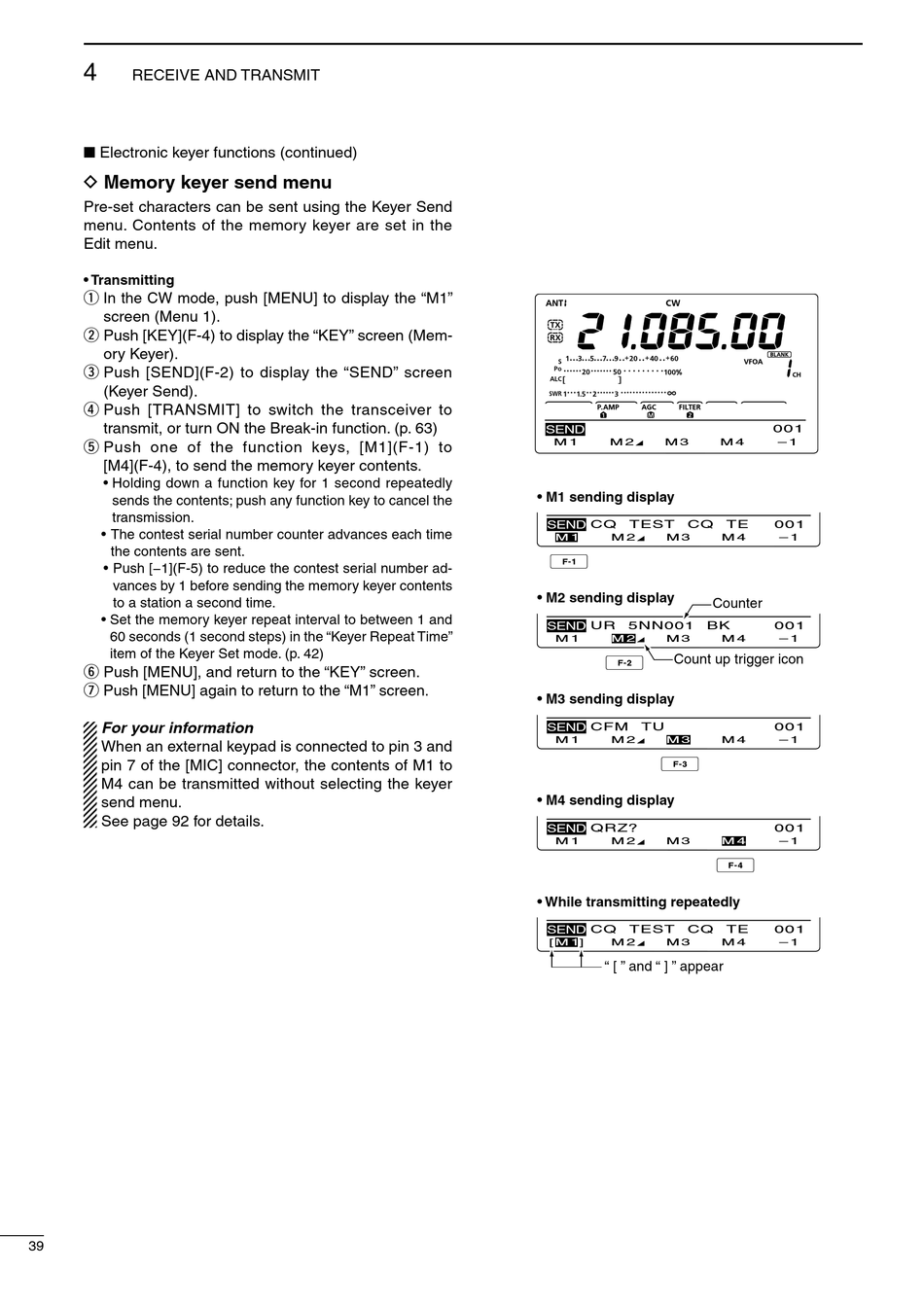

D Memory keyer send menu

Pre-set characters can be sent using the Keyer Send
menu. Contents of the memory keyer are set in the
Edit menu.
• Transmitting
q In the CW mode, push [MENU] to display the "M1"
screen (Menu 1).
w Push [KEY](F-4) to display the "KEY" screen (Mem-
ory Keyer).
e Push [SEND](F-2) to display the "SEND" screen
(Keyer Send).
r Push [TRANSMIT] to switch the transceiver to
transmit, or turn ON the Break-in function. (p. 63)
t Push one of the function keys, [M1](F-1) to
[M4](F-4), to send the memory keyer contents.
• Holding down a function key for 1 second repeatedly
sends the contents; push any function key to cancel the
transmission.
• The contest serial number counter advances each time
the contents are sent.
• Push [−1](F-5) to reduce the contest serial number ad-
vances by 1 before sending the memory keyer contents
to a station a second time.
• Set the memory keyer repeat interval to between 1 and
60 seconds (1 second steps) in the "Keyer Repeat Time"
item of the Keyer Set mode. (p. 42)
y Push [MENU], and return to the "KEY" screen.
u Push [MENU] again to return to the "M1" screen.
For your information
When an external keypad is connected to pin 3 and
pin 7 of the [MIC] connector, the contents of M1 to
M4 can be transmitted without selecting the keyer
send menu.
See page 92 for details.
39
SEND
M 1 M 2 M 3
• M1 sending display
CQ TEST CQ
SEND
M 1 M 2 M 3
• M2 sending display
UR 5NN001 BK
SEND
M 1 M 2 M 3
Count up trigger icon
• M3 sending display
CFM TU
SEND
M 1 M 2 M 3
• M4 sending display
QRZ?
SEND
M 1 M 2 M 3
• While transmitting repeatedly
CQ TEST CQ
SEND
[ M 1] M 2 M 3
" [ " and " ] " appear
001
M 4 – 1
TE 001
M 4 – 1
Counter
001
M 4 – 1
001
M 4 – 1
001
M 4 – 1
TE 001
M 4 – 1
