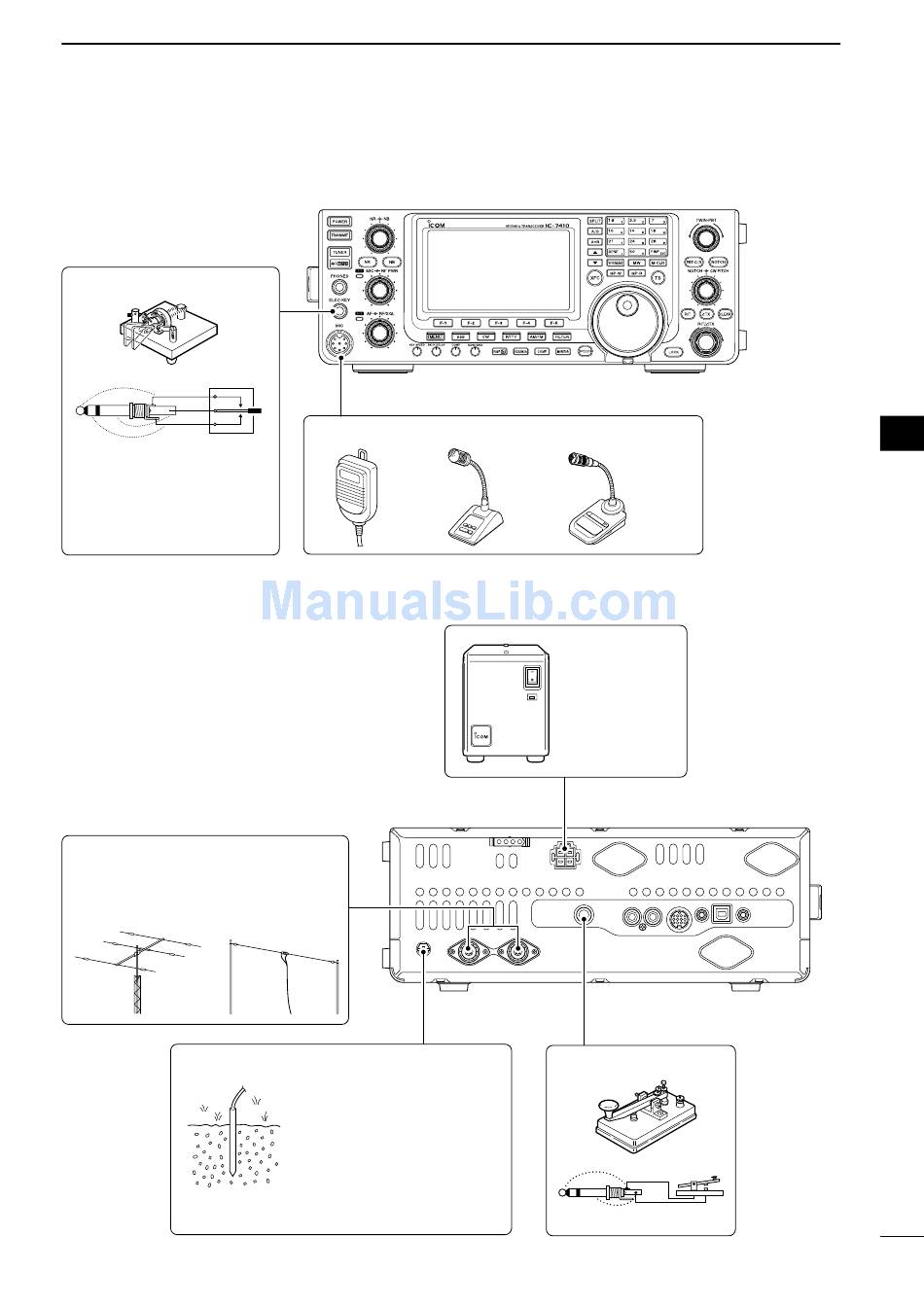

■ Required connections

D Front panel

ELEC-KEY
(dot)
(com)
(dash)
A straight key can be con-
nected. However, "Straight
key" must be selected in
the "Keyer Type" item of the
Keyer Set mode. (p. 43)

D Rear panel

HF/50MHz ANTENNA 1, 2 (p. 15)
Connection example:
[ANT 1] for 1.8–18 MHz bands antenna
[ANT 2] for 21–28 MHz bands antenna
GROUND (p. 15)
MICROPHONES (p. 22)
HM-36
Use the heaviest possible
gauge wire or strap and
make the connection as
short as possible.
Grounding prevents elec-
trical shocks, TVI and
other problems.
INSTALLATION AND CONNECTIONS
SM-50 SM-30
) )
(option (option
DC POWER
SUPPLY
(p. 19)
PS-126
STRAIGHT KEY
+
