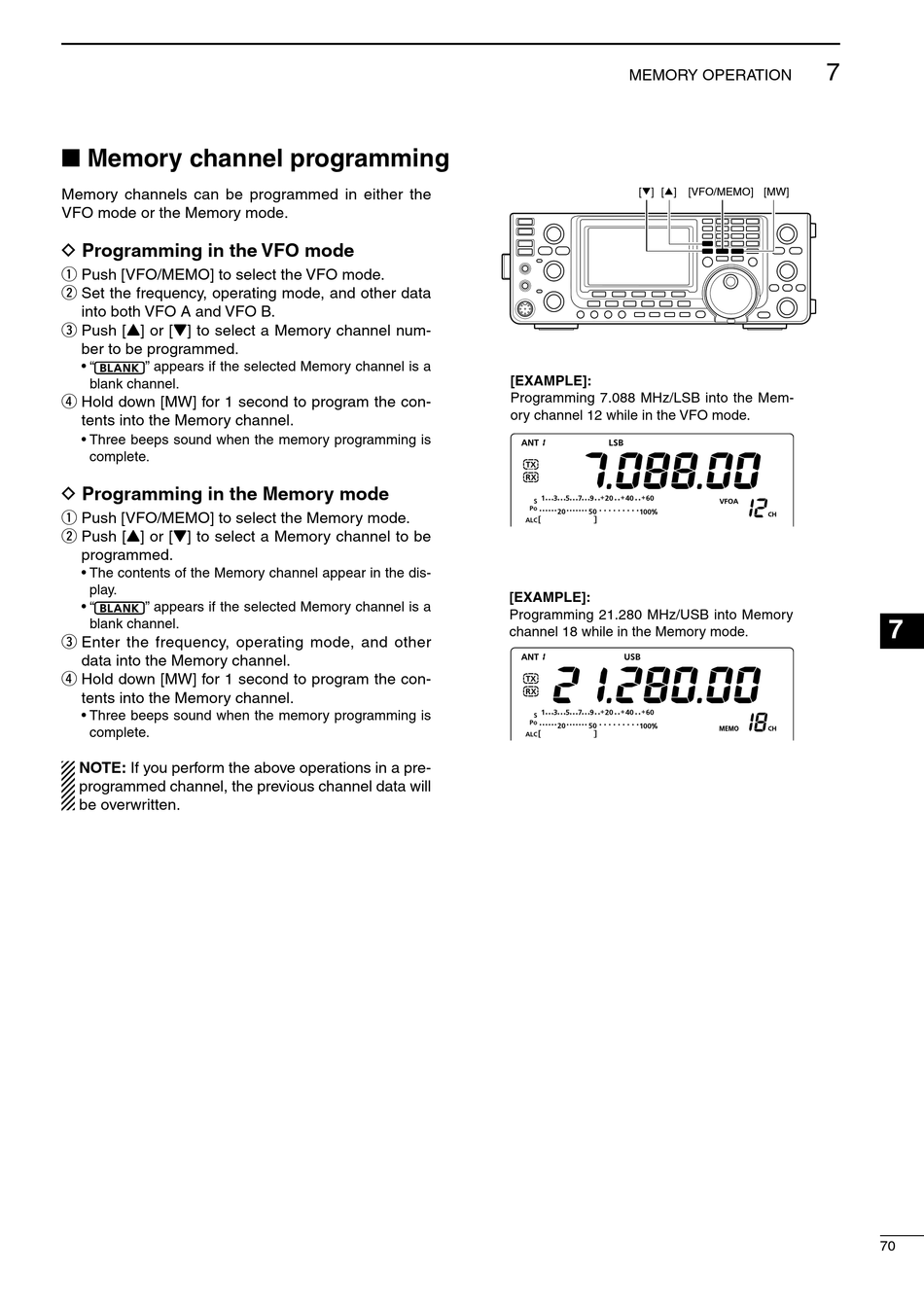

■ Memory channel programming

Memory channels can be programmed in either the
VFO mode or the Memory mode.

D Programming in the VFO mode

q Push [VFO/MEMO] to select the VFO mode.
w Set the frequency, operating mode, and other data
into both VFO A and VFO B.
e Push [Y] or [Z] to select a Memory channel num-
ber to be programmed.
• " " appears if the selected Memory channel is a
blank channel.
r Hold down [MW] for 1 second to program the con-
tents into the Memory channel.
• Three beeps sound when the memory programming is
complete.

D Programming in the Memory mode

q Push [VFO/MEMO] to select the Memory mode.
w Push [Y] or [Z] to select a Memory channel to be
programmed.
• The contents of the Memory channel appear in the dis-
play.
• " " appears if the selected Memory channel is a
blank channel.
e Enter the frequency, operating mode, and other
data into the Memory channel.
r Hold down [MW] for 1 second to program the con-
tents into the Memory channel.
• Three beeps sound when the memory programming is
complete.
NOTE: If you perform the above operations in a pre-
programmed channel, the previous channel data will
be overwritten.
MEMORY OPERATION
[√] [∫]
[EXAMPLE]:
Programming 7.088 MHz/LSB into the Mem-
ory channel 12 while in the VFO mode.
M1
A G C
[EXAMPLE]:
Programming 21.280 MHz/USB into Memory
channel 18 while in the Memory mode.
M1
A G C
7
[VFO/MEMO] [MW]
T B W S C P
T B W S C P
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
70
