3
BASIC OPERATION

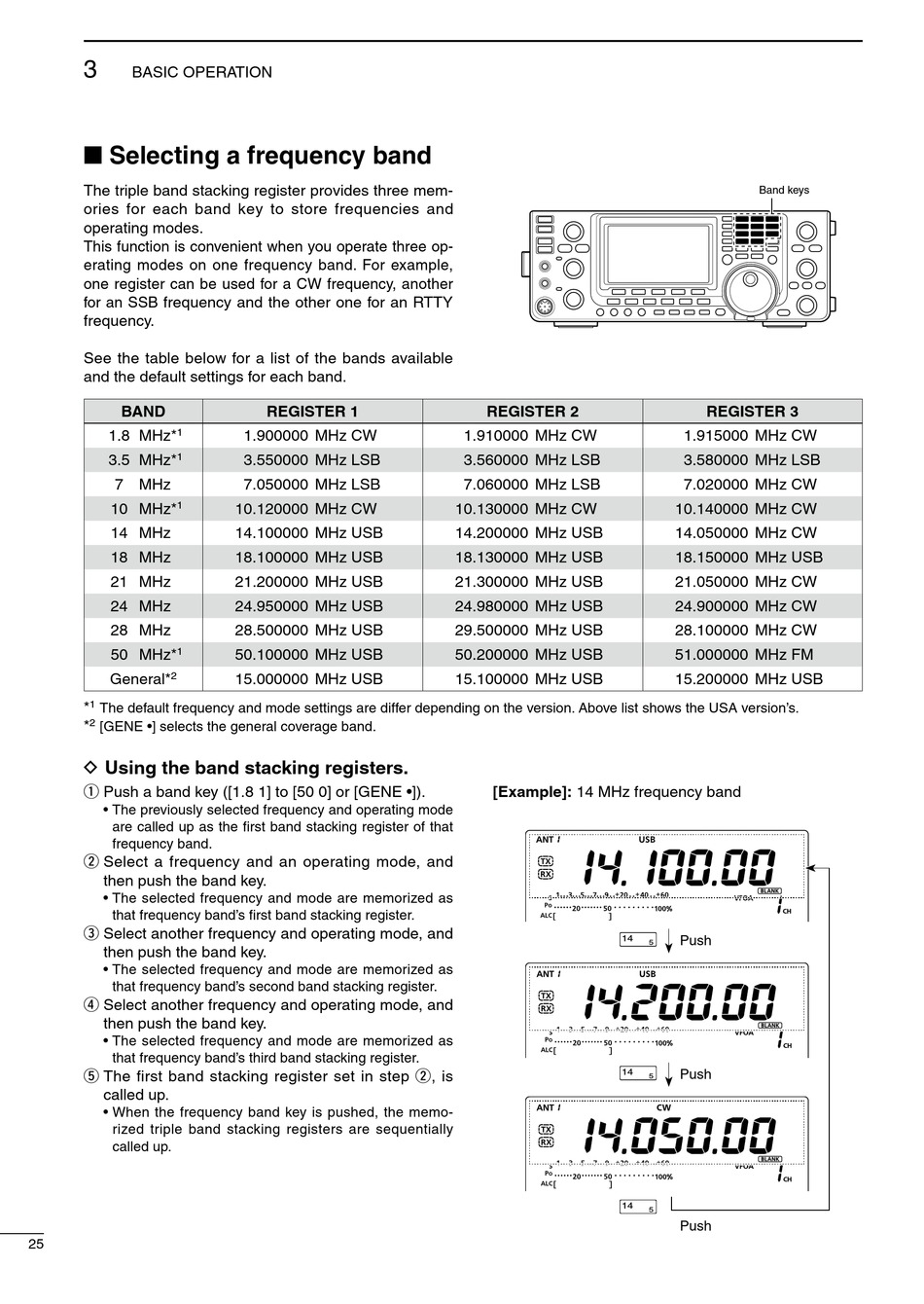

■ Selecting a frequency band

The triple band stacking register provides three mem-
ories for each band key to store frequencies and
operating modes.
This function is convenient when you operate three op-
erating modes on one frequency band. For example,
one register can be used for a CW frequency, another
for an SSB frequency and the other one for an RTTY
frequency.
See the table below for a list of the bands available
and the default settings for each band.
BAND
1.8 MHz* 1
3.5 MHz* 1
7 MHz
10 MHz* 1
14 MHz
18 MHz
21 MHz
24 MHz
28 MHz
50 MHz* 1
General* 2
* 1
The default frequency and mode settings are differ depending on the version. Above list shows the USA version's.
2
*
[GENE •] selects the general coverage band.

D Using the band stacking registers.

q Push a band key ([1.8 1] to [50 0] or [GENE •]).
• The previously selected frequency and operating mode
are called up as the first band stacking register of that
frequency band.
w Select a frequency and an operating mode, and
then push the band key.
• The selected frequency and mode are memorized as
that frequency band's first band stacking register.
e Select another frequency and operating mode, and
then push the band key.
• The selected frequency and mode are memorized as
that frequency band's second band stacking register.
r Select another frequency and operating mode, and
then push the band key.
• The selected frequency and mode are memorized as
that frequency band's third band stacking register.
t The first band stacking register set in step w, is
called up.
• When the frequency band key is pushed, the memo-
rized triple band stacking registers are sequentially
called up.
25
REGISTER 1
1.900000 MHz CW
3.550000 MHz LSB
7.050000 MHz LSB
10.120000 MHz CW
14.100000 MHz USB
18.100000 MHz USB
21.200000 MHz USB
24.950000 MHz USB
28.500000 MHz USB
50.100000 MHz USB
15.000000 MHz USB
REGISTER 2
1.910000 MHz CW
3.560000 MHz LSB
7.060000 MHz LSB
10.130000 MHz CW
14.200000 MHz USB
18.130000 MHz USB
21.300000 MHz USB
24.980000 MHz USB
29.500000 MHz USB
50.200000 MHz USB
15.100000 MHz USB
[Example]: 14 MHz frequency band
M1
A G C
M1
A G C D U P
M1
A G C D U P
Band keys
REGISTER 3
1.915000 MHz CW
3.580000 MHz LSB
7.020000 MHz CW
10.140000 MHz CW
14.050000 MHz CW
18.150000 MHz USB
21.050000 MHz CW
24.900000 MHz CW
28.100000 MHz CW
51.000000 MHz FM
15.200000 MHz USB
Push
T B W S C P
Push
C O M P T B W S C P
Push
C O M P T B W S C P
