10

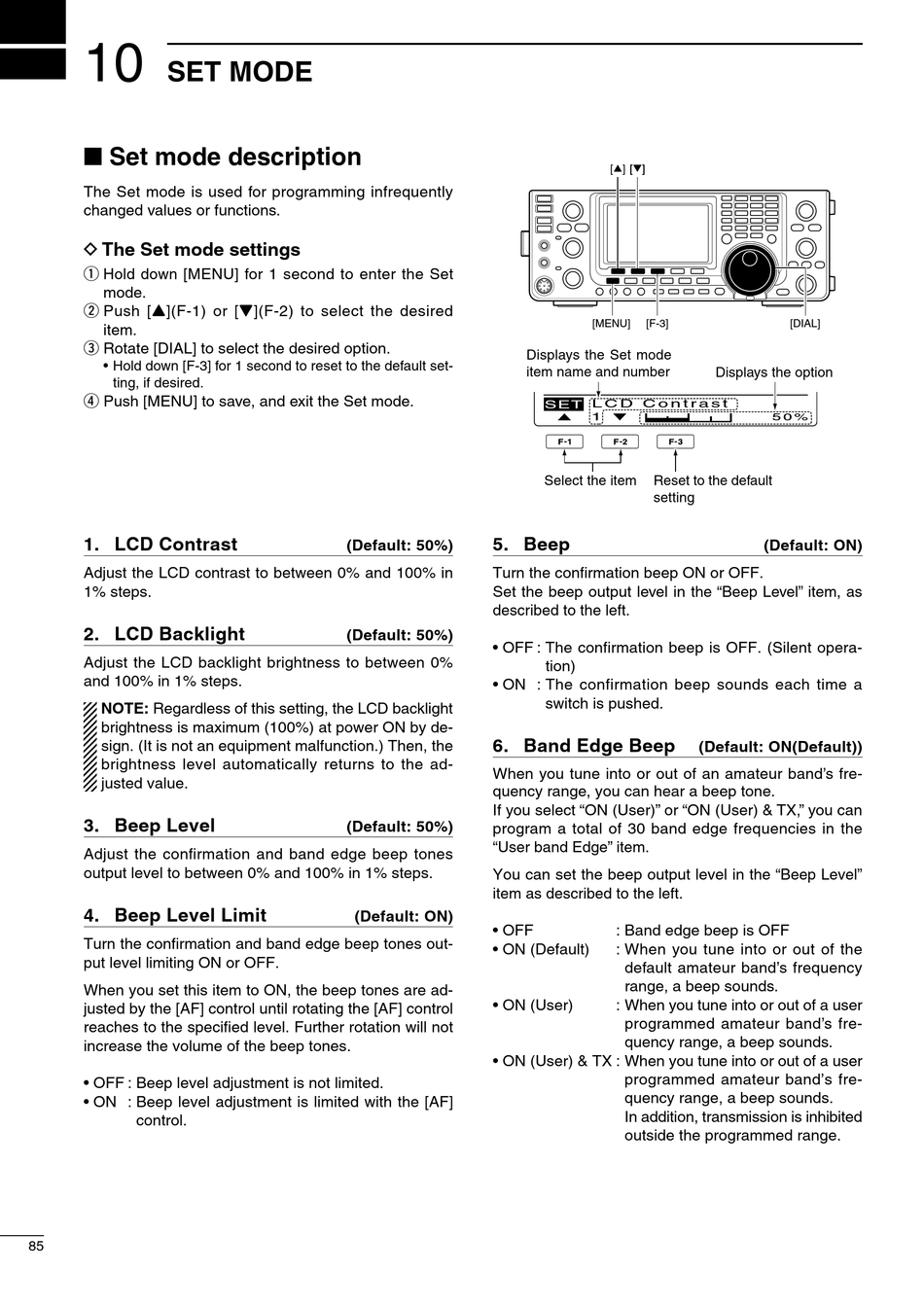

SET MODE

■ Set mode description

The Set mode is used for programming infrequently
changed values or functions.

D The Set mode settings

q Hold down [MENU] for 1 second to enter the Set
mode.
w Push [Y](F-1) or [Z](F-2) to select the desired
item.
e Rotate [DIAL] to select the desired option.
• Hold down [F-3] for 1 second to reset to the default set-
ting, if desired.
r Push [MENU] to save, and exit the Set mode.
1. LCD Contrast
Adjust the LCD contrast to between 0% and 100% in
1% steps.
2. LCD Backlight
Adjust the LCD backlight brightness to between 0%
and 100% in 1% steps.
NOTE: Regardless of this setting, the LCD backlight
brightness is maximum (100%) at power ON by de-
sign. (It is not an equipment malfunction.) Then, the
brightness level automatically returns to the ad-
justed value.
3. Beep Level
Adjust the confirmation and band edge beep tones
output level to between 0% and 100% in 1% steps.
4. Beep Level Limit
Turn the confirmation and band edge beep tones out-
put level limiting ON or OFF.
When you set this item to ON, the beep tones are ad-
justed by the [AF] control until rotating the [AF] control
reaches to the specified level. Further rotation will not
increase the volume of the beep tones.
• OFF : Beep level adjustment is not limited.
• ON : Beep level adjustment is limited with the [AF]
control.
85
5.
(Default: 50%)
Turn the confirmation beep ON or OFF.
Set the beep output level in the "Beep Level" item, as
described to the left.
(Default: 50%)
• OFF : The confirmation beep is OFF. (Silent opera-
• ON : The confirmation beep sounds each time a
6.
When you tune into or out of an amateur band's fre-
quency range, you can hear a beep tone.
If you select "ON (User)" or "ON (User) & TX," you can
(Default: 50%)
program a total of 30 band edge frequencies in the
"User band Edge" item.
You can set the beep output level in the "Beep Level"
item as described to the left.
(Default: ON)
• OFF
• ON (Default)
• ON (User)
• ON (User) & TX : When you tune into or out of a user
[∫] [√] [√]
[MENU] [F-3]
Displays the Set mode
item name and number
L C D C o n t r a s t
SET
1
Ù Ú
Select the item Reset to the default
setting
Beep
tion)
switch is pushed.
Band Edge Beep
: Band edge beep is OFF
: When you tune into or out of the
default amateur band's frequency
range, a beep sounds.
: When you tune into or out of a user
programmed amateur band's fre-
quency range, a beep sounds.
programmed amateur band's fre-
quency range, a beep sounds.
In addition, transmission is inhibited
outside the programmed range.
[DIAL]
Displays the option
5 0 %
(Default: ON)
(Default: ON(Default))
