4
RECEIVE AND TRANSMIT

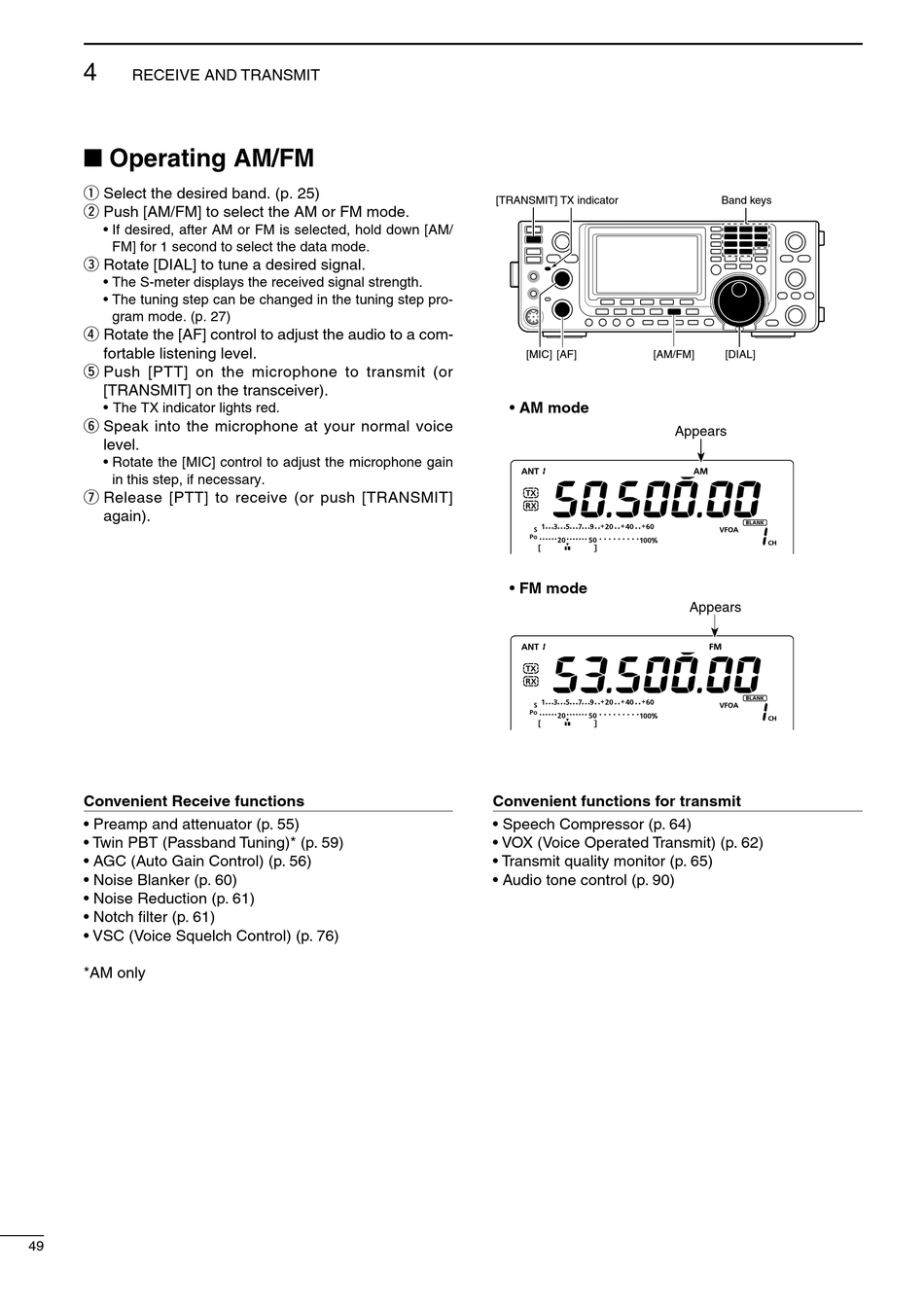

■ Operating AM/FM

q Select the desired band. (p. 25)
w Push [AM/FM] to select the AM or FM mode.
• If desired, after AM or FM is selected, hold down [AM/
FM] for 1 second to select the data mode.
e Rotate [DIAL] to tune a desired signal.
• The S-meter displays the received signal strength.
• The tuning step can be changed in the tuning step pro-
gram mode. (p. 27)
r Rotate the [AF] control to adjust the audio to a com-
fortable listening level.
t Push [PTT] on the microphone to transmit (or
[TRANSMIT] on the transceiver).
• The TX indicator lights red.
y Speak into the microphone at your normal voice
level.
• Rotate the [MIC] control to adjust the microphone gain
in this step, if necessary.
u Release [PTT] to receive (or push [TRANSMIT]
again).
Convenient Receive functions
• Preamp and attenuator (p. 55)
• Twin PBT (Passband Tuning)* (p. 59)
• AGC (Auto Gain Control) (p. 56)
• Noise Blanker (p. 60)
• Noise Reduction (p. 61)
• Notch filter (p. 61)
• VSC (Voice Squelch Control) (p. 76)
*AM only
49
[TRANSMIT] TX indicator
[MIC] [AF] [AM/FM]
• AM mode
M1
A G C
• FM mode
RTTY Mark
SET
√ ∫
1
RTTY Mark
SET
√ ∫
1
Convenient functions for transmit
• Speech Compressor (p. 64)
• VOX (Voice Operated Transmit) (p. 62)
• Transmit quality monitor (p. 65)
• Audio tone control (p. 90)
Band keys
[DIAL]
Appears
Appears
T B W S C P
Freq
Appears
2 1 2 5
Freq
2 1 2 5
