INSTALLATION AND CONNECTIONS

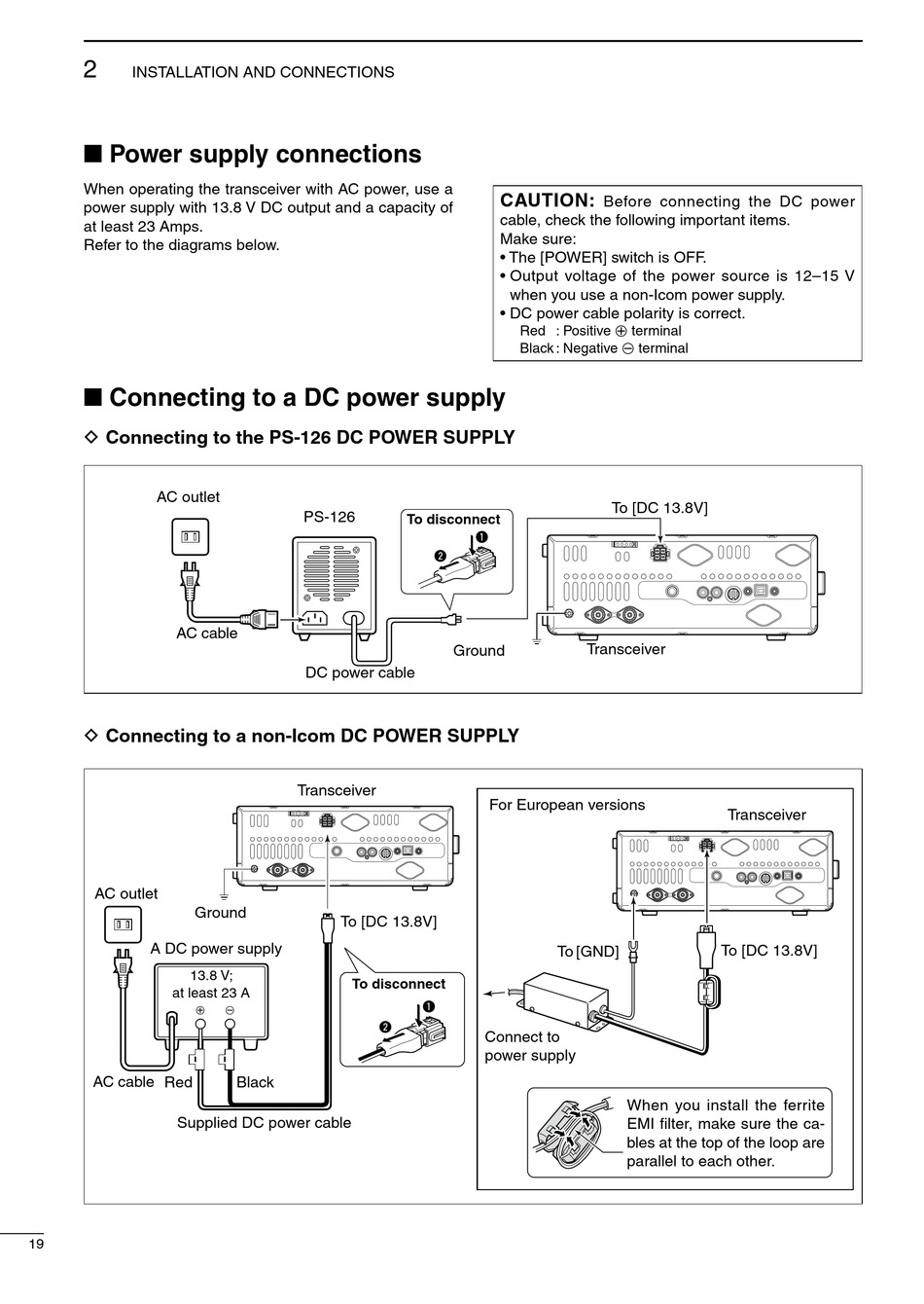

■ Power supply connections

When operating the transceiver with AC power, use a
power supply with 13.8 V DC output and a capacity of
at least 23 Amps.
Refer to the diagrams below.

■ Connecting to a DC power supply

D Connecting to the PS-126 DC POWER SUPPLY

AC outlet
AC cable

D Connecting to a non-Icom DC POWER SUPPLY

AC outlet
Ground
A DC power supply
13.8 V;
at least 23 A
+
AC cable
Red
Supplied DC power cable
19
PS-126
DC power cable
Transceiver
To [DC 13.8V]
To disconnect
_
w
Black
CAUTION:
cable, check the following important items.
Make sure:
• The [POWER] switch is OFF.
• Output voltage of the power source is 12–15 V
when you use a non-Icom power supply.
• DC power cable polarity is correct.
Red : Positive + terminal
Black : Negative _ terminal
To disconnect
q
w
Ground
For European versions
To [GND]
q
Connect to
power supply
Before connecting the DC power
To [DC 13.8V]
Transceiver
Transceiver
To [DC 13.8V]
When you install the ferrite
EMI filter, make sure the ca-
bles at the top of the loop are
parallel to each other.
