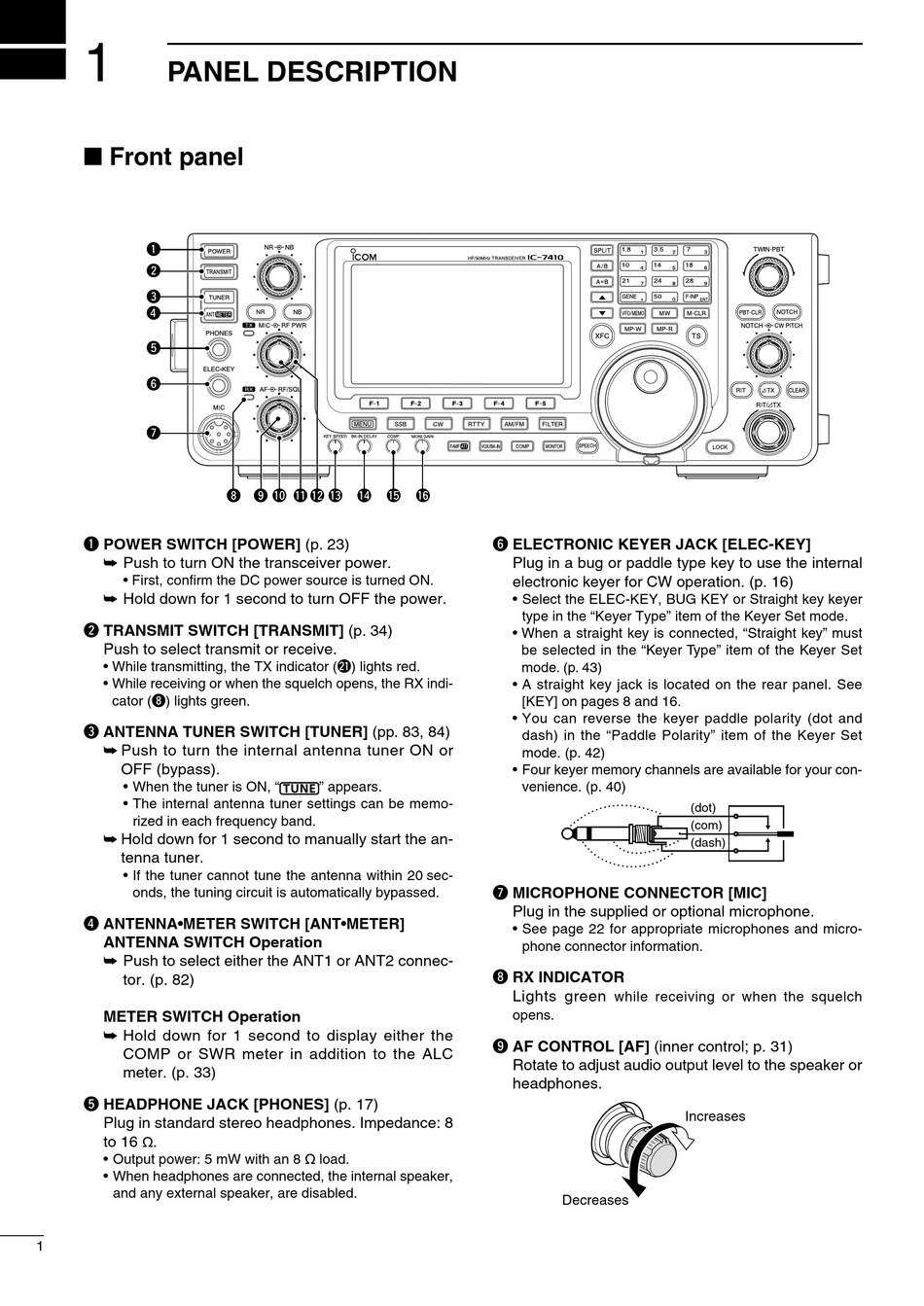

PANEL DESCRIPTION

■ Front panel

q
w
e
r
t
y
u
q POWER SWITCH [POWER] (p. 23)
➥ Push to turn ON the transceiver power.
• First, confirm the DC power source is turned ON.
➥ Hold down for 1 second to turn OFF the power.
w TRANSMIT SWITCH [TRANSMIT] (p. 34)
Push to select transmit or receive.
• While transmitting, the TX indicator (@1 ) lights red.
• While receiving or when the squelch opens, the RX indi-
cator (i) lights green.
e ANTENNA TUNER SWITCH [TUNER] (pp. 83, 84)
➥ Push to turn the internal antenna tuner ON or
OFF (bypass).
• When the tuner is ON, "
• The internal antenna tuner settings can be memo-
rized in each frequency band.
➥ Hold down for 1 second to manually start the an-
tenna tuner.
• If the tuner cannot tune the antenna within 20 sec-
onds, the tuning circuit is automatically bypassed.
r ANTENNA•METER SWITCH [ANT•METER]
ANTENNA SWITCH Operation
➥ Push to select either the ANT1 or ANT2 connec-
tor. (p. 82)
METER SWITCH Operation
➥ Hold down for 1 second to display either the
COMP or SWR meter in addition to the ALC
meter. (p. 33)
t HEADPHONE JACK [PHONES] (p. 17)
Plug in standard stereo headphones. Impedance: 8
to 16 .
ø
• Output power: 5 mW with an 8 ø load.
• When headphones are connected, the internal speaker,
and any external speaker, are disabled.
1
i o !0 !1 !2 !3 !4 !5
" appears.
!6
y ELECTRONIC KEYER JACK [ELEC-KEY]
Plug in a bug or paddle type key to use the internal
electronic keyer for CW operation. (p. 16)
• Select the ELEC-KEY, BUG KEY or Straight key keyer
type in the "Keyer Type" item of the Keyer Set mode.
• When a straight key is connected, "Straight key" must
be selected in the "Keyer Type" item of the Keyer Set
mode. (p. 43)
• A straight key jack is located on the rear panel. See
[KEY] on pages 8 and 16.
• You can reverse the keyer paddle polarity (dot and
dash) in the "Paddle Polarity" item of the Keyer Set
mode. (p. 42)
• Four keyer memory channels are available for your con-
venience. (p. 40)
u MICROPHONE CONNECTOR [MIC]
Plug in the supplied or optional microphone.
• See page 22 for appropriate microphones and micro-
phone connector information.
i RX INDICATOR
Lights green
opens.
o AF CONTROL [AF] (inner control; p. 31)
Rotate to adjust audio output level to the speaker or
headphones.
Decreases
(dot)
(com)
(dash)
while receiving or when the squelch
Increases
